QNAP ES1640dc - Rear Panel Features

17
Power Supply
Battery Backup
Unit
Power Supply
Battery Backup
Unit

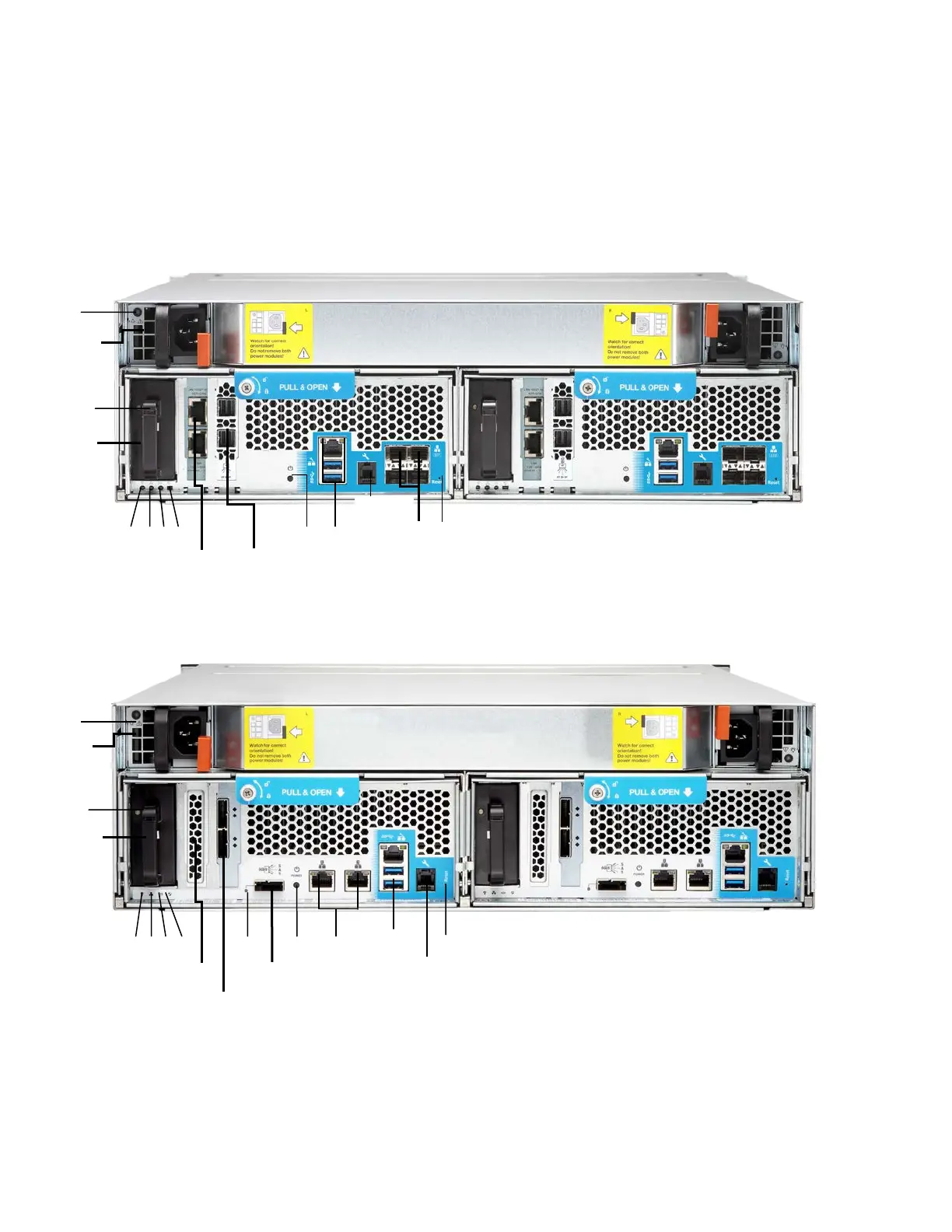

Rear Panel Features
The rear panel consists of two Storage Controllers, both including I/O expansion slots, Ethernet ports,
USB connectors, onboard mini-SAS ports, a SAS HBA, the Storage Controller power-on button, a reset
button, the system management port and the BBU.
ES1640dc v2:
ES1640dc:
Note: USB 3.0 Ports are for development and debug only.
③④⑤⑥ ⑦ ⑧ ⑨ ⑩ ⑪ Reset
②
①
PCIe slot
1GbE
Port
USB 3.0
Ports
Service Port
mini-SAS
Ports
(HBA)
Onboard
mini-SAS
10GbE
Ports
①
②
③④⑤⑥ ⑧ ⑩ ⑨ ⑪ Reset
⑫
⑬
Service
Port
1GbE
Port
USB 3.0
Ports
