QNAP TS-1263U-RP User Manual

51
11. Connect the power adaptor and cables to the NAS.
12. To check that the network expansion is recognized by the NAS, power up the NAS and
login the web interface as an administrator. Go to “System Administration” > “Network”
> “TCP/IP” and check the total number of network interfaces.
6.3 TS-863U, TS-863U-RP, TS-1263U, TS-1263U-RP
1. Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other
connectors or cables from the NAS.
2. Before installing the network expansion card, put on an antistatic wrist strap to
prevent electrostatic discharge. The crocodile clip should be connected to the ground.

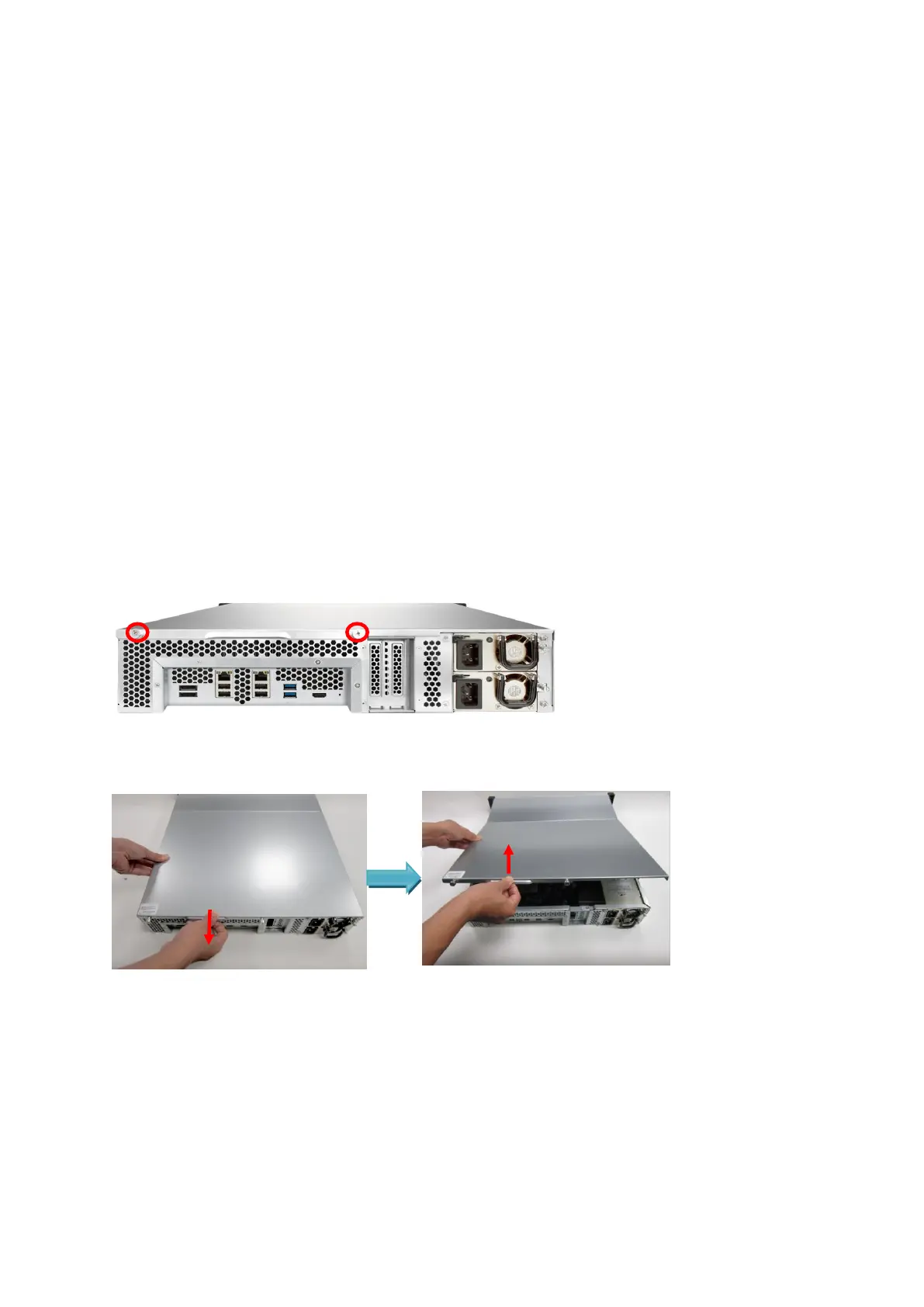

3. Loosen the two screws on the rear of the NAS.
4. Hold the notch at the edge of the top cover. Remove the top cover in both hands.
5. Loosen the screw and remove the expansion slot cover.
