QNAP TS-212P User Manual

42

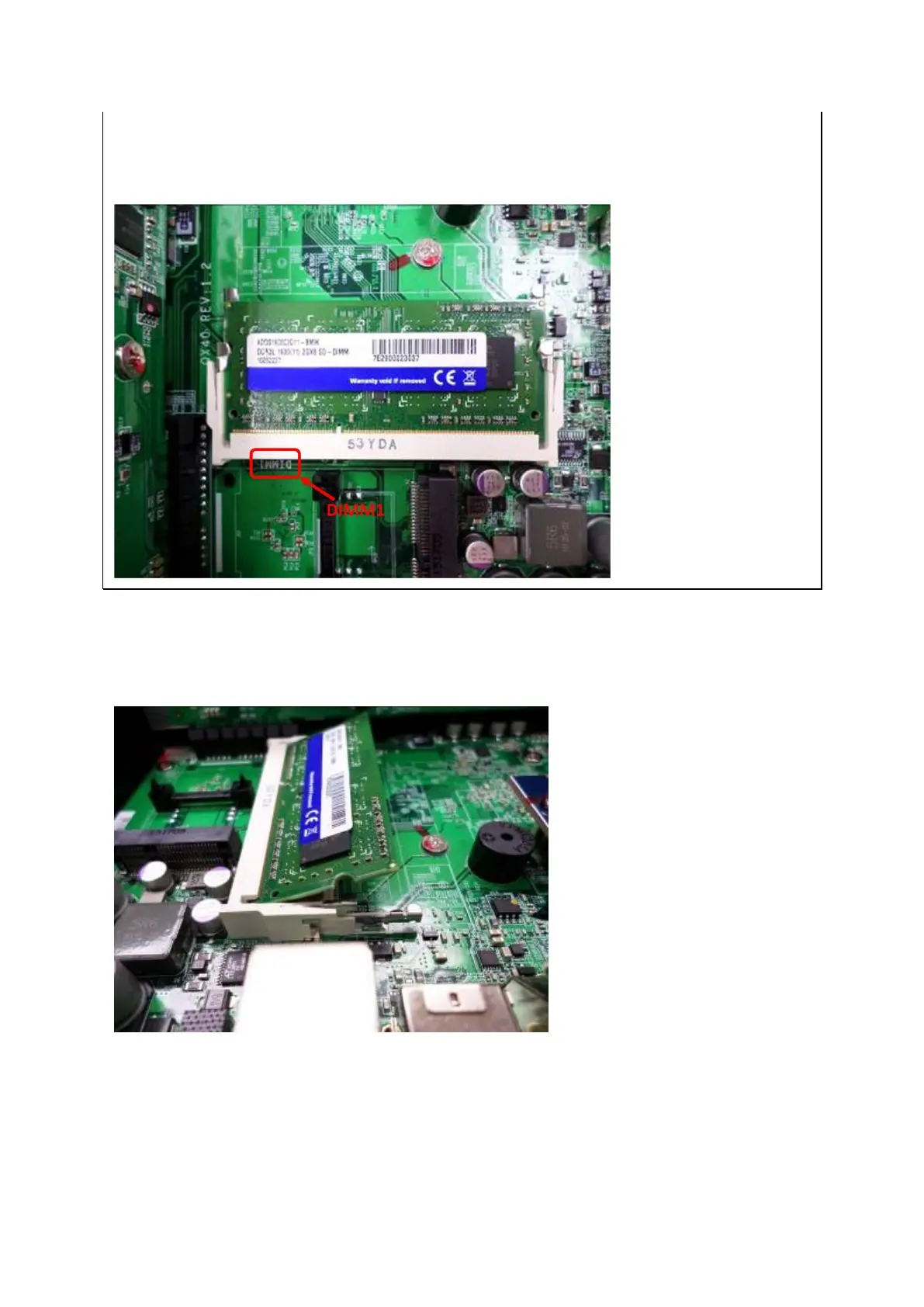

on the top (marked with “DIMM1”.) If not, then the system will fail to start. When
installing two memory modules, please ensure that they are the same size and ideally use
the same type/model for both slots.
3. Slide the memory module to the slot at a 45-degree angle (approximately) and press
the memory module down until it clips into place. Ensure the memory module sits
properly with the clips in place.
4. Close the NAS bottom cover and fasten the screws (refer to Step 1 for screw positions.)
Reconnect the power and network cables to the NAS.

QNAP TS-212P Specifications

General

RAID levels	0, 1, JBOD
RAID support	Yes
Storage drive capacity	8 GB
Storage drive interface	Serial ATA II
Storage drives installed	No
Installed storage drive type	-
Supported storage drive types	HDD
Total installed storage capacity	0 TB
Maximum supported storage capacity	8 TB
Number of storage drives installed	0
Number of storage drives supported	2
Processor family	Marvell
Processor frequency	1.66 GHz
Flash memory	16 MB
Internal memory	512 GB
Internal memory type	DDR3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Product color	White
Type	NAS
Power consumption (sleep)	6 W
Power consumption (typical)	13 W

Weight and Dimensions

Depth	218.4 mm
Width	85 mm
Height	165.5 mm
Weight	910 g
Package weight	2200 g
