12
Setup Overview

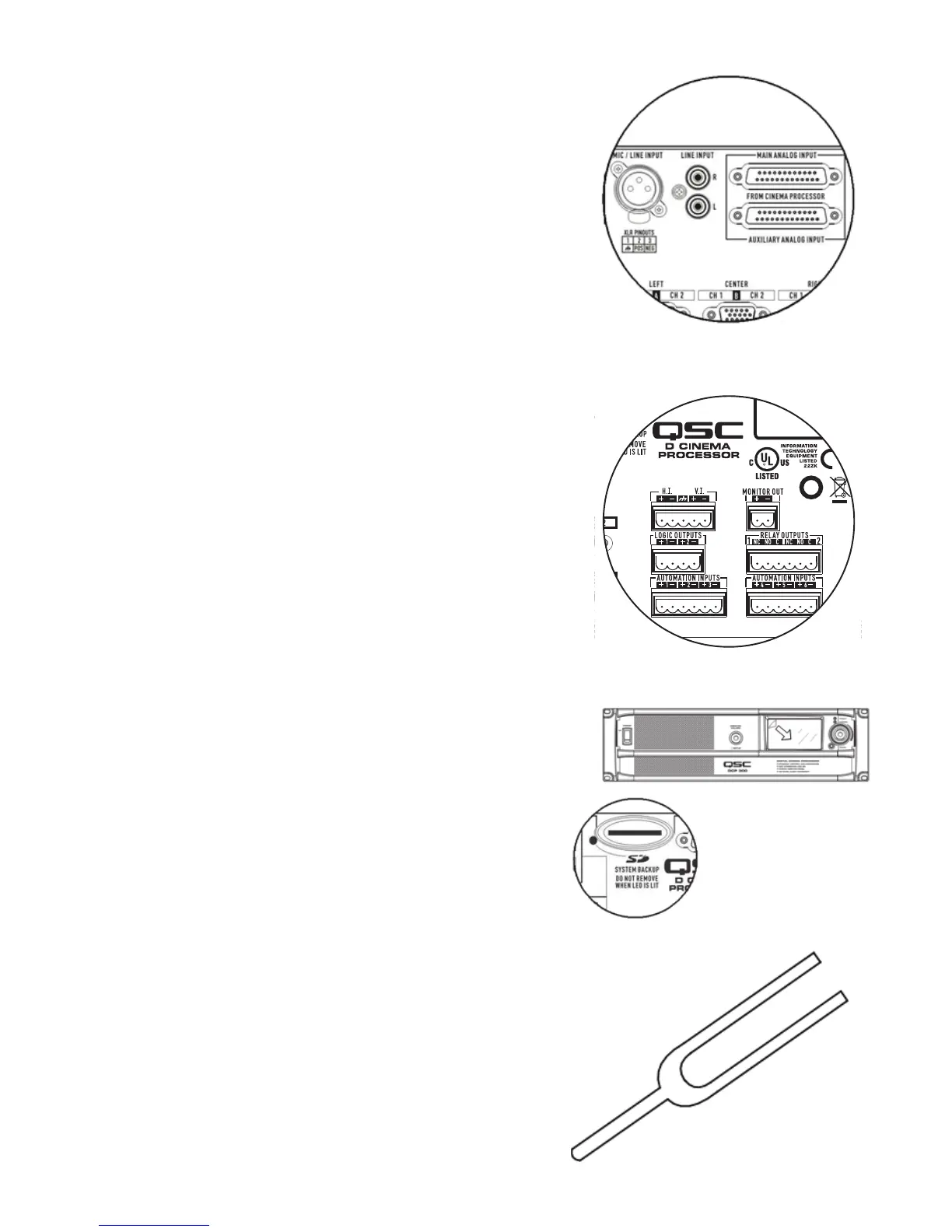

5. Connect Audio
Connect cinema audio sources to the appropriate DCP rear panel input connectors. Main
sources can come from digital content servers or analog fi lm processors. Additional analog
and digital inputs are provided for alternative content sources, live feeds, DVD players, mic/
paging sources etc.
Connect the Hearing Impaired and Visually Impaired special mix outputs and/or the
Monitor Output feed to appropriate external devices as needed.
6. Connect Automation
Connect appropriate external control devices to the DCP’s automation Inputs. Connect the
Logic Outputs and/or Relay Outputs to any external devices to be controlled.
7. Complete Installation
Remove protective fi lm covering the touch panel LCD surface. Insert the included SD Card
into the rear panel receptacle. The SD Card provides DCP confi guration storage for quick
unit service/replacement.
8. Tune System
Once the basic DCP operating confi guration is defi ned and all of the connections are in
place, it’s time to power up the rest of the rack, complete the DSP setup, tune the system
and run through fi nal check.
Refer to additional information in this Hardware User Manual and in the software Help
Files for further setup and confi guration details to complete this step.
