PANEL
IDENTIFIERS

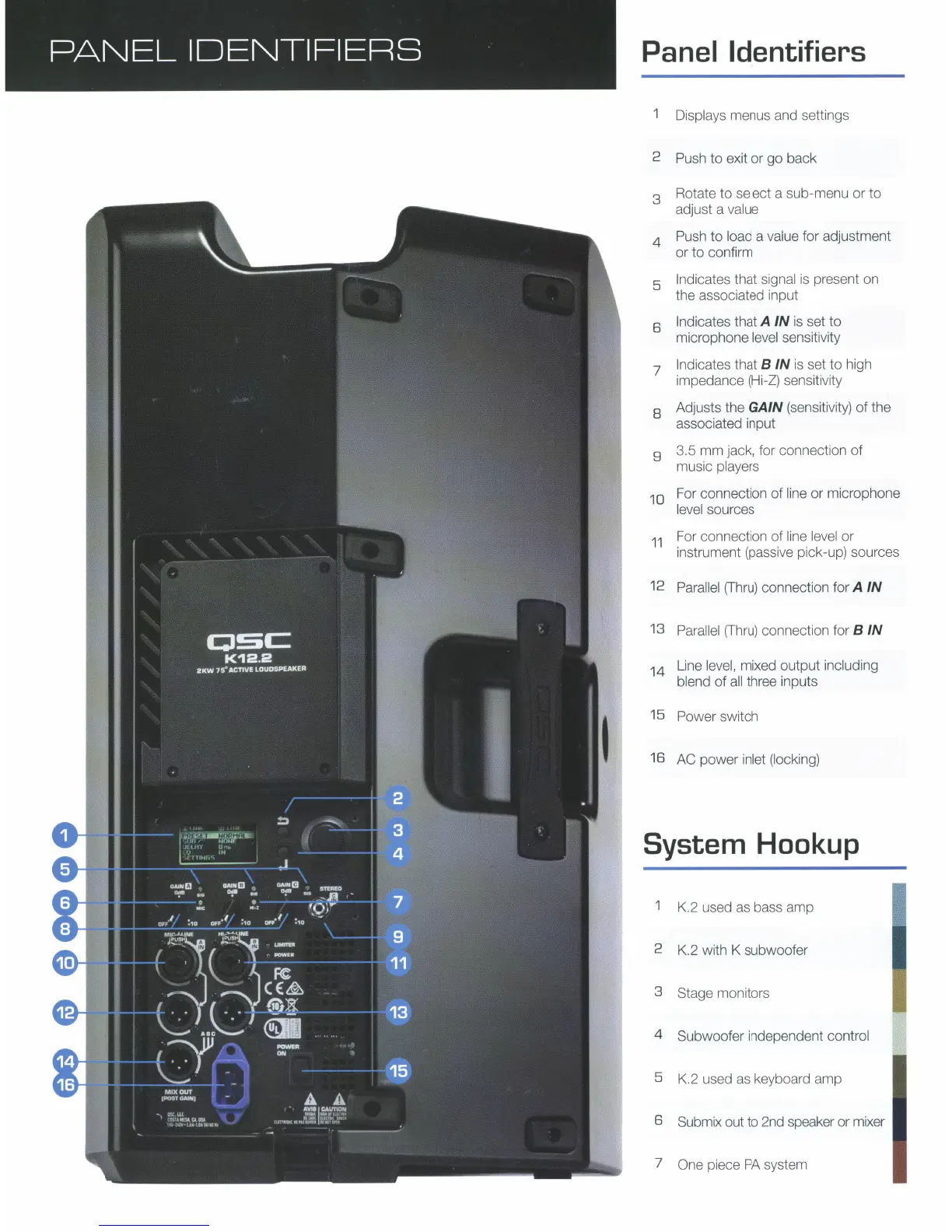

Panel Identifiers
Displays menus and settings
2
Push to exit or go back
3
Rotate to select a sub-menu or to
adjust a value
4
Push to load a value for adjustment
or to confirm
5
Indicates
that signal
is
present on
the associated input
6
Indicates
that
A
IN
is
set to
microphone
level
sensitivity
7
Indicates
that
B
IN
is
set to high
impedance
(Hi-Z)
sensitivity
8
Adjusts the
GAIN
(sensitivity) of the
associated input
9
3.5 mm jack, for connection of
music players
10
For connection of
line
or microphone
level
sources
11
For connection of
line
level
or
instrument (passive pick-up) sources
12
Parallel
(Thru)
connection for
A
IN
13
Parallel
(Thru)
connection for
B
IN
14
Line level, mixed output including
blend of
all
three inputs
15
Power switch
16
AC power inlet (locking)
System Hookup
K.2 used as bass amp
2 K.2 with K subwoofer
3 Stage monitors
4 Subwoofer independent control
5 K.2 used as keyboard amp
6 Submix out to 2nd speaker or mixer
7
One
piece
PA
system
