QSC K10.2 Mounting Quick Start Guide

EN
2
TD-000524-00-A
Warranty
For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com
Yoke Mounting the K.2 Series Loudspeakers
WARNING!: Read and follow these instructions carefully. If the loudspeakers are not installed properly, they could fall,
causing personal injury or death, and damage to the equipment.
Rules for Mounting
• Consult a Professional Mechanical or Structural Engineer, licensed in the
jurisdiction of the sound system installation, to review, verify, and approve all
attachments to the building or structure.
• Employ the services of a Professional Rigger for hoisting, positioning, and
attaching the equipment to the supporting structure.
• Correct use of all mounting hardware and components is imperative in sound system installation and deployment.
• Consult local codes and regulations to fully understand the requirements for installed loads in the venue in which you
will install theequipment.
• Use only the recommended yoke for installing the loudspeaker.
• Be absolutely certain of the integrity of any structural member intended to support the loudspeaker(s). Hidden
structural members can have hidden structural weakness.
• Never assume anything! Owner or third-party supplied attachment points may not be adequate for installing
theloudspeakers.
• Before lifting, always inspect all components (enclosures, brackets, pins, frames, bolts, nuts, etc.) for cracks, wear,
deformation, corrosion, missing, loose, or damaged parts that could reduce the strength of the assembly. Discard any
worn, defective, or suspect parts and replace them with new appropriately load-rated parts.
Yoke Mounting
Each model has four yoke-mounting points, one on each side, one on top, and one on the bottom of the enclosure. The
bottom mounting point requires the pole-cup adapter included in the Yoke Mounting kit.
Yoke Installation Options

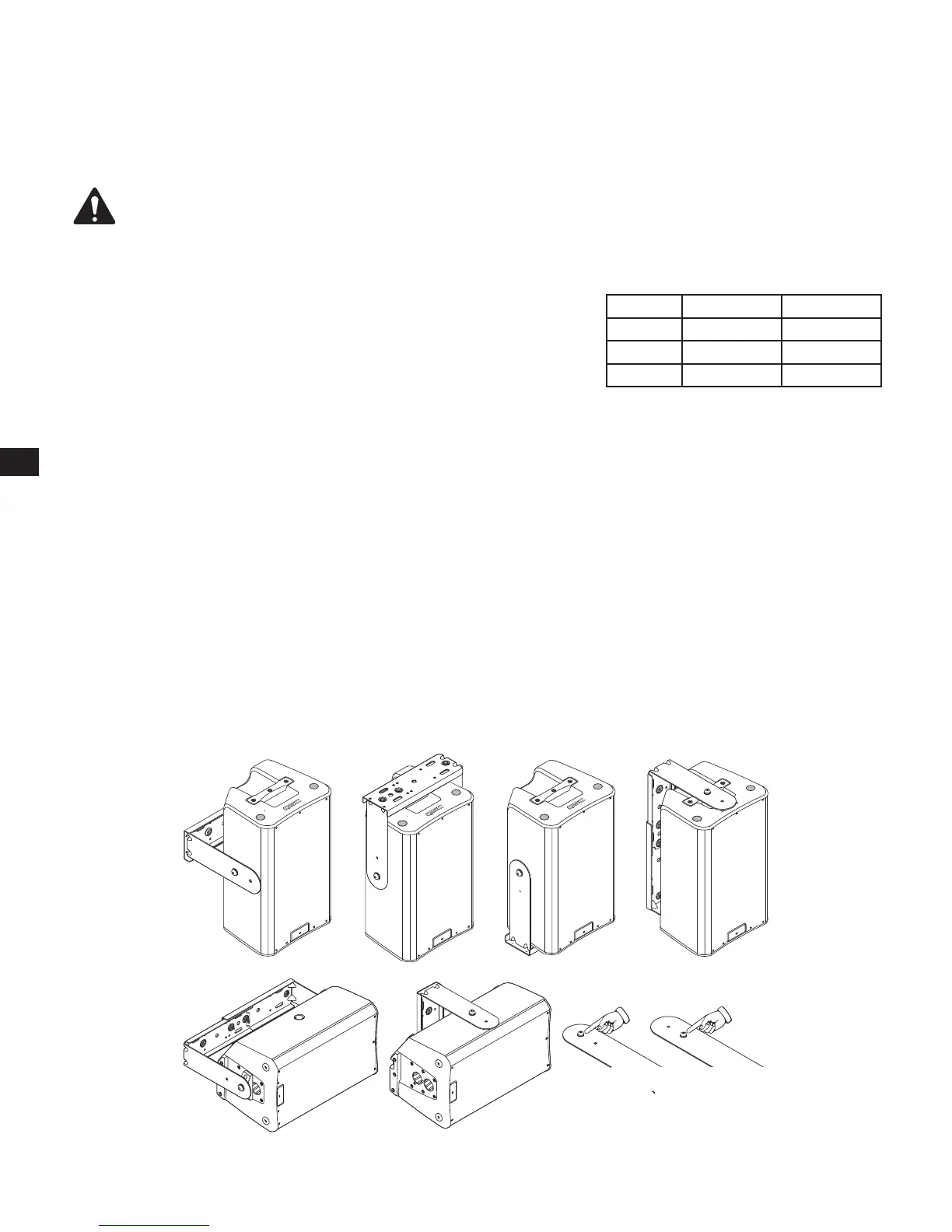

— Figure 1 —
Adjustable distance from the
mounting surface.
Model Weight (kg) Weight (lbs)
K8.2 12.2 27
K10.2 14.5 32
K12.2 17. 7 39
