Wiring the Remote Attenuator

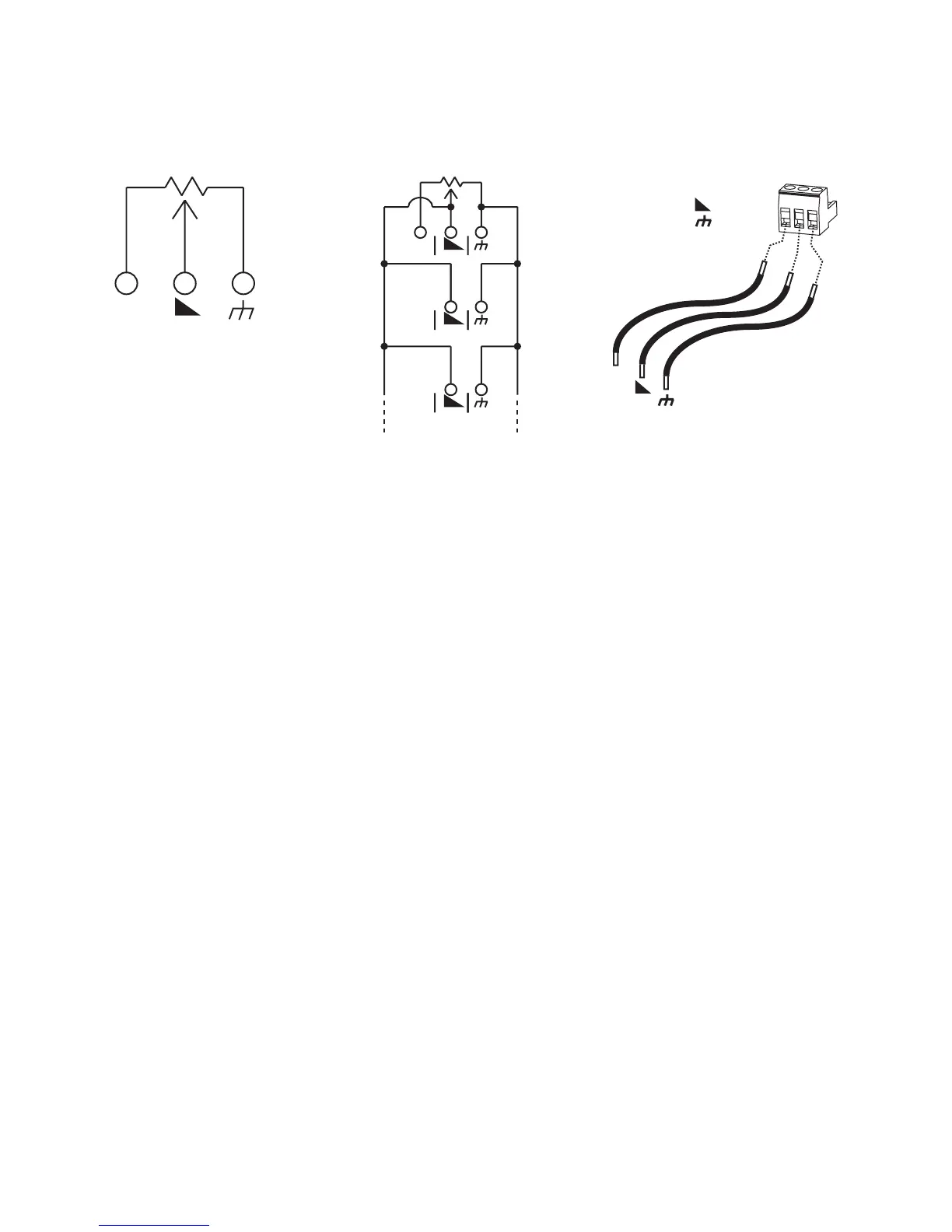

Wire the Remote Gain Attenuator as shown in Figure 35.
• When using a single potentiometer for a Single Loudspeaker (A).
• When using a single potentiometer for Multiple Loudspeakers (B).
• Proper Wiring to the 3 pin “Euro” connector (C).
— Figure 38 —
Single Loudspeaker
+5V
A
+5V
Multiple Loudspeakers
B
1
2
3
1 = +5V
2 =
3 =
Proper Wiring
+5V
C
