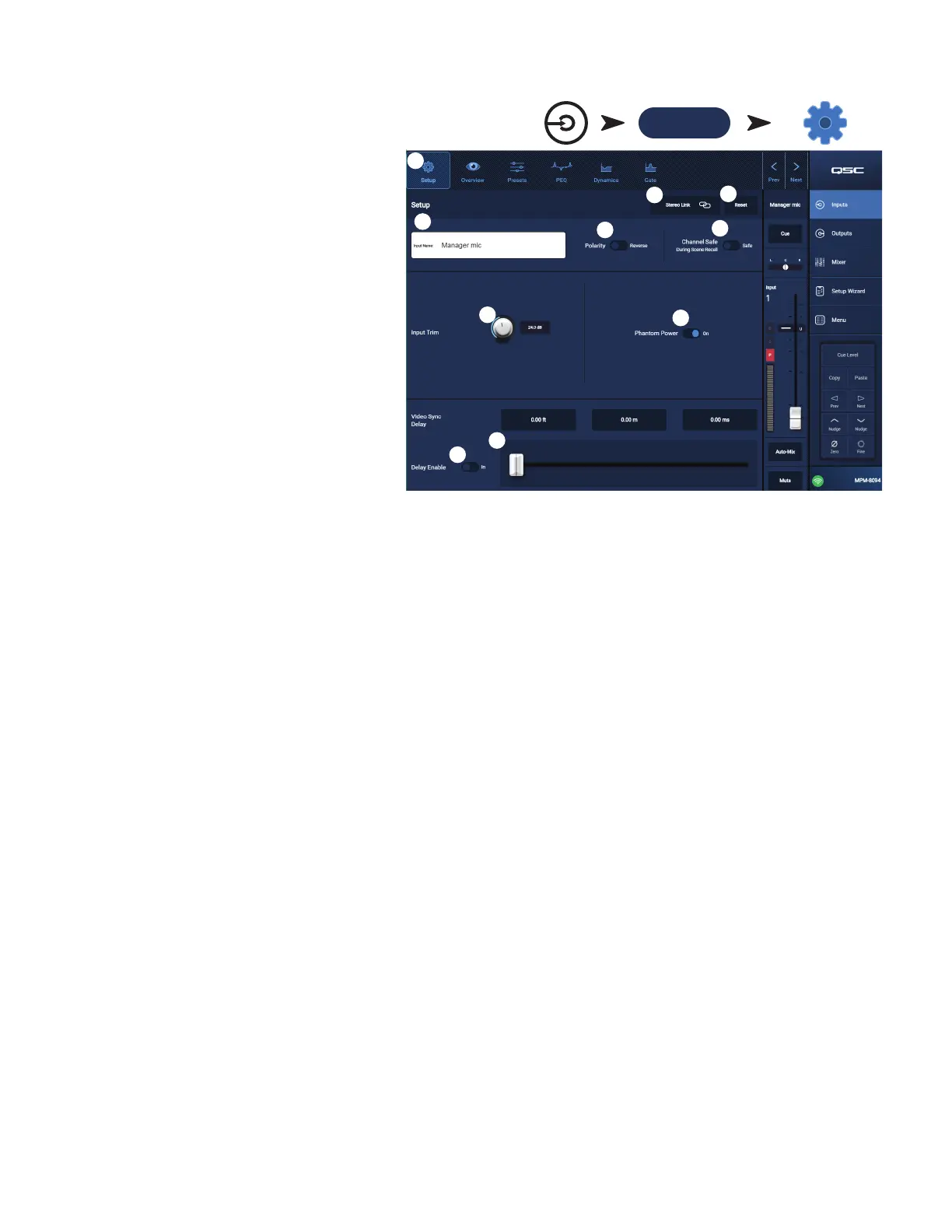

Input Channel − Setup
The setup screen includes a number of functions that are
primarily “set once and forget”. Channel Setup is provided
for all input channels.
1. Setup button – Selects the Setup screen.
2. Stereo Link button – Links / unlinks adjacent
channels for stereo operation. The odd numbered
channel settings are copied to the even numbered
channel. Pan settings are mirrored. Only odd/even
linking is supported (1-2, 3-4, etc.). Even/odd linking
(2-3, 4-5) is not available.
3. Reset button – Returns all Setup settings, for this
channel, to default values.
4. Input Name field – Displays the name of the channel.
Touch to display a keyboard and rename the channel
with a “friendly name”. Use only upper and lower case
alpha characters.
5. Polarity switch – Inverts the polarity of the
inputsignal.
6.
Channel Safe During Scene Recall switch – When
set to Safe, the channel will not be affected by a
scenerecall.
7. Input Trim knob – Adjusts the input sensitivity for the
Mic/Line channels. Not available on the USB Player or Wifi Paging.
8. Phantom Power switch – Turns phantom power on or off for the channel (Mic/Line input channels only). (available on MP-M80 channels1-8
and on MP-M40 channels 1-4)
9. Video Sync Delay slider – Video Sync Delay allows the audio to be delayed by up to 100 milliseconds. The delay value is also displayed in feet
and meters. This feature is typically used to compensate for “lip flap” which occurs when the latency of a video signal is greater than that of the
accompanying audio.
10. Delay Enable switch – Engages or disengages the Video Sync Delay.
Inputs
Touch an
Input Bank
Touch a Channel
Setup Button
Mic/Line
(RCA / More)
3
4
1
10
9
6
8
5
2
7
