QSC MP-M80 - MP-M Hardware Overview

2
TD-001578-01-C
MP-M Hardware

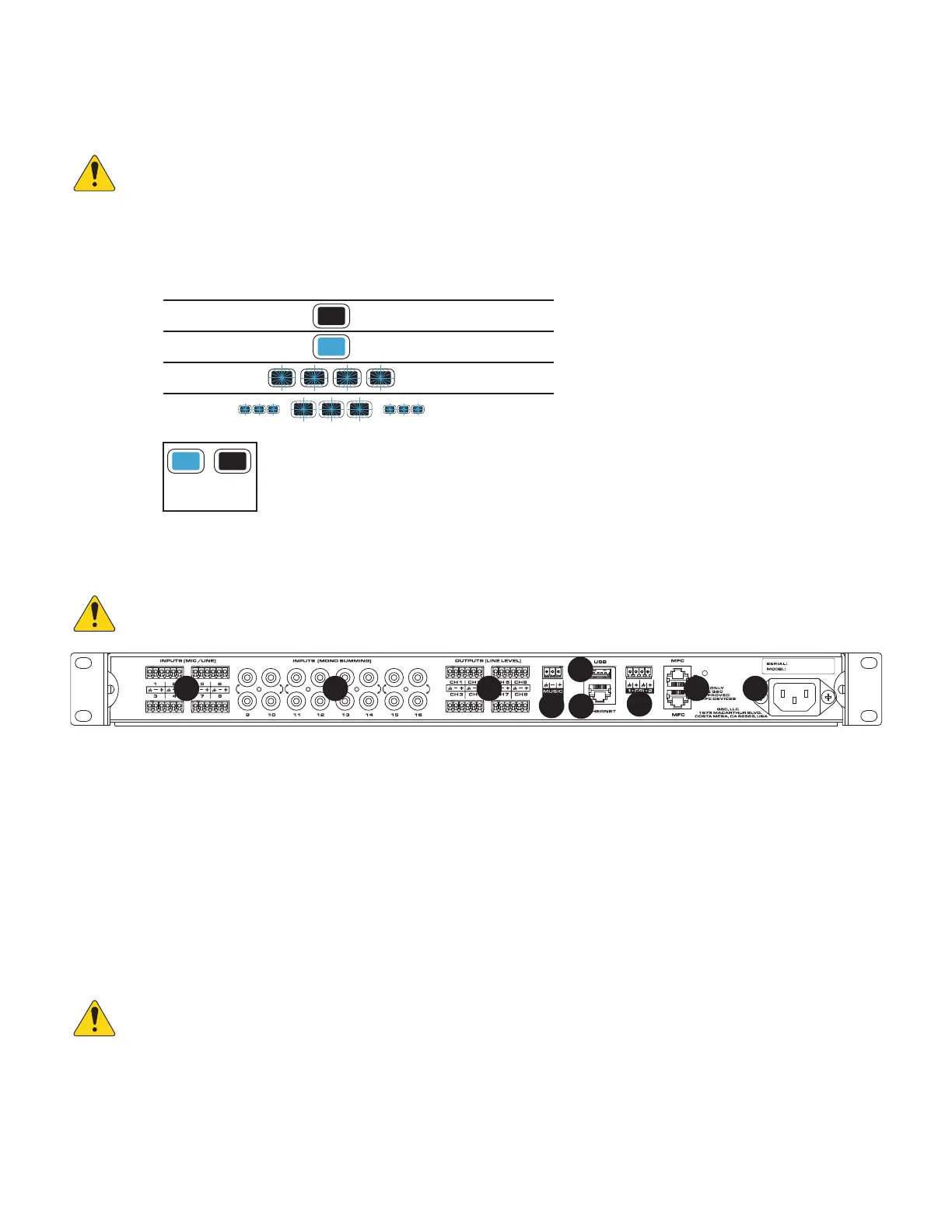

Front Panel
NOTE: MP-M80 is shown.
1. CUE – Headphones, 3.5 mm, stereo
2. USB – USB-A (rear panel – 1, front panel – 1), firmware & configuration uploads, USB Wi-Fi
3. STATUS –
4. POWER –
Action Appearance Definition
Off OK
On Booting
Slow Blink Firmware Upgrade
SOS Blink Upgrade Failure
On Off
Rear Panel
NOTE: MP-M80 is shown.
1.
INPUTS (MIC/LINE) – Mic / Line Inputs, balanced, 12 V Phantom power, MP-M80 has 8 inputs, MP-M40 has 4 inputs, 6-pin Euroblock
connectors
2. INPUTS (MONO SUMMING) – RCA Pairs, summed to mono, MP-M80 has 8 pairs, MP-M40 has 4 pairs
3. OUTPUTS (LINE LEVEL) – Balanced, Line Level, MP-M80 has 8 line level outputs, MP-M40 has 4 line level outputs, 6-pin
Euroblockconnectors
4.
MUSIC ON HOLD – Transformer-balanced, 3-pin Euroblock connector
5. USB – USB-A (rear panel – 1, front panel – 1), firmware & configuration uploads, USB Wi-Fi
6. Ethernet – RJ45 For connecting to a network, wired and/or wireless.
7. GPI – 2 Inputs, Euroblock
8.
MFC – MP-MFC ports, up to 4 MFC’s per connection, 2 RJ45 connectors
9. AC Mains – power connection, 100-240 V, ~85 W, 50/60 Hz
CAUTION!: If AC power is removed, wait for 5 seconds before reapplying the AC power.
3
4
1 9
6
8
5
2
7
