QSC MP-M80 - Mixer Functionality

35
TD-001578-01-C
Mixer
The MP-M includes a stereo mixer with Auto-Mix capability and an FX engine allowing it to be used for meeting/conference or live entertainment
applications. All MP-M Input Channels are available as a an audio source to the mixer. The mixer’s stereo output can be used as an audio source
for any of the MP-M Output Channels.

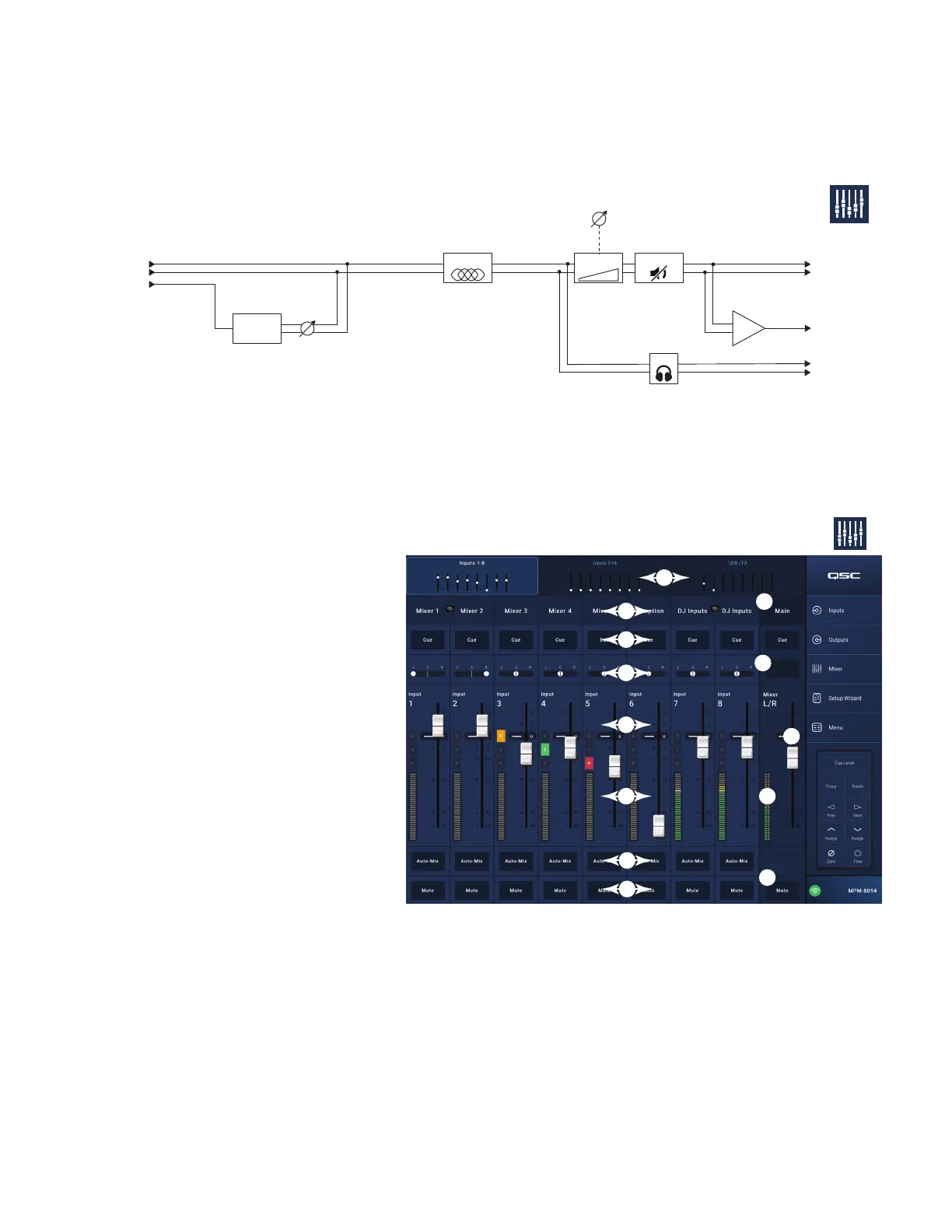

Mixer Main – Block Diagram
Touch
Mixer
Mixer Section
Level
PEQ
Gain
Gain Mute
To
Linked
Zones
To
Mono
Zones
Eects
To Cue
Cue
Eects
Level
From
Input
Channels
Mixer Main – Home Screen
(MP-M80 shown)
1. Inputs 1–8 (Mic/Line), Inputs 9–16 (RCA), USB/FX
(USB Player and FX Channel) banks – Select a bank (or
group) of Input Channels.
2. Select (Input Channel Name) – Displays the Input
Channel’s friendly name. Touch to access the
Input PEQ, Compressor, AGC, Gate, Presets, and
setupscreens.
3. Main – Touch to access the Mixer’s Main channel
6-band PEQ screen.
4. Cue – Routes the Input Channel’s signal to the Cue
(headphone) output.
5. Pan – Places the channel’s signal in a stereo
soundfield.
6. MFC Mixer Channels – Allows the selection of
specific Input levels for control from an MFC.
7. Level faders – Adjusts the output level from the Input
Channels going to the Mixer Main channel.
8. Level meter – Indicates the pre-fader signal level from
the Input Channels.
9. Main Level meter – Indicates the post-fader output of
the Mixer Main channel.
10. Main Output fader – Adjusts the output level of the Mixer. The Main output can be selected as a Source for any of the Zone outputs.
11. Auto-Mix – Engages the automatic microphone mixer.
The MP-M auto-mixer is a gain-sharing design and may be used on any or all of the Mic/Line input channels. It works by comparing the signals
from the input channels and applying attenuation (level reduction). In operation, the auto-mixer senses which channels are being spoken into
and allocates gain to the active channels while reducing gain of the inactive channels.
12. Mute button – Mutes the Input Channel
13. Mute button – Mutes the Main Mixer output.
Touch
Mixer
MFC Mixer
Channels
3
6
10
9
13
1
2
4
5
7
8
11
12
