QSC Q-SYS Hardware Quick Start Guide

4
TD-000541 -01-B

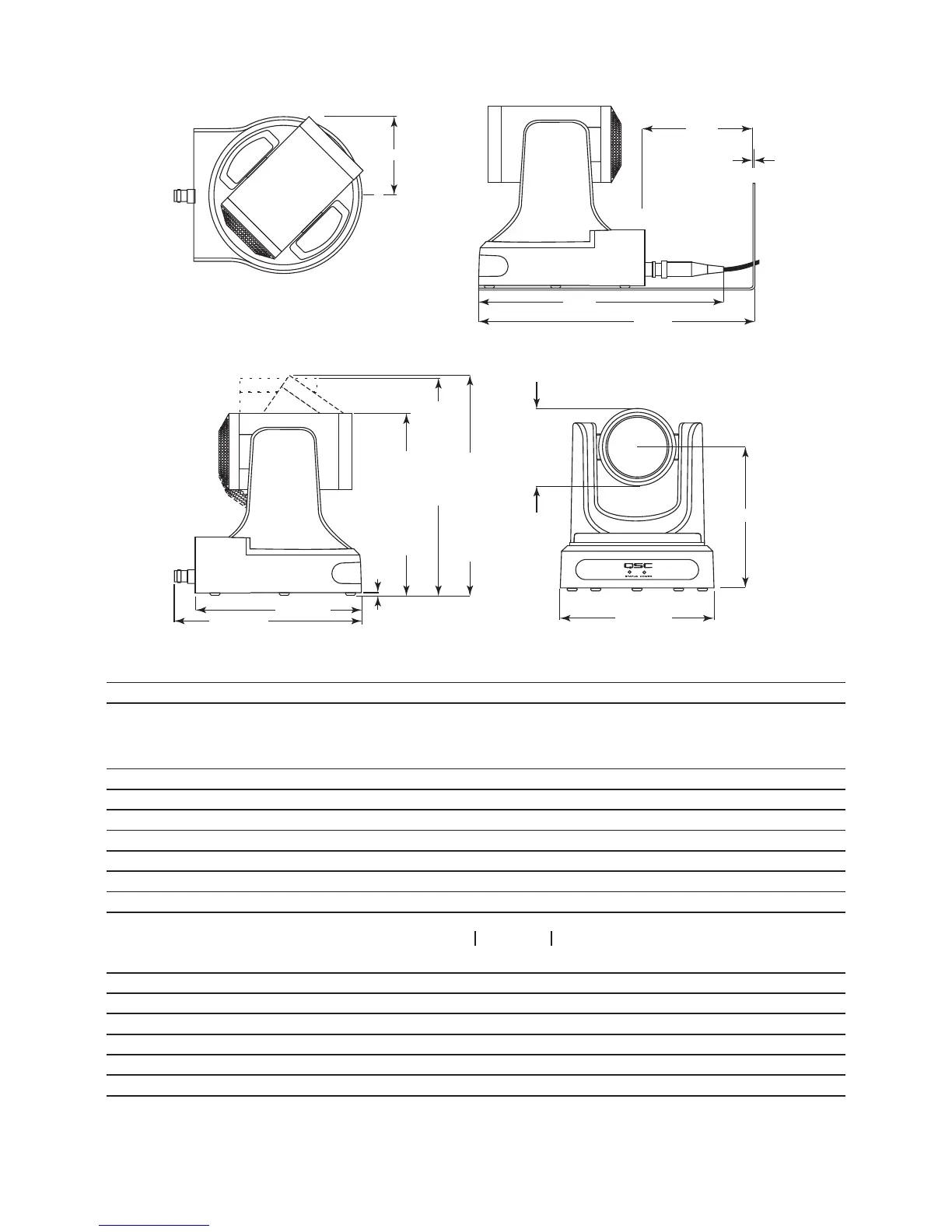

Dimensions
Specifi cations
PTZ-12x72 PTZ-20x60
Image Sensor 1/2.7", Low Noise CMOS Image Sensor
Lens characteristics (wide to tele)
Optical zoom
Horizontal Field of View
Vertical Field of View
12x, f=3.5mm to 42.3mm, F1.8 to F2.8
72.5° to 6.9°
44.8° to 3.9°
20x, f=4.42mm to 88.5mm, F1.8 to F2.8
60.7 to 3.36°
34.1° to 1.89°
Minimal Illumination 0.5 lux at F1.8 (AGC On)
Noise Reduction 2D and 3D
S/N Ratio  55dB
Pan / Tilt Angle and Speed Pan: ±170° rotation, speed: 1.7° to 100°/sec, Tilt: -30° to +90° rotation, speed: 1.7° to 69.9°/s
Ceiling Mountable Image rotation for ceiling mounting set in Q-SYS Designer. Ceiling mount bracket accessory available.
HD Video Outputs HDMI v1.3 and 3G-SDI
Ethernet 100BaseTX / 1000BaseT
Video Resolutions
HDMI / SDI:
Network (30fps, 16:9):
1080p, 720p, 576p, 360p, 270p, 180p
Input Voltage DC 12V / PoE (802.3af) Class 3
Current Consumption 1.0A (max)
Operating Temperature -10°C - 40°C (14°F - 104°F), Indoor use only
Storage Temperature -40°C - 60°C (-40°F - 140°F)
Power Consumption 12W (max)
Shipping Dimensions (H W D) 252mm x 235mm x 235mm (10in x 9.25in x 9.25in)
Weight
Shipping
Camera
2.5kg (5.6lb)
1.4Kg (3.0lb)
PTZ 12 X 72 With Lens Cap
72mm (2.8in)
3.25mm
(0.13in)
142mm (5.6in)
220mm
(8.7in)
243.3mm
(9.6in)
90mm
(3.5in)
65mm (2.6in) PTZ 20 X 60 66mm (2.6in) PTZ 12 X 72
177mm (7.0in) PTZ 20 X 60
190mm (7.5in)) PTZ 12 X 72
150mm (6.0in)
170mm (6.7in)
192 (3.6in) PTZ 20 X 60
203mm (8.0in) PTZ 12 X 72
2mm
(0.08in)
72mm (2.8in) PTZ 20 X 60 74mm (2.9in) PTZ 12 X 72
129mm (5.0in)
C
L
1080p – 60/50/30/25 1080i – 60/50 720p – 60/50/30/25
