QSee QT5140 User Manual

18 19
1 2
123 4 5 6 7 8 9 1110

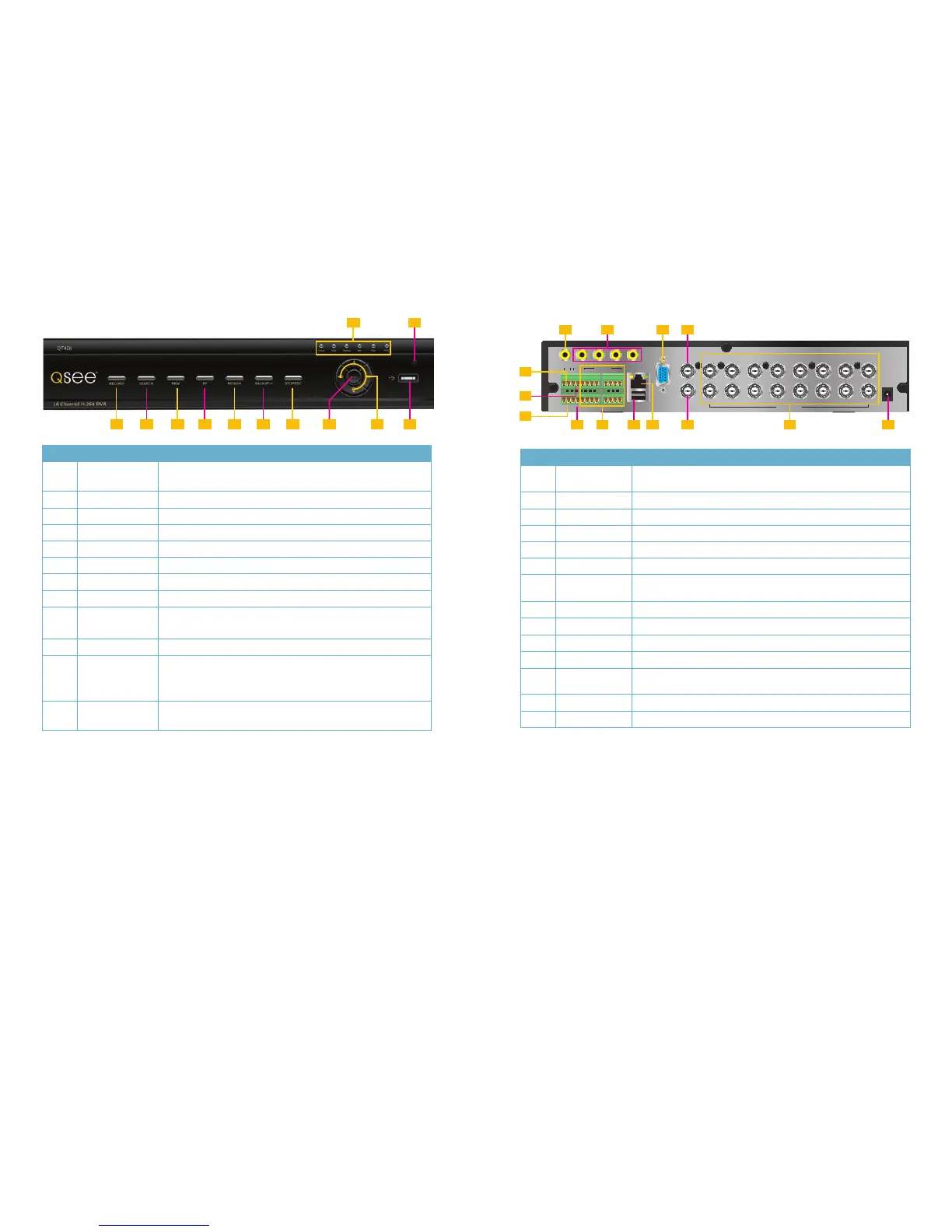

FRONT PANEL
VGA
SPOT
DC 12V
VIDEO OUT
VIDEO IN
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
USB
NET
ALARM OUT
P/Z
Y Z A 1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
B
RS485
ALARM OUT
ALARM IN
1 2 3 4
K/B
GND COM NO SV
2 3 41
8 9 10 11 12
5
6
7
13 14
REAR PANEL
QT426
ITEM NAME FUNCTION
1 LED
INDICATORS
Show status of power, HDD, record, etc.
2 IR RECEIVER Receives signals from remote control
3 RECORD Manually begins recording
4 PLAY Launches PLAYBACK window
5 REW Rewind key
6 FF Fast Forward
7 +/MENU Increase the value in SETUP/Enter menu in LIVE VIEW
8 -/BACKUP Decrease the value in SETUP/Enter backup mode in LIVE VIEW
9 STOP/ESC Quit PLAYBACK mode/Exit the current window or status
Also switches video output mode.
10 ENTER Confirm selection
11 DIRECTION/
MULTISCREEN
1. Navigate through on-screen options
2. Change screen display mode between 1, 4, 9 and 16
channels
12 USB USB port to connect USB flash or external hard drives to
update firmware or back up recordings
ITEM NAME FUNCTION
1 AUDIO
OUTPUT
Connection for audio output – connect to an amplified speaker
2 AUDIO IN 4-Channel audio input for cameras equipped with audio
3 VGA PORT Video output for connecting to monitor
4 VIDEO OUT Video output for connecting to TV (BNC) or monitor
5 RS485 Connect to Pan-Tilt-Zoom camera to control motion
6 K/B Connect to keyboard
7 ALARM
OUTPUT
Output for alarm
8 +5 AND GND +5 and grounding
9 ALARM IN Connect to up to sixteen external sensors
10 USB PORT Connect USB mouse
11 NET Network (ethernet) port
12 SPOT Connect to another monitor as an auxiliary output channel. This
monitor will only display video and will have no menu access.
13 VIDEO IN Video input from up to 16 cameras
14 DC +12V Power input

QSee QT5140 Specifications

General

Brand	QSee
Model	QT5140
Category	DVR
Language	English
