Qtx BUSKER-10 - Front Panel; Rear Panel

178.864UK User Manual

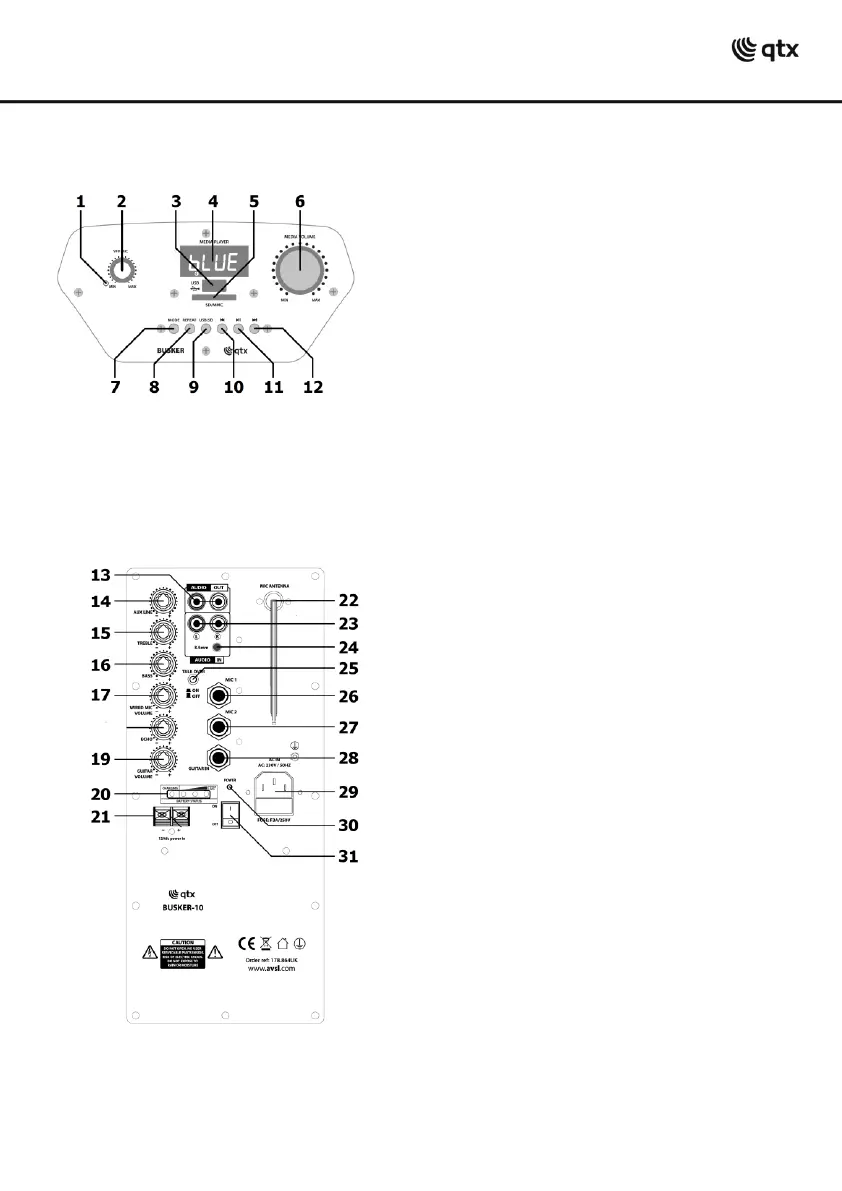

Front Panel
Rear Panel
1
VHF microphone indicator
2
VHF MIC volume
3
USB port
4
LED display
5
SD/MMC card slot
6
USB/SD/FM/BT volume
7
Media player Mode select
8
Playback Repeat mode select
9
USB/SD memory device select
10
Previous track (hold seek reverse)
11
Play/Pause
12
Next track (hold seek forward)
13
Line output L+R RCA
14
AUX/Line input volume
15
Treble EQ control
16
Bass EQ control
17
Wired mics volume
18
Echo level
19
Guitar input volume
20
Battery charging & level LEDs
21
D.C. power input terminals
22
VHF microphone antenna
23
Line input L+R RCA
24
Line input stereo 3.5mm jack
25
Microphone talk-over select
26
Microphone 1 input jack
27
Microphone 2 input jack
28
Guitar input jack
29
IEC mains inlet & fuse
30
Power indicator LED
31
Power on/off switch
