QUAD 33 - Page 12

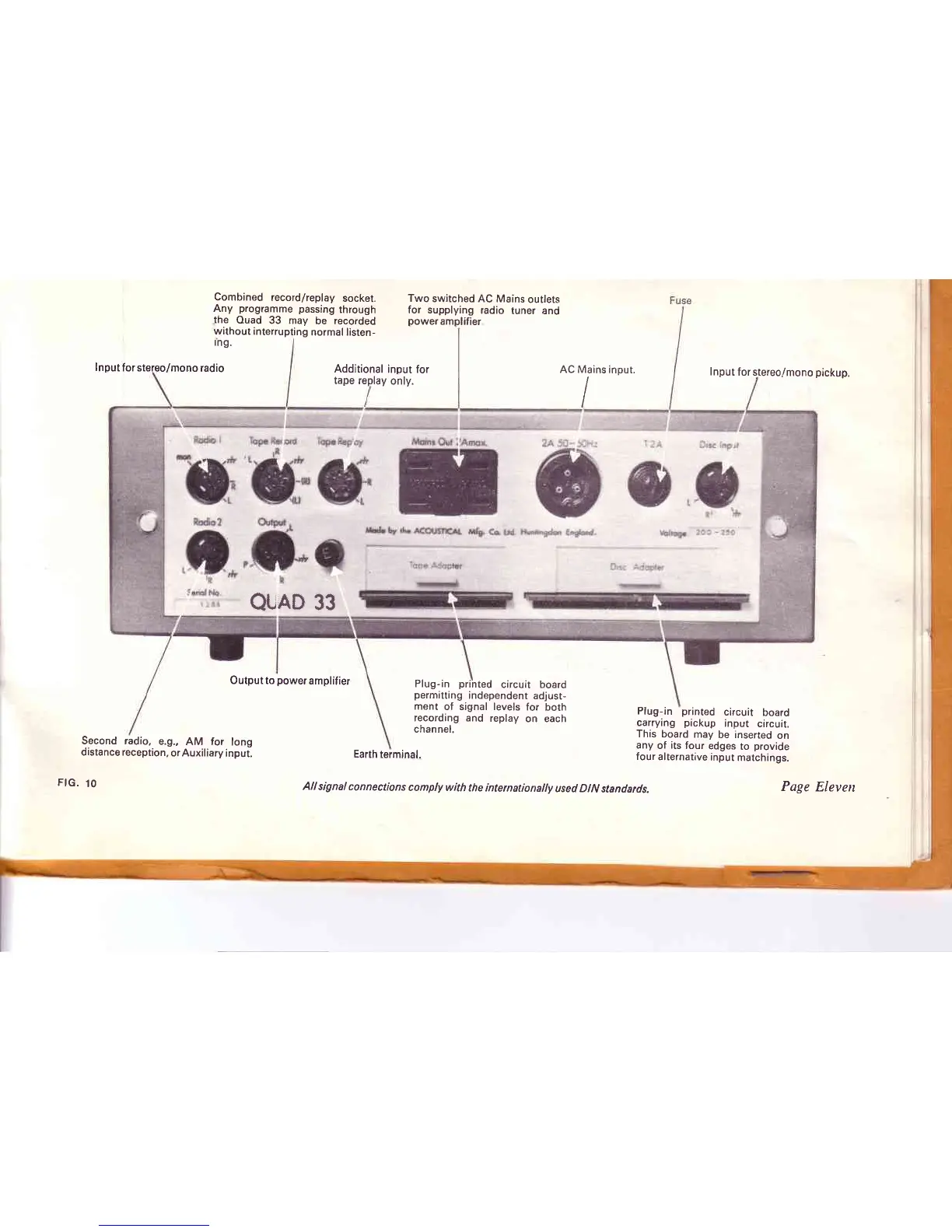

Combined
record/replay
socket.
Any
programme
passing
through
the
Quad
33 may
be recorded
without
interrupting
normal listen-
Ing.
Two
switched AC Mains
outlets
for supplying
radio
tuner and
power
amplifier
Input
for stereo/mono
radio
Additional
inout for
tape replay
only.
AC Mains
input.
I
Input
for stereo,/mono
pickup.
Output to
power
amplifier
Plug-in
printed
circuit board
permitting
independent
adjust-
ment
of signal levels
for
both
recording and
replay
on each
channel.
Eanh terminal.
All
signal connections
comply with
the intemationally
used DIN
standads.
Second radio.
e.9.,
AM for
long
distance reception,
or Auxiliary
input.
Ftc.
10
Plug-in
printed
circuit
board
canying
pickup
input
circuit.
This board
may
be inserted
on
any
of
its
four
edges
to
provide
four
alternative
input
matchings.
