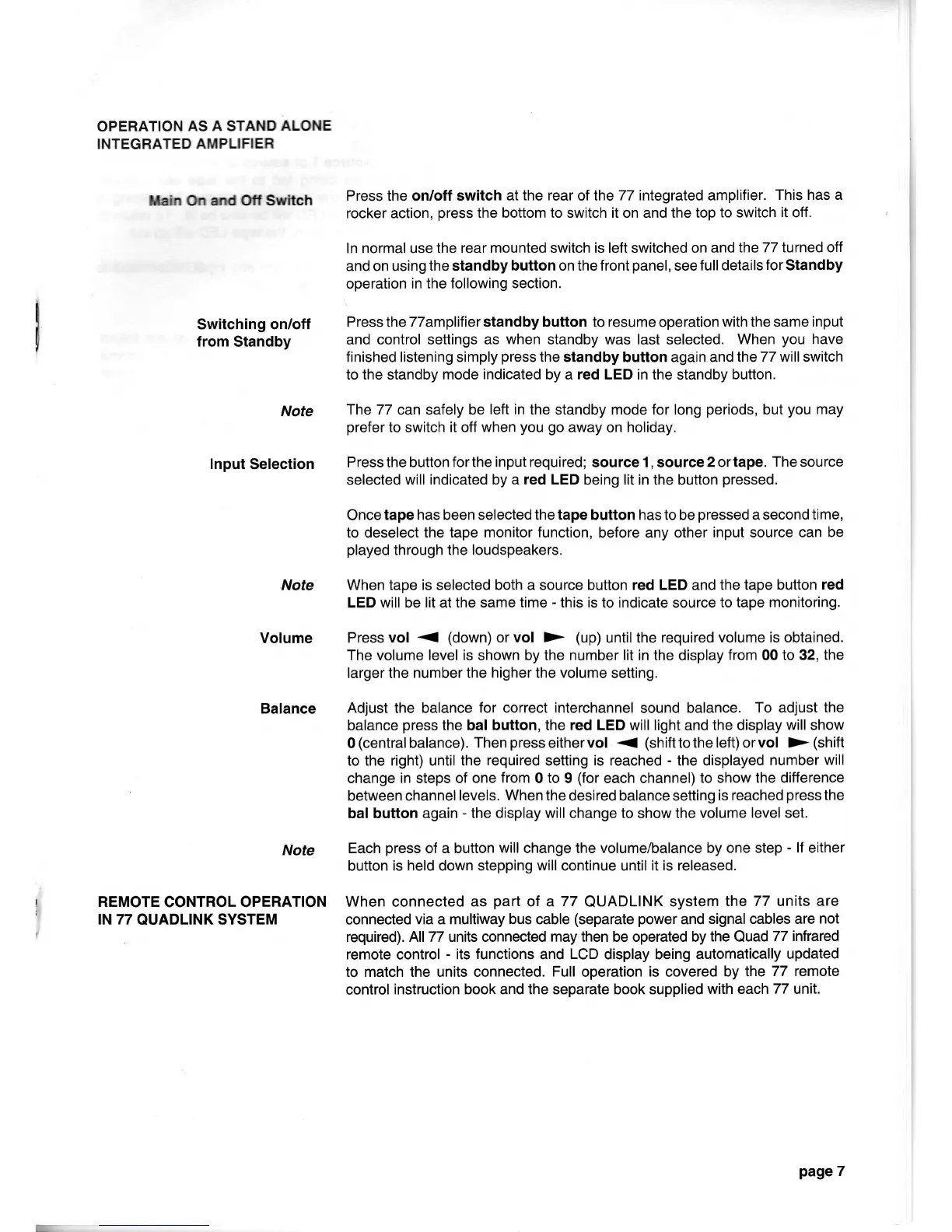

OPERATION
AS
A
STAND
ALOI{E
INTEGRATED
AilPLIFIER
[airl On nd Ofr $ritch
Switching on/off
from
Standby
Note
Input Selection
Note
Volume
Balance
Note
REMOTE
CONTROL OPERATION
IN 77
OUADLINK SYSTEM
Press the on/off
switch
at the rear
of lhe
77 integrated amplifier.
This has a
rocker action,
press
the bottom to switch it on and the top
to switch it off.
ln normal use
the rear mounted switch is left switched on
and lhe77
turned off
and
on using the standby
button on the f ront
panel,
see
full details for Standby
operation
in the following
section.
Press the TTamplifier standby button to
resume operation
with the same
input
and control
settings as
when
standby was last
selected.
When
you
have
finished listening simply
press
the standby button again and
the77 will switch
to the standby mode
indicated
by
a
red LED in the
standby
button.
The77 can safely be
left in
the standby mode for long
periods,
but
you
may
prefer
to switch it off when
you go
away on holiday.
Press
the button
forthe input required;
source
1,
source
2 ortape,
The
source
selected
will indicated by a red LED being lit in
the button
pressed.
Once
tape has been selected the tape
button
has to
be
pressed
a second
time,
to deselect the tape
monitor function,
before any other
input source can
be
played
through
the loudspeakers.
When tape is selected both a source button red LED and the
tape button red
LED will be
lit
at the
same time
-
this is
to indicate source
to tape monitoring.
Press vol
{
(down)
or vol >
(up)
until the
required volume is obtained.
The volume
level is
shown by
the number lit
in the display
from 00 to 32,
the
larger the
number the higher the volume
setting.
Adjust
the
balance for correct interchannel
sound
balance.
To
adjust
the
balance
press
the bal
button, the red LED
will light and
the display
will
show
0
(central
balance).
Then
presseithervol
1
(shifttothe
left)orvol F
(shift
to the right) until the
required
setting is reached
-
the displayed
number
will
change in steps of one
from
0
to
9
(for
each channel)
to show the difference
between channel
levels. When the
desired balance setting
is reached
press
the
bal button again
-
the display will
change
to
show
the volume level set.
Each
press
of a button
will
change the volume/balance by
one step
-
lf
either
button is held down stepping
will
continue until
it is released,
When connected
as
part
o'f a 77
QUADLINK
system
lhe 77 units
are
connected
via a multiway bus cable
(separate power
and
signal cables are
not
required).
All 77 units connected may then be operated by
the
Quad77
infrared
remote control
-
its
functions
and
LCD
display being
automatically updated
to match the units connected.
Full
operation
is
covered
by the
77 remote
control instruction book
and the separate
book
supplied
with
each
77 unil.
