2100-I & 3100-I FIREPLACE INSERT
Page 12
March 1999
Available through your Quadra-Fire Dealer: Order Part #831-0911 for model 2100-I
Order Part #831-1101 for model 3100-I

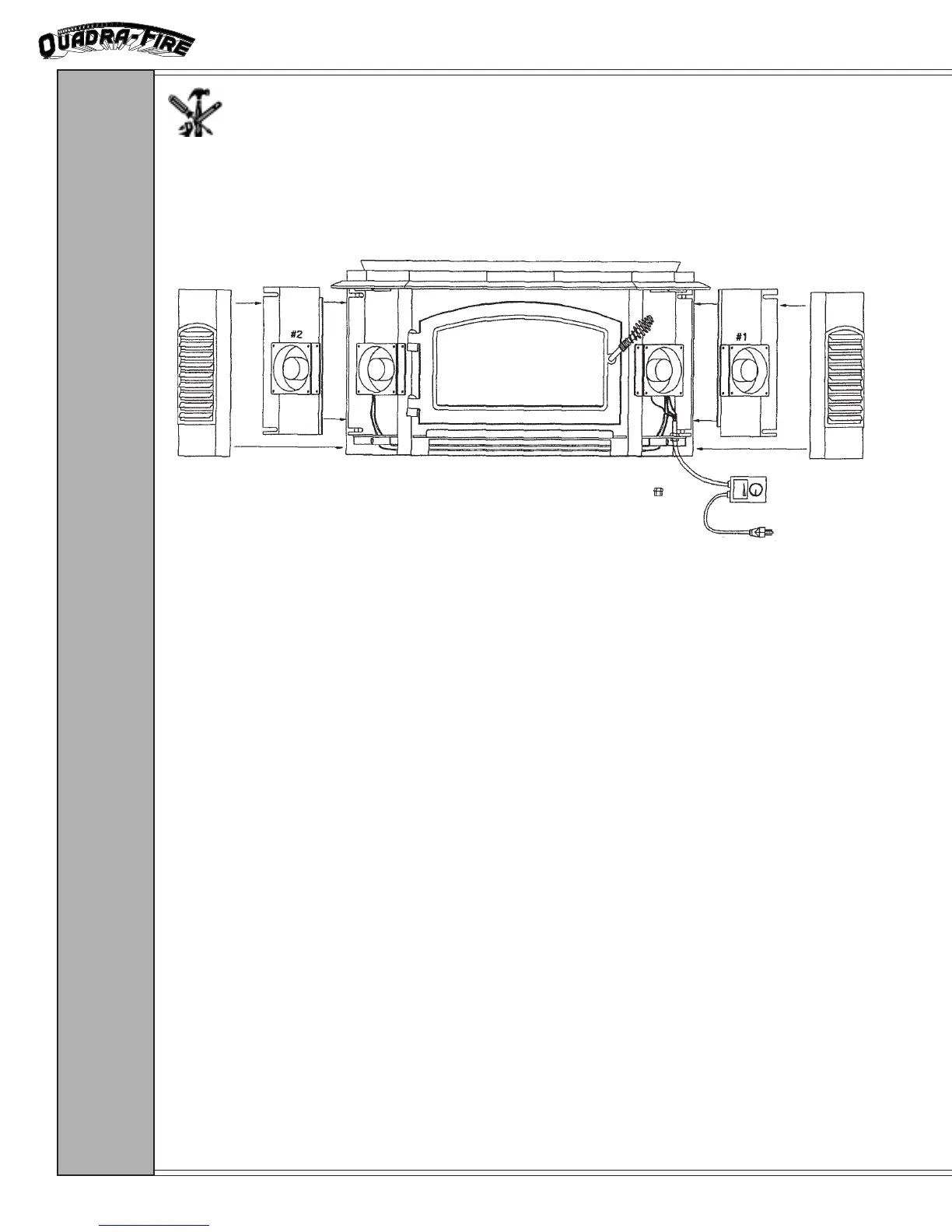

BLOWER ASSEMBLY
(OPTIONAL PURCHASE ACCESSORY)
Tools Needed:
Large Phillips screwdriver
Pliers
Parts Supplied: (2) Fan mounts/fan assemblies. (1) speed control, power cord/wire assembly.
(1 Set) Fan connector wires, must be high temperature wire. (1) Strain relief.
1. Remove fan covers.
2. Install fan mounts to outer wall with panel mounting screws.
3. Feed fan and motor wires up through large hole in floor.
NOTE: Power cord can be mounted on left or right side.
4. Connect white and black wires to fan motor terminals.
5. Feed #3 fan motor wires through smaller hole in bottom and across
to #2 fan motor.
6. Install strain relief onto power cord.
7. Using a pair of pliers, squeeze strain relief and push through large
hole in floor.
8. Plug in and test blower operation.
9. Replace screens. (Power cord comes out through opening in
bottom of screen.)
The blower speed control is pre-set at the factory. However, if you determine that an adjustment
is needed, follow these steps:
1. With the unit plugged in, turn the speed control knob to slow.
(Full clockwise.)
2. Use a small screwdriver to adjust the fan speed by turning the adjust-
ment mechanism through the hole on the side of the speed control.
3. Adjust the speed so the fan runs slowly but does not stop. Turn clock-
wise to slow the fan and counterclockwise to increase the speed.
BLOWER
ASSEMBLY
INSTALLATION
:
