2100-I & 3100-I FIREPLACE INSERT
Page 9 March 1999

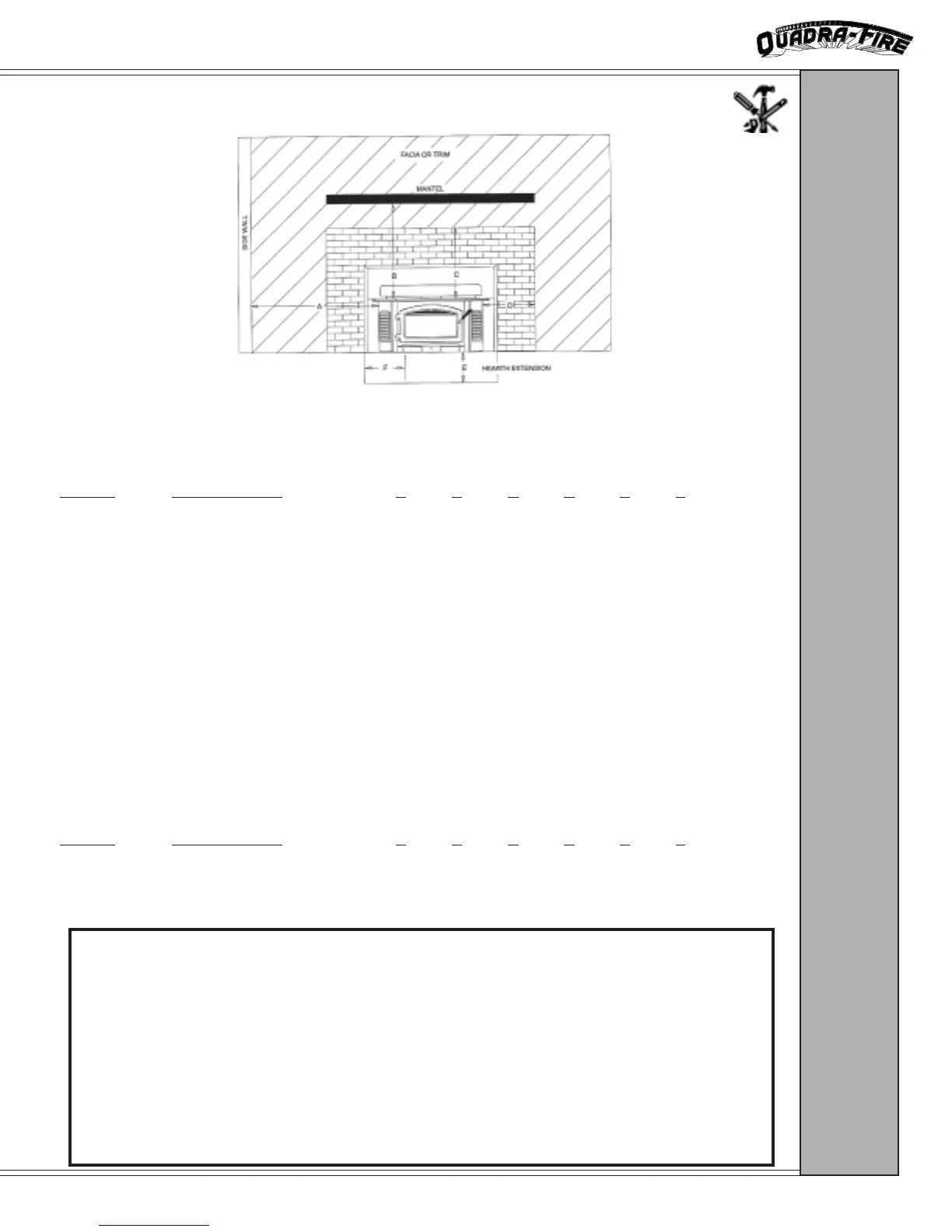

CLEARANCES TO COMBUSTIBLES
UNITED STATES INSTALLATION
MINIMUM CLEARANCES TO COMBUSTIBLES IN INCHES
MODEL INSTALLATION A B C D E F
2100-I Masonry or Heat Exchanger 26 22 14 10 16 8
Zero Clearance 26 22 14 10 16 8
3100-I Masonry or Heat Exchanger 32 22 14 10 16 8
Zero Clearance 32 22 14 10 16 8
NOTE: When installing into a masonry fireplace, the fireplace must be built to UBC Chapter 37
standards. Do not remove brick or mortar from masonry fireplace to accommodate insert.The
permanent metal warning plate label provided must be attached to the back of the fireplace stat-
ing the fireplace may have been altered to accomodate the insert and must be returned to original
condition for use as a conventional fireplace.
INSTALLATION IN CANADA
MINIMUM CLEARANCES TO COMBUSTIBLES
IN INCHES & MILLIMETERS
MODEL INSTALLATION A B C D E F
2100-I Masonry or Heat Exchanger 32 27 14 12 16 8
815mm 685mm 355mm 305mm 405mm 200mm
3100-I Masonry or Heat Exchanger 32 27 14 12 16 8
815mm 685mm 355mm 305mm 405mm 200mm
HEARTH REQUIREMENTS
There must be 3/8 minimum non-combustible material or equivalent extending 16 in
front of insert and 8 to both sides. If the hearth extension is lower than the fireplace
opening, the portion of the insert extending onto the hearth requires support. Manufac-
turer support kits can be ordered by the necessary adjustment size.
ADJUSTMENT 2100-I PART # 3100-I PART #
2 - 4 831-1370 831-1400
4 - 7 831-1380 831-1410
7 - 10 831-1390 831-1420
CLEARANCES
