22 09/207074-803C
6 Appliance Set-Up
A. Outside Air Kit
There are two Outside Air Kits available for purchase with
this appliance. Kit 811-0872 uses a 2 inch ex hose (which
is included in the kit) and uses hose clamps to secure
the hose.
Parts Included in 2 inch Kit 811-0872:
1 piece of 2 inch x 3 ft. ex hose, 2 hose clamps, 1 collar
assembly, 1 termination cap assembly, trim ring, 1 intake
air channel, fasteners (Discard the air intake channel, it is
not needed for this appliance, Figure 22.2).
Tools Needed:
Phillips Head screw driver; wire cutters; and hole saw or
jig saw.

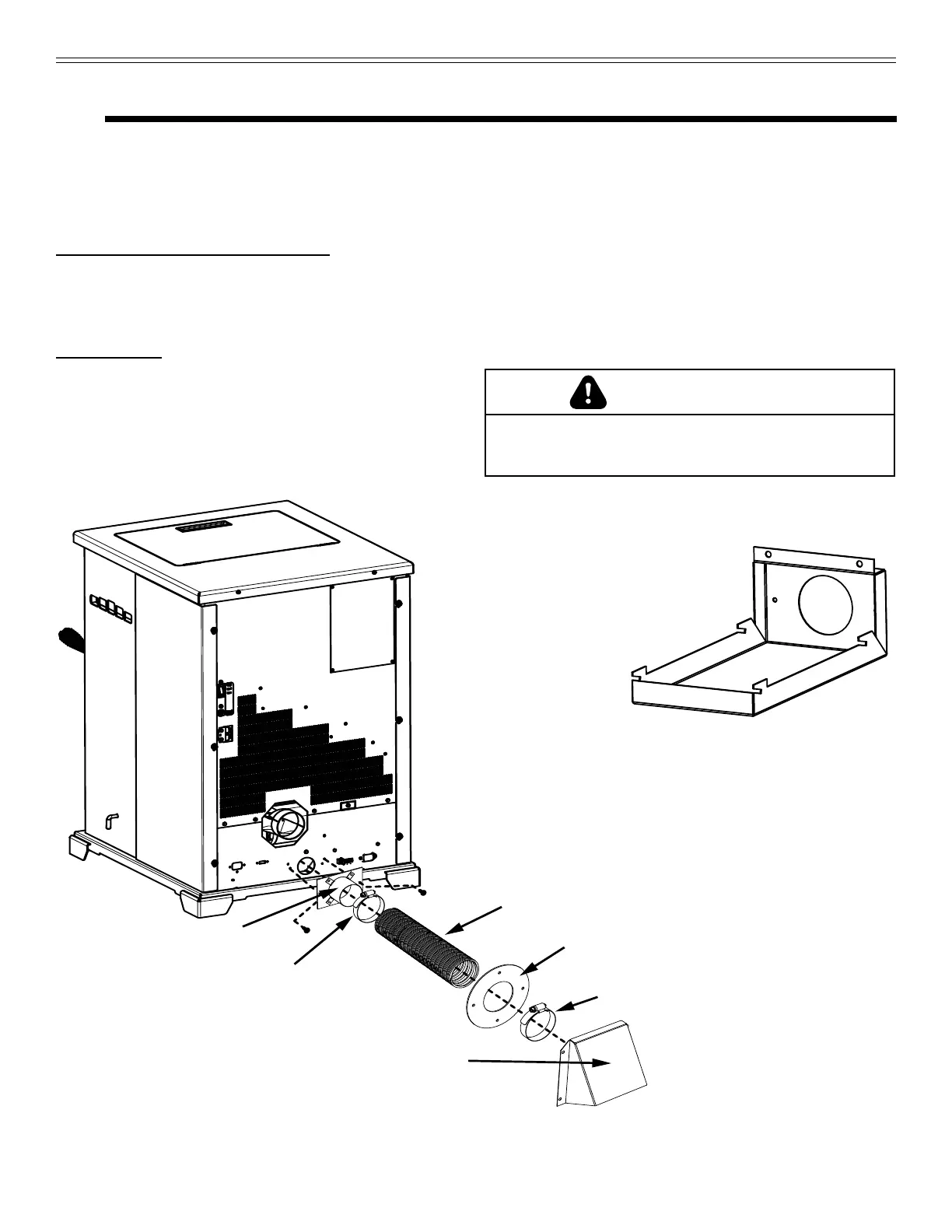

Figure 22.1
Termination
Cap
Hose
Clamp
Trim
Ring
2 inch
flex hose
Hose
Clamp
Collar
Assembly
Air Intake Channel
(Discard)
Figure 22.2
1. Measure distance from oor to air vent opening in
appliance and mark location on wall.
2. Use a saw to cut opening in wall:
- 2 inch kit: Cut a 2-1/2 to 3 inch opening on inside
wall and a 3 to 3-1/2 inch opening on outside
of house.
3. Use wire tie or hose clamp depending on the Outside
Air Kit to secure ex pipe to collar assembly.
4. Slide trim ring over ex pipe and run pipe through wall.
5. Attach ex pipe to outside termination cap with second
wire tie or hose clamp.
6. Secure termination cap to outside surface.
7. Secure trim ring to interior wall.
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
