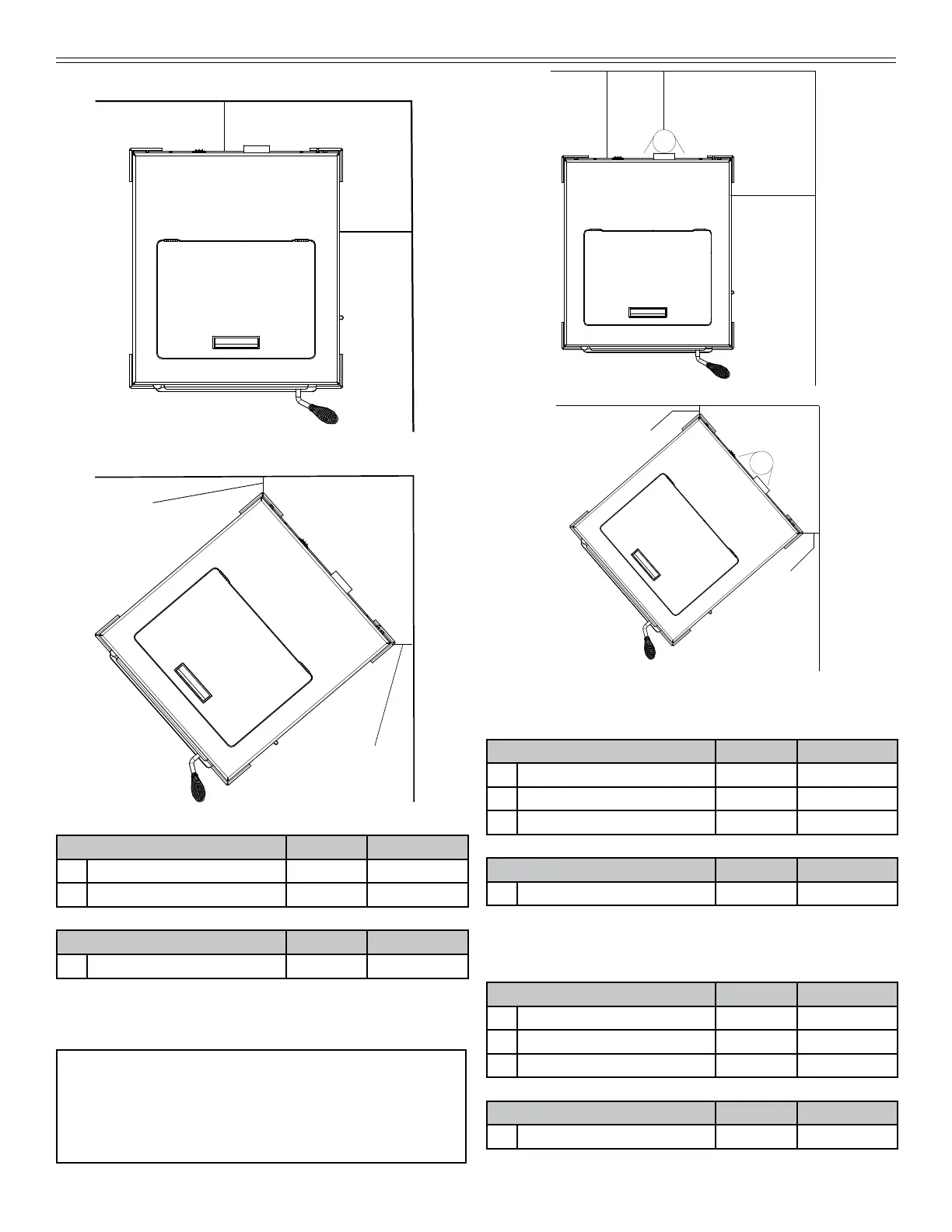

B. Clearances to Combustibles (UL and ULC)
Installations with
3 to 3 inch Top Vent Adapter
Installations with
3 to 6 inch O󰀨set Adapter
Straight Back Against Wall Inches Millimeters
A Back Wall to Appliance 2 51
B Side Wall to Appliance 14 356
Corner Installation Inches Millimeters
C Walls to Appliance 2 51
Vertical Installation Inches Millimeters
D Back Wall to Adapter 1 25
E Side Wall to Appliance 14 356
F Back Wall to Appliance 6-1/4 159
Corner Installation Inches Millimeters
G Walls to Appliance 2 51
Vertical Installation Inches Millimeters
D Back Wall to Adapter 3 76
E Side Wall to Appliance 14 356
F Back Wall to Appliance 10-3/4 274
Corner Installation Inches Millimeters
G Walls to Appliance 2 51
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual
design preference.
Table 12.1
Table 12.2
Table 12.3
