B. Top Vent Adapter Installation
3 to 3 inch Top Vent Adapter
3 to 6 inch Top Vent Oset Adapter
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe (Figure 23.1).
2. Slide the top vent adapter onto the rear exhaust
outlet and adjust the assembly to a vertical position
(Figure 23.1).
3. Drill 4 holes with #26 drill bit (provided) into the back of
the appliance using the outer shield as a pattern (make
sure the assembly is vertical) (Figure 23.1).
4. Install the 4 mounting screws.
5. Drill 2 holes with #26 drill bit through the rear exhaust
outlet using the 2 holes already in the short horizontal
pipe in the top vent adapter as a guide. Install the 2
screws (Figure 23.1).
6. Install the vent pipe into the top vent adapter.
7. To clean the top vent adapter open the clean-out cover
(Figure 23.1).
Silicone Rear
Exhaust Outlet
3 to 6 inch
Offset Adapter
3 to 3 inch
Offset
Adapter
Use holes located on
each side a drilling guide
C. Rear Vent Adapter Installations
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe (Figure 23.1).
2. Slide the adapter onto the rear exhaust outlet and
adjust the assembly to the appropriate position.
3. Install the vent pipe into the adapter.
Clean-Out Cover
Rear Vent
Adapter
(811-0620)
Clean-Out
Cover
Top Vent
Adapter
(TPVNT-6)

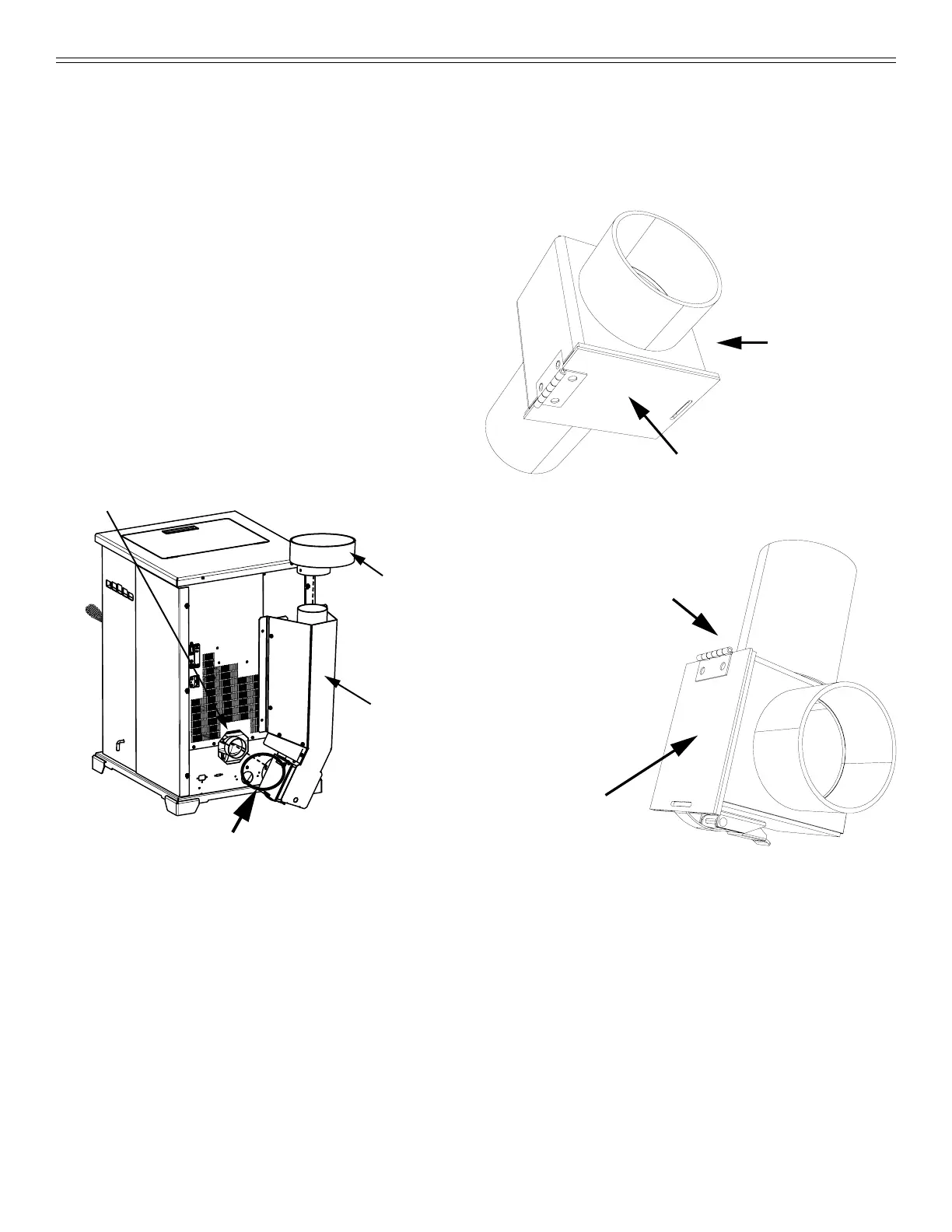

Figure 23.2 - Rear Vent Adapter (811-0620)
Figure 23.3 - 90° Rear to Top Vent Adapter (TPVNT-6)Figure 23.1
