Removing Fixed Glass Assembly
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam, or scratch glass.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
• The glass assembly fastens to the replace in four
places. The four fastening mechanisms are spring-
loaded glass latches. An example of the glass latch is
shown in Figure 4.2.
• To release glass assembly, use the supplied multi-
purpose tool. See Figure 4.1. While supporting the
glass assembly, pull the two bottom spring-loaded
latches forward and allow them to retract away from the
glass assembly. Tilt the bottom of the glass assembly
outward until the top latches disengage.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water.
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer).

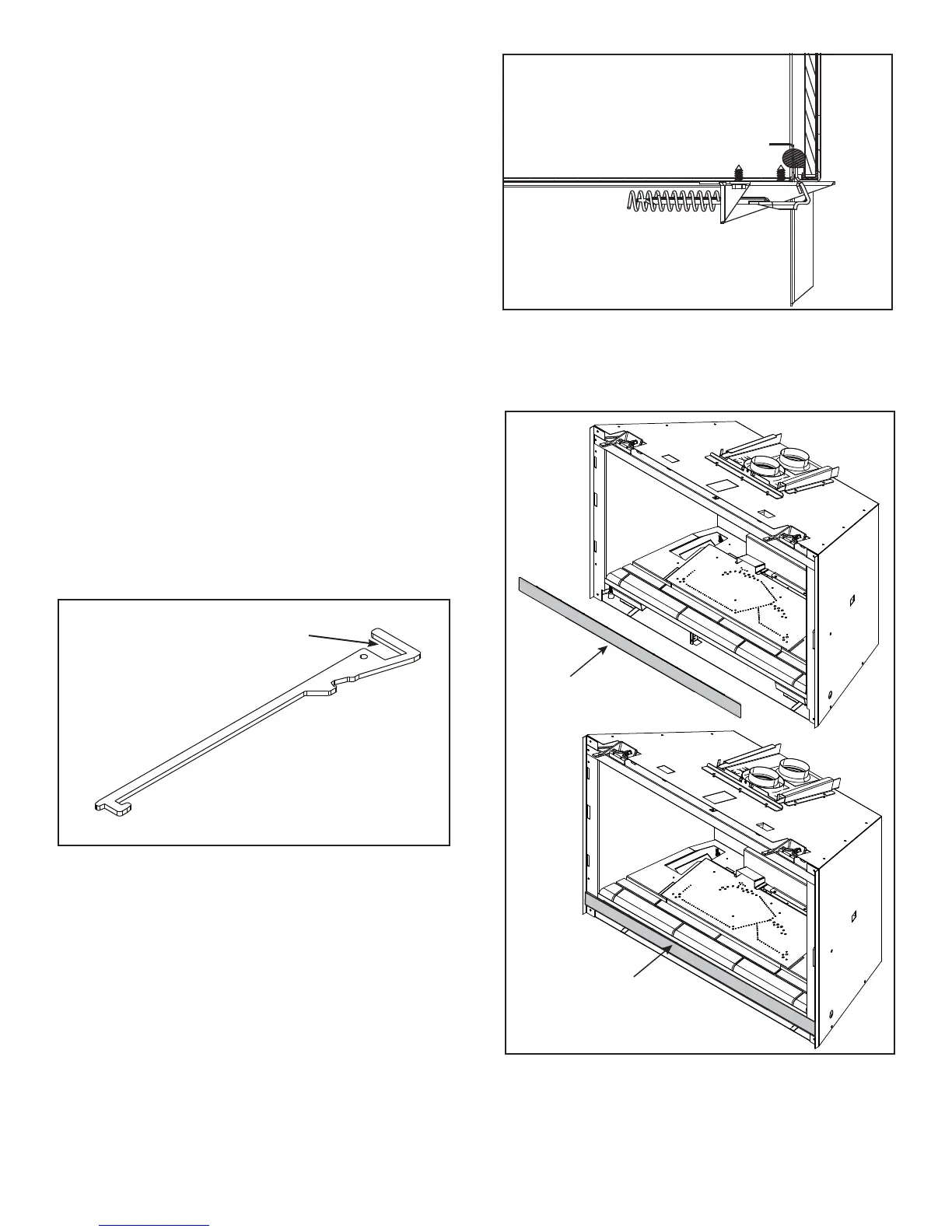

Figure 4.2. Fixed Glass Assembly
Figure 4.1 Multi-Purpose Tool
Replacing Fixed Glass Assembly
• Verify Glass Seal Plate is properly installed. See Figure
4.3.
WARNING! Glass seal plate must be properly installed.
Risk of elevated component temps and carbon monox-
ide exposure.
• Tilt the top of the glass assembly toward replace and
slide glass assembly upward to engage top latches.
Verify top latches are fully engaged and then fasten the
two bottom latches using the supplied multi-purpose tool.
• Reinstall door or decorative front.
GLASS CLIPS
Figure 4.3 Glass Seal Plate
GLASS SEAL PLATE
GLASS SEAL
PLATE INSTALLED
