Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Owner’s Manual • 2538-981 Rev. B • 2/19
Control Cavity Access
Tools needed: Protective gloves, multi-purpose tool
• Remove decorative front.
• Remove xed glass assembly.
• Remove glass seal plate. See Figure 4.3.
• For easier access, glass clip assemblies can be removed.
See Figure 4.5. Be careful when handling base refractory.

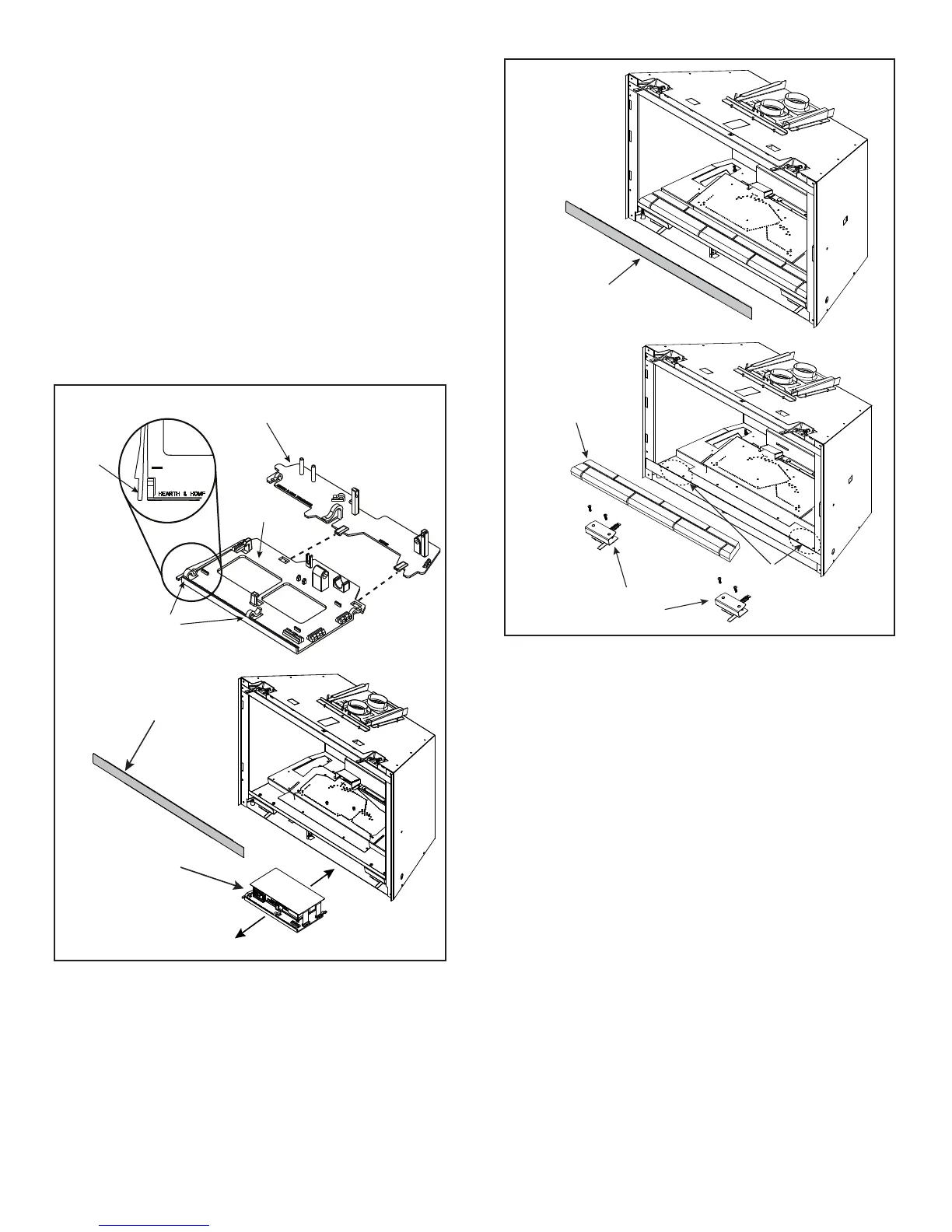

Figure 4.5 Glass Clip Removal
Figure 4.4 Component Tray Access
GLASS SEAL PLATE
BASE REFRACTORY
GLASS CLIP
ASSEMBLIES
GLASS
CLIP ASSEMBY
SCREW ACCESS
Note: Bottom right glass clip on 25 inch models must be
removed to gain access to controls.
GLASS SEAL PLATE
COMPONENT TRAY
WITH HEAT SHIELD
PRESS
TAB TO
RELEASE
UNCLIP
WIRES
COMPONENT
TRAY
COMPONENT
TRAY RECEIVER
CAUTION: Be sure to reinstall the component heat shield
before ring the appliance. Components will overheat.
Note: Wires may need to be removed from clips for full
access. See Figure 4.4.
• For access, slide out component tray. See Figure 4.4.
