Qualcast XSZ53C-SD-E - Page 3

54
Customer Helpline 01904 727500
www.gardenservicecentre.co.uk
Customer Helpline 01904 727500
www.gardenservicecentre.co.uk
A
Main mower deck
(with upper handle)
B
Grass collecting
bag frame
C
Grass bag lift handle
D
Side discharge
chute 1pc
E
Plastic mulching
plug 1pc (inside the
mower)
F
Lower handle
G
Lower handle xing
knob 4pcs
H
Quick release 2pcs
Low handle xing
bolt M8x40 4pcs
Quick release bolt
M8x55 2pcs
Cable clip 2pcs
Battery pack
Charger
N
Collection bag
O
Key seat with 2 keys
1
Socket spanner for
spark plug 1pc

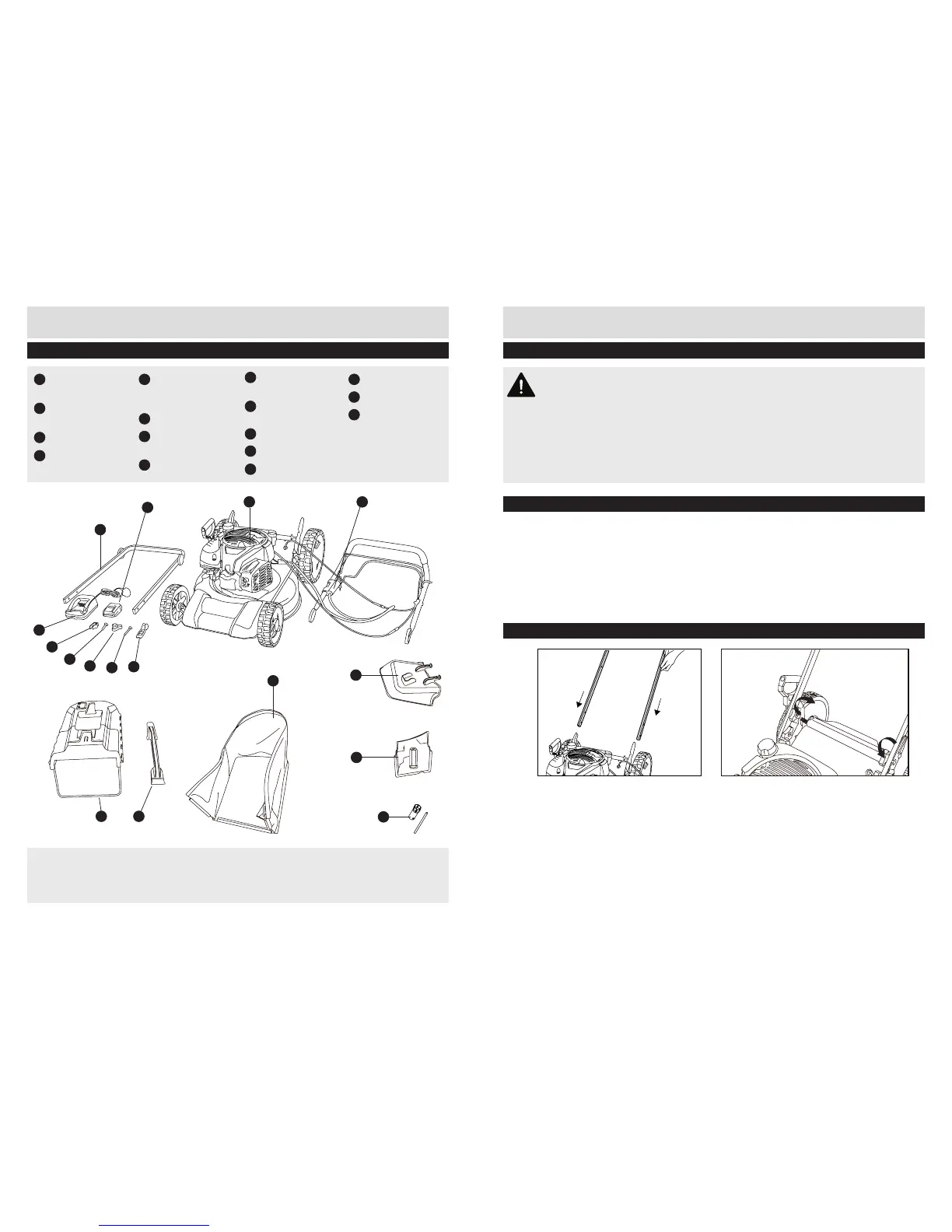

In the Box
Parts
Tools
A
N
Preparing to assemble the lawnmower
Assembly
D
CB
E
1
F
L
O
M
WARNING!
- Always take care when removing the packaging to prevent damage to you or to the lawnmower.
- This item requires a two person lift to remove from the packaging. Make sure that you have
sufcient space to put the lawn mower down. Keep your feet apart so that you have a stable
position, bend at the knees and keep your back straight.
- Always recycle the packaging in accordance with local recycling schemes.
Before assembling the lawnmower, check all the parts indicated in the manual are in the box.
Inspect all the parts for signs of damage. Do not assemble the lawnmower if you observe any
damaged components.
1 Remove all parts of the lawnmower from the box and carefully remove all packaging. Take
care not to lose any instructions which may be attached to the parts. These provide important
information which will be required while assembling the lawnmower.
2 Keep all packaging until the lawnmower is fully assembled and has been operated successfully.
Step 1
Step 2
1a Remove the packaging from the handle. Set the height adjustment to lowest position, and align
the lower handle with the holes in the deck. Make sure the holes in the lower handle are aligned
with those in the support.
1b Fix the lower handle onto the deck rmly.
1a 1b
You will also need:
- SAE30 or 4-stroke oil - Unleaded fuel - Funnel
If there are any parts missing, please call the customer helpline on 01904 727500
I
J
K
L
M
K
I
G
J
H
