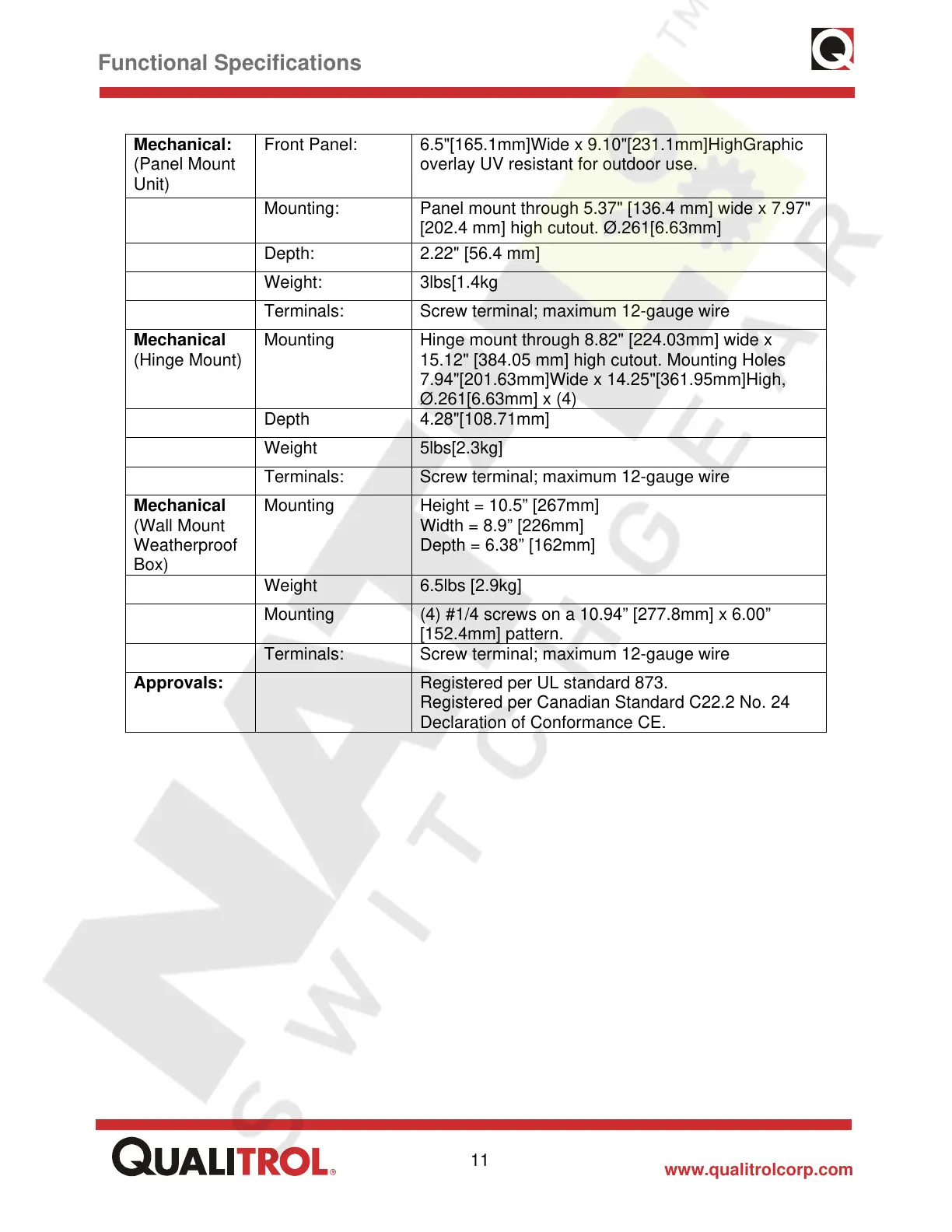

Functional Specifications
11
Mechanical:
(Panel Mount
Unit)
Front Panel: 6.5"[165.1mm]Wide x 9.10"[231.1mm]HighGraphic
overlay UV resistant for outdoor use.
Mounting: Panel mount through 5.37" [136.4 mm] wide x 7.97"
[202.4 mm] high cutout. Ø.261[6.63mm]
Depth: 2.22" [56.4 mm]
Weight: 3lbs[1.4kg
Terminals: Screw terminal; maximum 12-gauge wire
Mechanical
(Hinge Mount)
Mounting Hinge mount through 8.82" [224.03mm] wide x
15.12" [384.05 mm] high cutout. Mounting Holes
7.94"[201.63mm]Wide x 14.25"[361.95mm]High,
Ø.261[6.63mm] x (4)
Depth 4.28"[108.71mm]
Weight 5lbs[2.3kg]
Terminals: Screw terminal; maximum 12-gauge wire
Mechanical
(Wall Mount
Weatherproof
Box)
Mounting Height = 10.5” [267mm]
Width = 8.9” [226mm]
Depth = 6.38” [162mm]
Weight 6.5lbs [2.9kg]
Mounting (4) #1/4 screws on a 10.94” [277.8mm] x 6.00”
[152.4mm] pattern.
Terminals: Screw terminal; maximum 12-gauge wire
Approvals:
Registered per UL standard 873.
Registered per Canadian Standard C22.2 No. 24
Declaration of Conformance CE.
