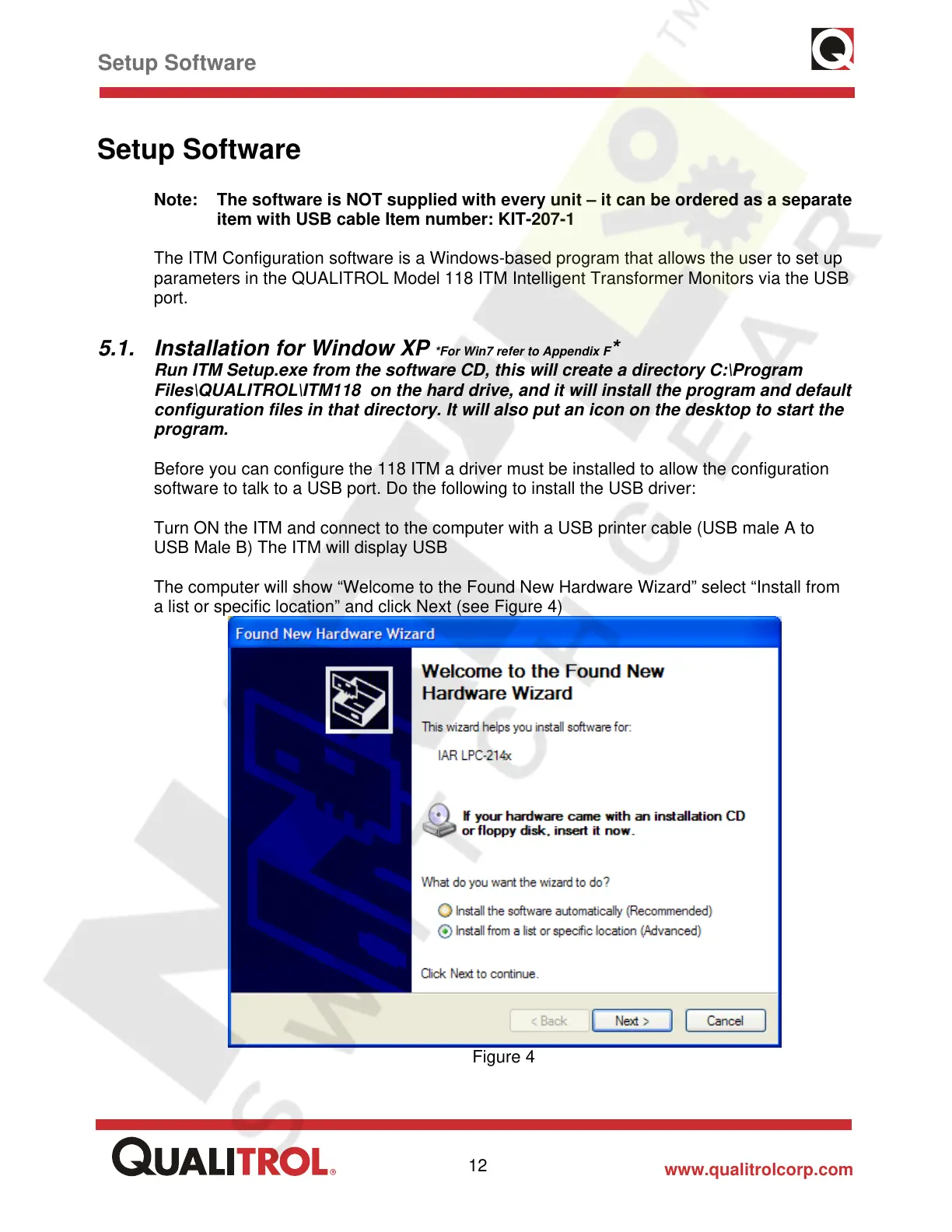

www.qualitrolcorp.com
Setup Software
12
Setup Software
Note: The software is NOT supplied with every unit – it can be ordered as a separate
item with USB cable Item number: KIT-207-1
The ITM Configuration software is a Windows-based program that allows the user to set up
parameters in the QUALITROL Model 118 ITM Intelligent Transformer Monitors via the USB
port.
5.1. Installation for Window XP *For Win7 refer to Appendix F*
Run ITM Setup.exe from the software CD, this will create a directory C:\Program
Files\QUALITROL\ITM118 on the hard drive, and it will install the program and default
configuration files in that directory. It will also put an icon on the desktop to start the
program.
Before you can configure the 118 ITM a driver must be installed to allow the configuration
software to talk to a USB port. Do the following to install the USB driver:
Turn ON the ITM and connect to the computer with a USB printer cable (USB male A to
USB Male B) The ITM will display USB
The computer will show “Welcome to the Found New Hardware Wizard” select “Install from
a list or specific location” and click Next (see Figure 4)
Figure 4
Courtesy of NationalSwitchgear.com
