Setup Software
17

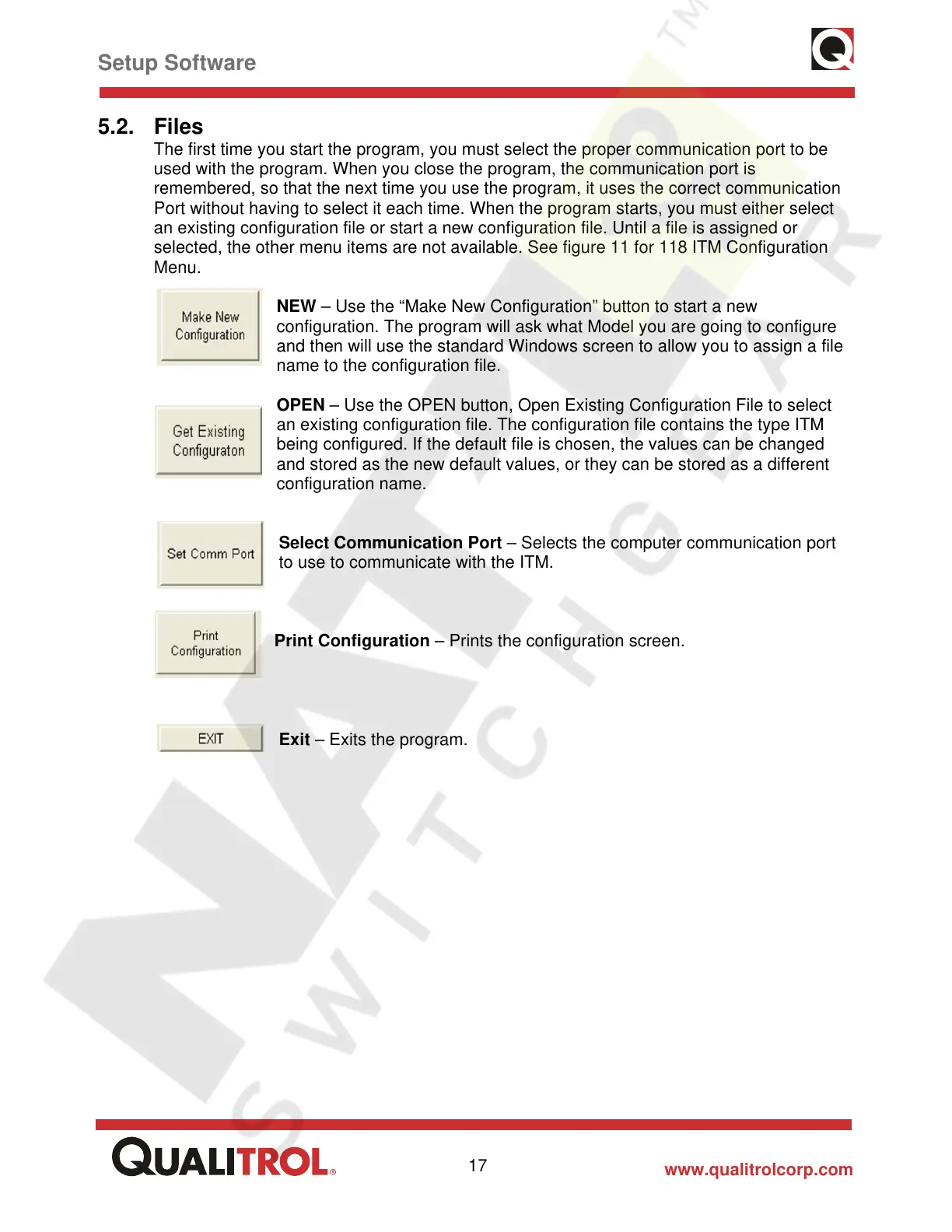

5.2. Files
The first time you start the program, you must select the proper communication port to be
used with the program. When you close the program, the communication port is
remembered, so that the next time you use the program, it uses the correct communication
Port without having to select it each time. When the program starts, you must either select
an existing configuration file or start a new configuration file. Until a file is assigned or
selected, the other menu items are not available. See figure 11 for 118 ITM Configuration
Menu.
NEW – Use the “Make New Configuration” button to start a new
configuration. The program will ask what Model you are going to configure
and then will use the standard Windows screen to allow you to assign a file
name to the configuration file.
OPEN – Use the OPEN button, Open Existing Configuration File to select
an existing configuration file. The configuration file contains the type ITM
being configured. If the default file is chosen, the values can be changed
and stored as the new default values, or they can be stored as a different
configuration name.
Select Communication Port – Selects the computer communication port
to use to communicate with the ITM.
Print Configuration – Prints the configuration screen.
Exit – Exits the program.
