Operation
3
Installation and Wiring
2.1. Mounting of the Transformer Monitor
The 118 ITM mounts in a rectangular cutout for a panel or a hinge mount, which is secured by
four ¼” bolts. See Figure 1; 118 ITM Dimensions.

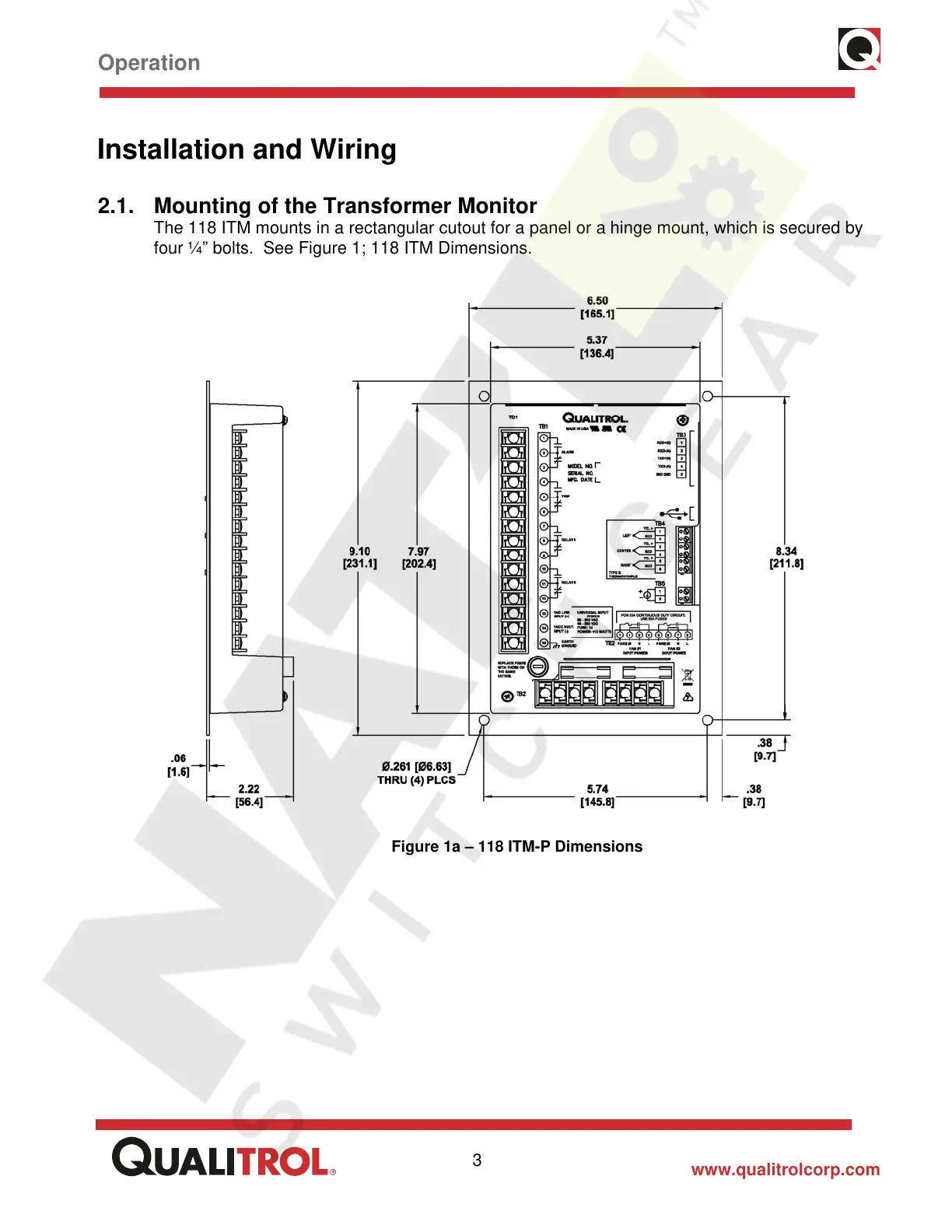

Figure 1a – 118 ITM-P Dimensions
