Operation
4

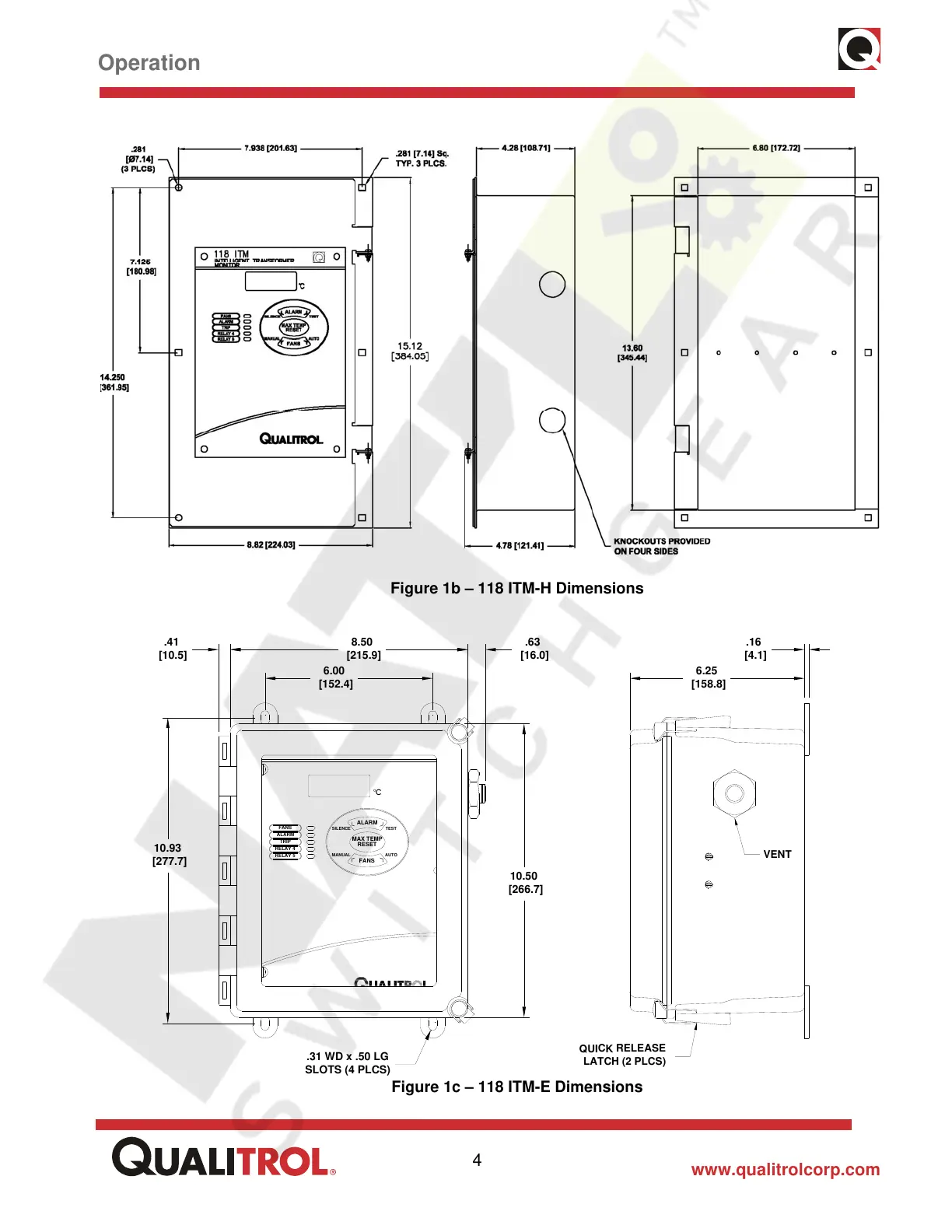

Figure 1b – 118 ITM-H Dimensions
Figure 1c – 118 ITM-E Dimensions
°C
MANUAL AUTO
SILENCE TEST
ALARM
MAX TEMP
RESET
FANS
FANS
ALARM
TRIP
RELAY 4
RELAY 5
6.25
[158.8]
.16
[4.1]
.41
[10.5]
8.50
[215.9]
10.50
[266.7]
6.00
[152.4]
10.93
[277.7]
.31 WD x .50 LG
SLOTS (4 PLCS)
VENT
.63
[16.0]
Q
U
I
C
K
R
E
L
E
A
S
E
L
A
T
C
H
(
2
P
L
C
S
)
