Quanta Computer QuantaGrid Series - 1.3 a Tour of the System; System Overview

ABOUT THE SYSTEM A TOUR OF THE SYSTEM
1-5
1.3 A Tour of the System
System Overview

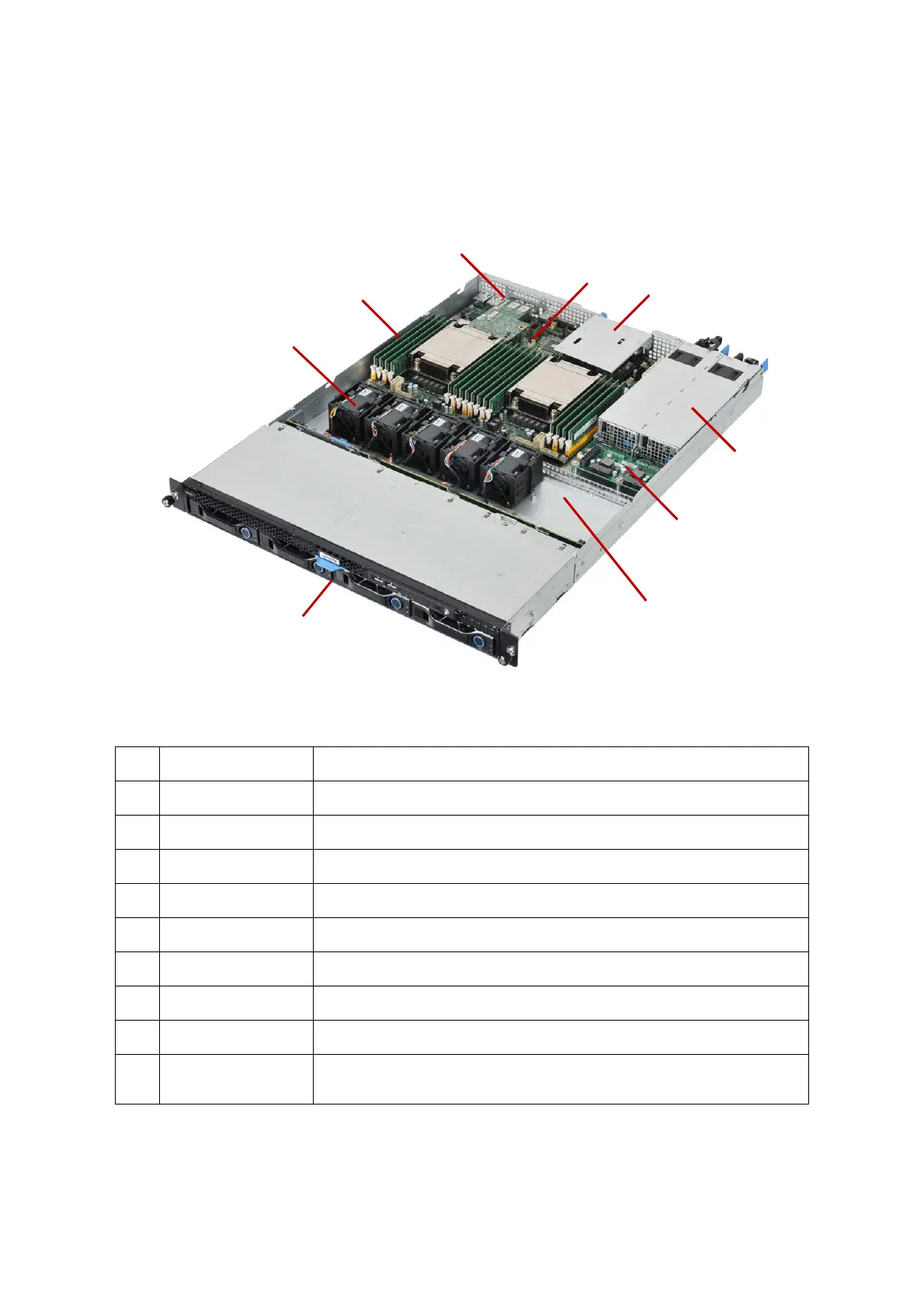

Figure 1-1. System Component Overview
Table 2: Component Overview
NO.ITEM DESCRIPTION
1 Fan module (5) System fan modules
2 DIMM slots (16) DDR4 DIMM slots
3 Expansion slot Supports OCP mezzanine only
4 Mainboard System mainboard
5 Expansion slot Supports Quanta mezzanine only
6 PSU assembly Redundant power supply unit assembly
7 PCB Power Distribution Board
8 Backup battery Backup battery for mezzanine card
9 HDD assembly
 3.5” model: 4 x hard disk drive assemblies + 2 x 2.5” SSD
 2.5” model: 10 x hard disk drive assemblies
2
5
7
1
6
4
3
9
8
