Quanta Computer QuantaGrid Series - System Front View

ABOUT THE SYSTEM SYSTEM FRONT VIEW
1-6
System Front View

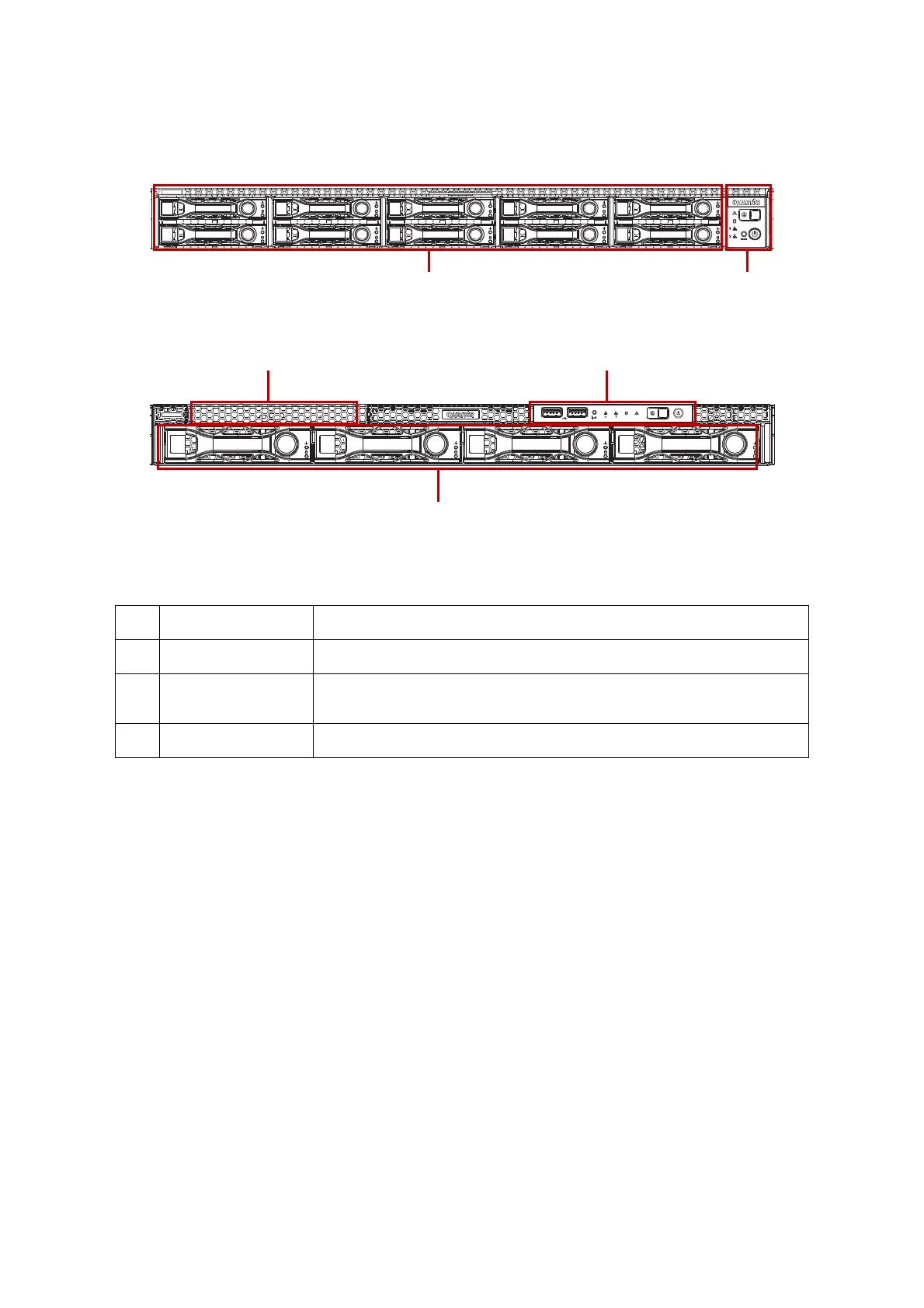

Figure 1-2. 2.5” System Front View
Figure 1-3. 3.5” System Front View
Table 3: Front Panel View
NO.NAME DESCRIPTION
1 Front control panel See Front Control Panel LED on page 1-9 for further information.
2 HDD bays
 3.5”: 4 x SAS/SATA HDD
 2.5”: 10 x SAS HDD
3 SSD assembly 2 x 2.5” solid state drive assemblies
