Installing the DXi6900 System in the Rack
Quantum DXi6900 Installation Guide 37

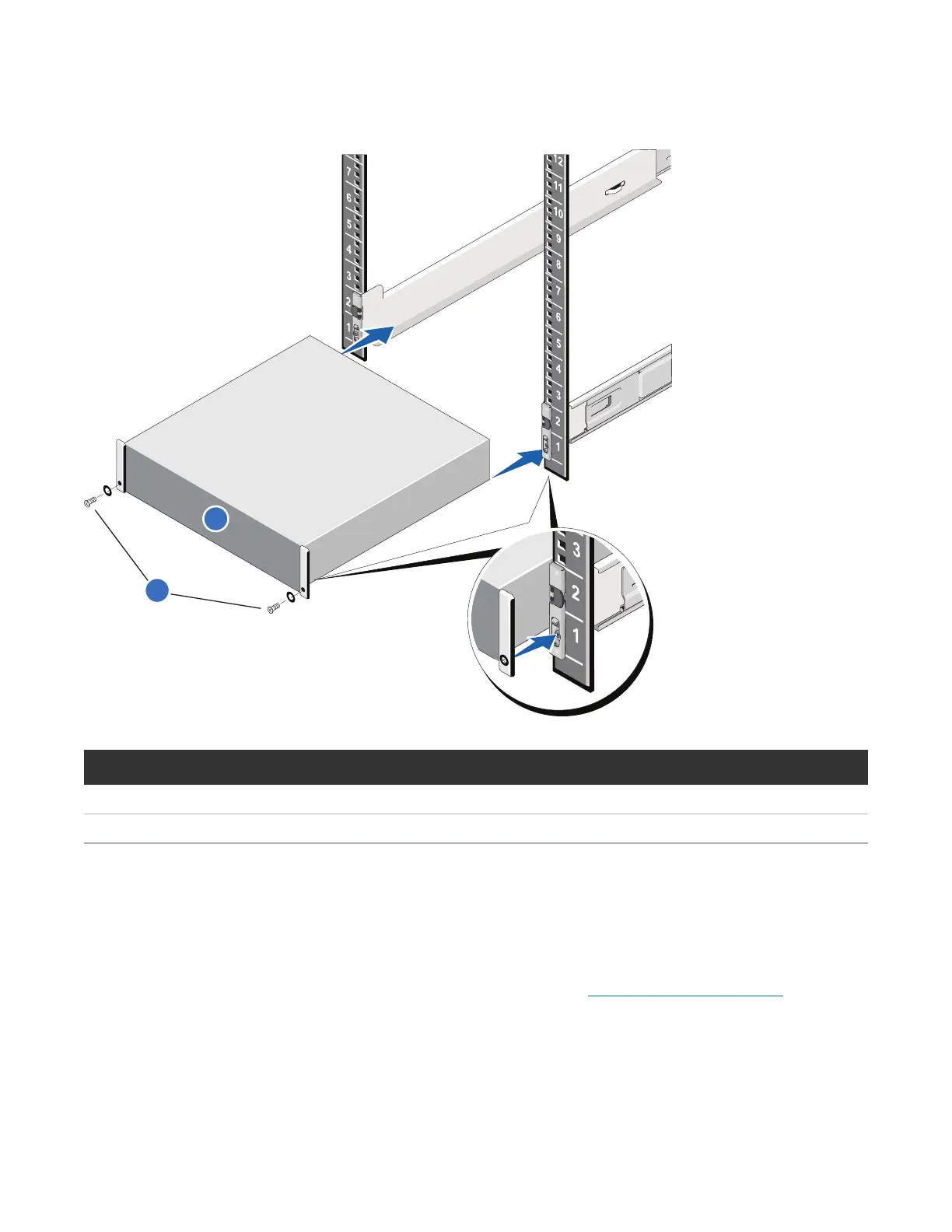

Figure 26: DXi6900 Array or Expansion Module Installation
Item Description
1 10-32 x 3/4 in. screw and nylon washer
2 Front of Array or Expansion Module
Installing the DXi6900 Node
Installing the DXi6900 Node Rack Mounting Rails
1. Position the left and right rail end pieces labeled FRONT facing inward, and orient each end piece to
seat in the holes on the front side of the vertical rack flanges (see Figure 27 on the next page).
2. Align each back end piece in the bottom and top holes of the desired U spaces.
3. Engage the back end of the rail until it fully seats on the vertical rack flange and the latch clicks into
place. Repeat these actions to position and seat the front end piece on the vertical rack flange.
