Quantum DXi6900

Installing the DXi6900 System in the Rack
Quantum DXi6900 Installation Guide 45

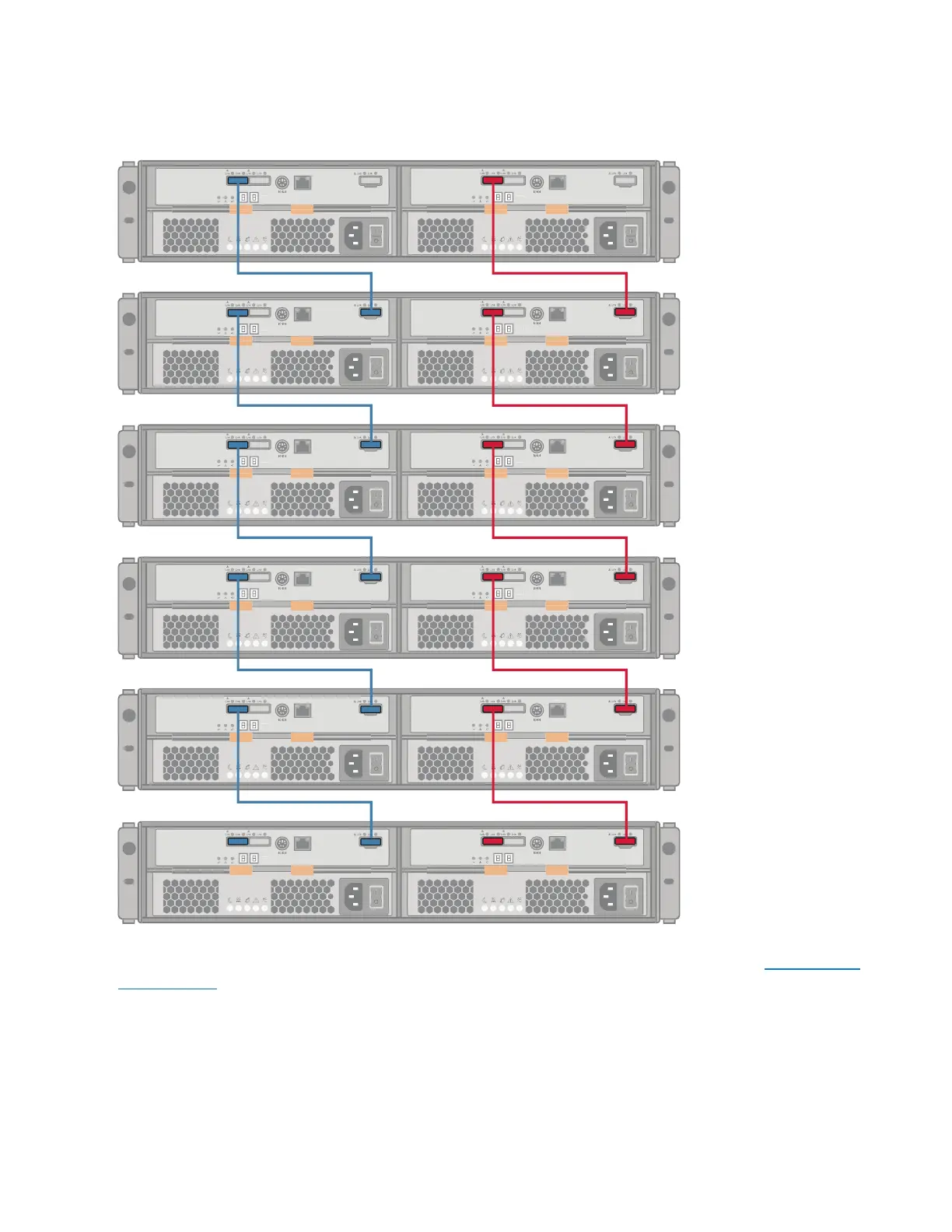

Figure 33: DXi6900 SAS Cabling (EBODs 2-1 through 2-6)
ID/Diag
Port 1
ID/Diag
Port 1
EBOD 2-6
EBOD 2-5
ID/Diag
Port 1
ID/Diag
Port 1
EBOD 2-3
EBOD 2-2
ID/Diag
Port 1
ID/Diag
Port 1
ID/Diag
Port 1
ID/Diag
Port 1
EBOD 2-4
EBOD 2-1
ID/Diag
Port 1
ID/Diag
Port 1
ID/Diag
Port 1
ID/Diag
Port 1
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
1A
1B
4. Connect each power supply to an AC power source using the provided power cable (see Figure 34 on
the next page):
