11

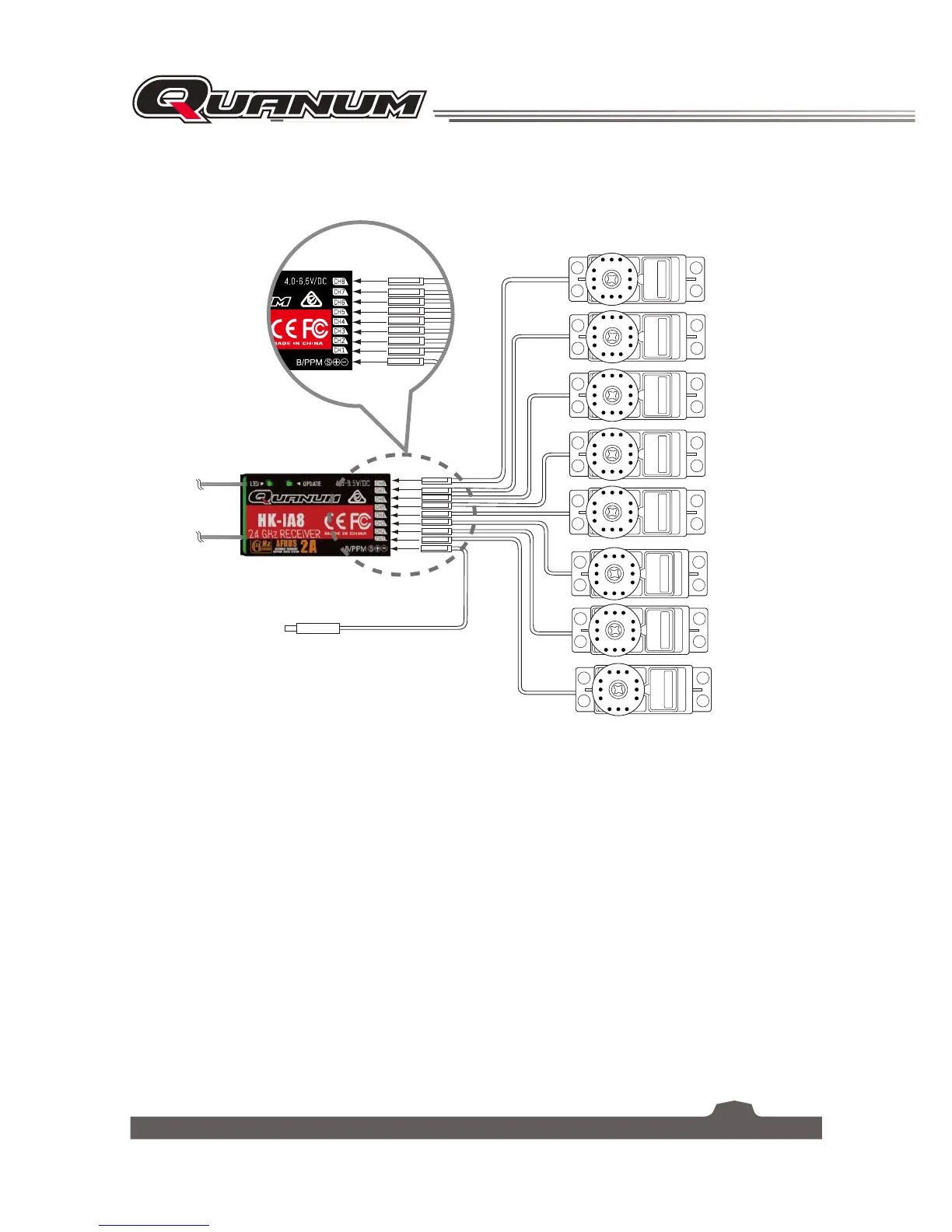

3.2 Connecting the Receiver and Servos
Connect the receiver and the servos as indicated below:
(CH1)
(CH2)
(CH3)
(CH4)
8KIKO\KX
(CH5)
(CH6)
(CH7)
(CH8)
<<
