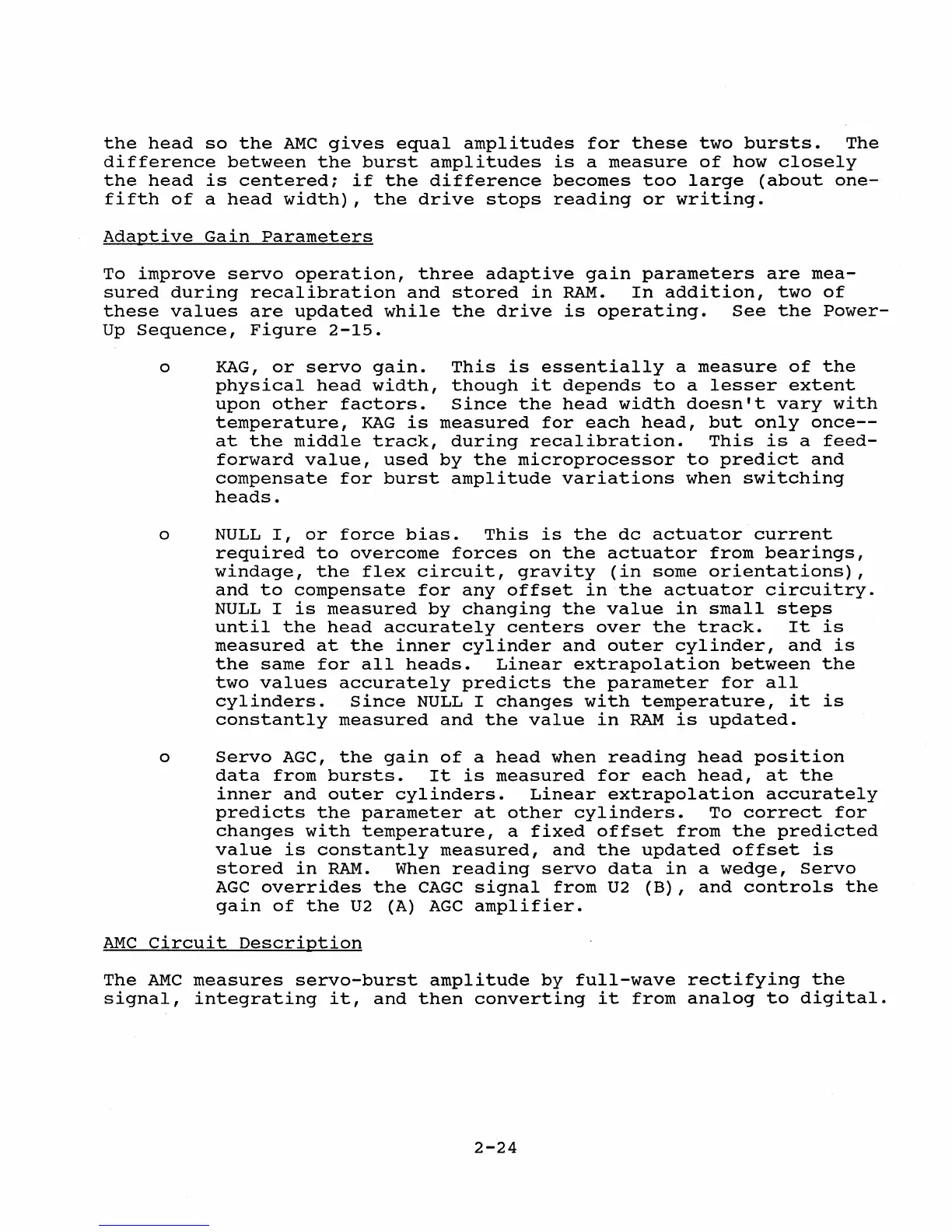

the
head
so
the
AMC
gives
equal
amplitudes
for
these
two
bursts.
The
difference
between
the
burst
amplitudes
is
a
measure
of
how
closely
the
head
is
centered;
if
the
difference
becomes
too
large
(about
one-
fifth
of
a
head
width),
the
drive
stops
reading
or
writing.
Adaptive
Gain
Parameters
To
improve
servo
operation,
three
adaptive
gain
parameters
are
mea-
sured
during
recalibration
and
stored
in
RAM.
In
addition,
two
of
these
values
are
updated
while
the
drive
is
operating.
See
the
Power-
Up
Sequence,
Figure
2-15.
o
KAG,
or
servo
gain.
This
is
essentially
a
measure
of
the
physical
head
width,
though
it
depends
to
a
lesser
extent
upon
other
factors.
Since
the
head
width
doesn't
vary
with
temperature,
KAG
is
measured
for
each
head,
but
only
once--
at
the
middle
track,
during
recalibration.
This
is
a
feed-
forward
value,
used
by
the
microprocessor
to
predict
and
compensate
for
burst
amplitude
variations
when
switching
heads.
o
NULL
I,
or
force
bias.
This
is
the
dc
actuator
current
required
to
overcome
forces
on
the
actuator
from
bearings,
windage,
the
flex
circuit,
gravity
(in
some
orientations),
and
to
compensate
for
any
offset
in
the
actuator
circuitry.
NULL
I
is
measured
by
changing
the
value
in
small
steps
until
the
head
accurately
centers
over
the
track.
It
is
measured
at
the
inner
cylinder
and
outer
cylinder,
and
is
the
same
for
all
heads.
Linear
extrapolation
between
the
two
values
accurately
predicts
the
parameter
for
all
cylinders.
Since
NULL
I
changes
with
temperature,
it
is
constantly
measured
and
the
value
in
RAM
is
updated.
o
Servo
AGC,
the
gain
of
a
head
when
reading
head
position
data
from
bursts.
It
is
measured
for
each
head,
at
the
inner
and
outer
cylinders.
Linear
extrapolation
accurately
predicts
the
parameter
at
other
cylinders.
To
correct
for
changes
with
temperature,
a
fixed
offset
from
the
predicted
value
is
constantly
measured,
and
the
updated
offset
is
stored
in
RAM.
When
reading
servo
data
in
a
wedge,
Servo
AGC
overrides
the
CAGC
signal
from
U2
(B),
and
controls
the
gain
of
the
U2
(A)
AGC
amplifier.
AMC
Circuit
Description
The
AMC
measures
servo-burst
amplitude
by
full-wave
rectifying
the
signal,
integrating
it,
and
then
converting
it
from
analog
to
digital.
2-24
