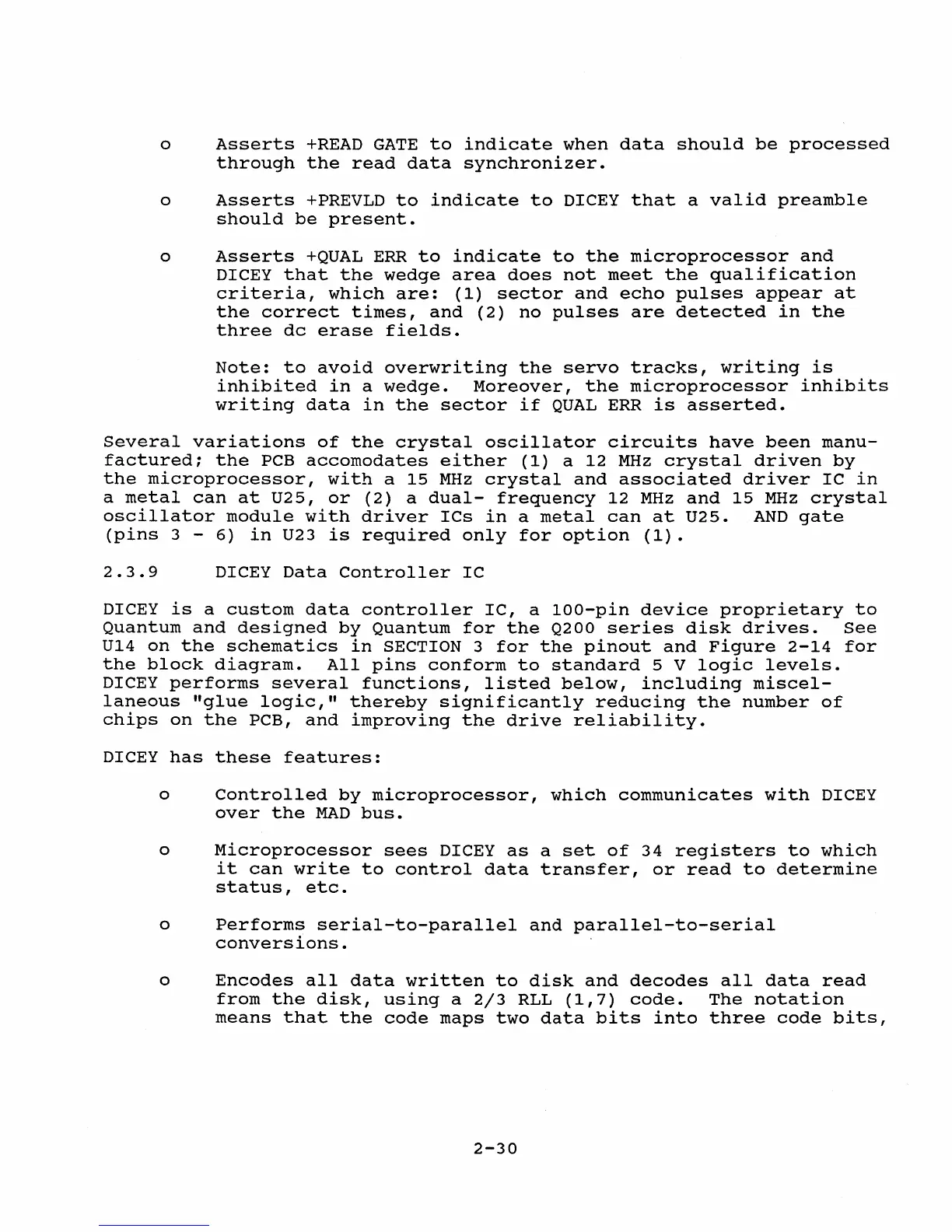

o
Asserts
+READ
GATE
to
indicate
when
data
should
be
processed
through
the
read
data
synchronizer.
o
Asserts
+PREVLD
to
indicate
to
DICEY
that
a
valid
preamble
should
be
present.
o
Asserts
+QUAL
ERR
to
indicate
to
the
microprocessor
and
DICEY
that
the
wedge
area
does
not
meet
the
qualification
criteria,
which
are:
(1)
sector
and
echo
pulses
appear
at
the
correct
times,
and
(2)
no
pulses
are
detected
in
the
three
dc
erase
fields.
Note:
to
avoid
overwriting
the
servo
tracks,
writing
is
inhibited
in
a
wedge.
Moreover,
the
microprocessor
inhibits
writing
data
in
the
sector
if
QUAL
ERR
is
asserted.
Several
variations
of
the
crystal
oscillator
circuits
have
been
manu-
factured;
the
PCB
accomodates
either
(1)
a
12
MHz
crystal
driven
by
the
microprocessor,
with
a
15
MHz
crystal
and
associated
driver
IC
in
a
metal
can
at
U25,
or
(2)
a
dual-
frequency
12
MHz
and
15
MHz
crystal
oscillator
module
with
driver
ICs
in
a
metal
can
at
U25.
AND
gate
(pins
3 -
6)
in
U23
is
required
only
for
option
(1).
2.3.9
DICEY
Data
Controller
IC
DICEY
is
a
custom
data
controller
IC,
a
100-pin
device
proprietary
to
Quantum
and
designed
by
Quantum
for
the
Q200
series
disk
drives.
See
U14
on
the
schematics
in
SECTION 3
for
the
pinout
and
Figure
2-14
for
the
block
diagram.
All
pins
conform
to
standard
5 V
logic
levels.
DICEY
performs
several
functions,
listed
below,
including
miscel-
laneous
"glue
logic,"
thereby
significantly
reducing
the
number
of
chips
on
the
PCB,
and
improving
the
drive
reliability.
DICEY
has
these
features:
o
Controlled
by
microprocessor,
which
communicates
with
DICEY
over
the
MAD
bus.
o
Microprocessor
sees
DICEY
as
a
set
of
34
registers
to
which
it
can
write
to
control
data
transfer,
or
read
to
determine
status,
etc.
o
Performs
serial-to-parallel
and
parallel-to-serial
conversions.
o
Encodes
all
data
written
to
disk
and
decodes
all
data
read
from
the
disk,
using
a
2/3
RLL
(1,7)
code.
The
notation
means
that
the
code
maps
two
data
bits
into
three
code
bits,
2-30
