16 Introduction

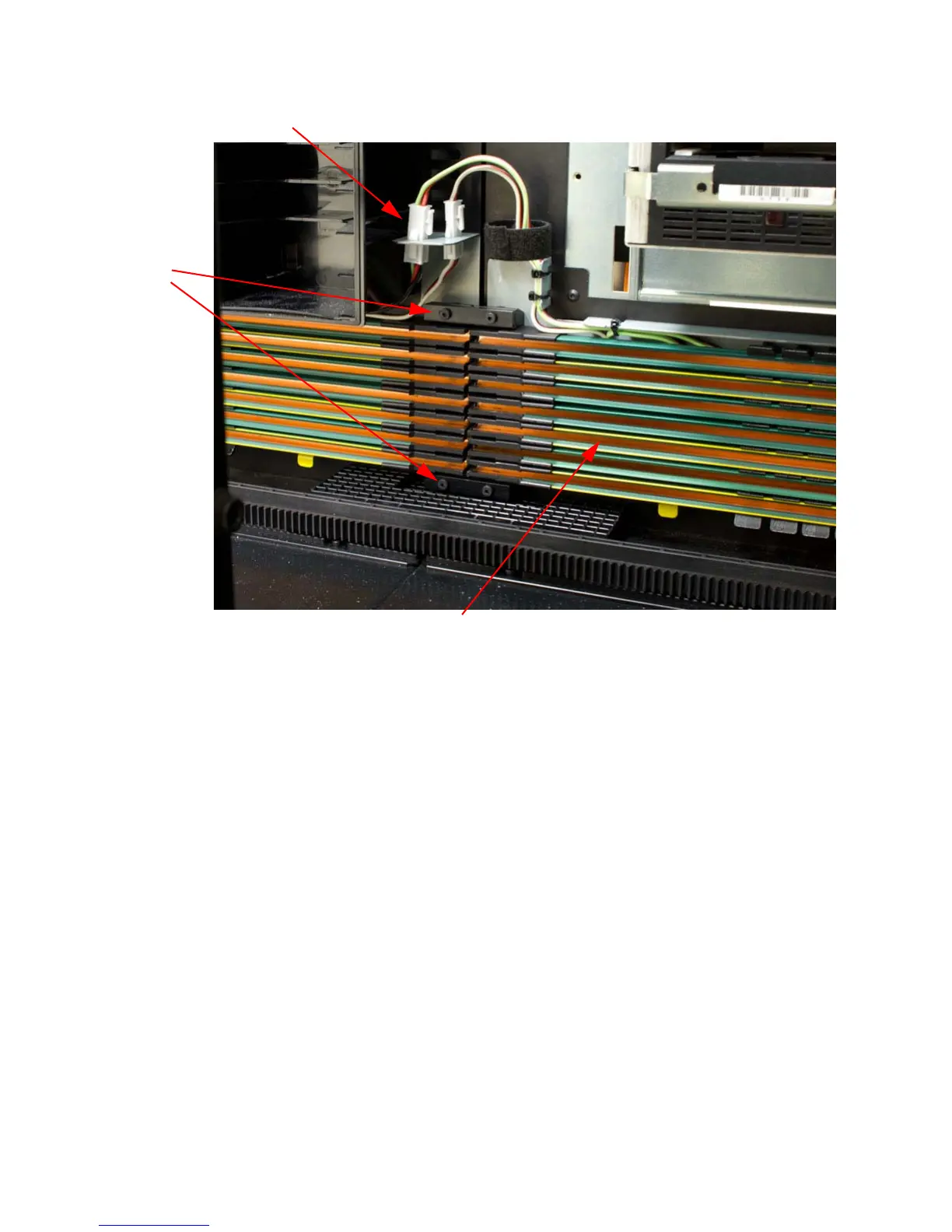

Figure 3 Power Rails and Bridge Clamps
Installing the Catch Trays
Catch trays are installed on the floor of the library. Each tray straddles the junction between modules.
Training Note: These trays are to catch the carbon that wears off the collectors as they pass over
the gap between the power rail bridges. Please refer to the material as "stuff," not "debris" when
you're speaking to a customer.
Tools required: 2.5 mm hex wrench
Equipment required:
• Catch tray
• Screw B, M4X6 socket head cap screws (low profile) with attached M4 T-nut — 2 per catch tray
Bridge
Clamps
Power Rails
Power Rail Connectors
