Quantum Scalar i6000 Replacement

Quantum Scalar i6000: Drive Replacement
6-67999-01 Rev A
October 2013
6 Remove and Replace the Drive
c Click Yes.
d Go to the rear of the module containing the drive to be replaced, open
the back door, locate the drive using the coordinates from the ticket and
observe the blue LED on the rear of the drive. When the blue LED stops
blinking and remains constantly lit, you can continue.

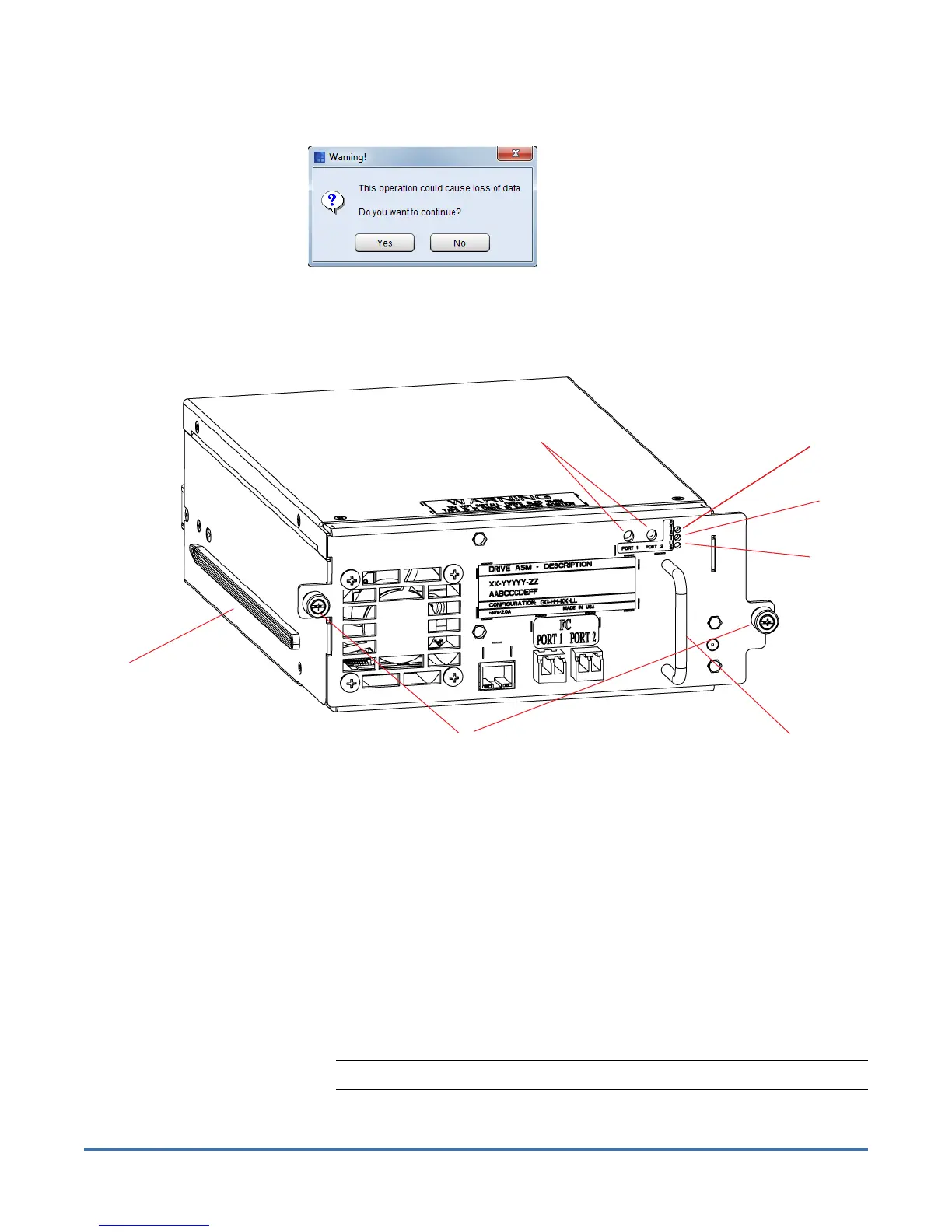

Guide Rail
Thumbscrews
Blue LED
Green Port LED 1
Amber LED
Green LED 2
Drive Handle
9 Disconnect all cables from the drive. Note which cables go to which
connections for reference during drive replacement.
10 Loosen the two thumbscrews on the drive.
11 Grip the drive handle and pull the drive toward you to remove it.
12 Use the guide rails on the replacement drive to slowly slide it in until flush.
13 Tighten the two thumbscrews.
14 Reconnect the cables.
15 Confirm the following status LEDs:
a Blue LED light on the back of the drive is constantly lit
b Green LED 2 light on the back of the drive is blinking slowly and in
cadence with the LEDs on the other drives
Note: The LEDs should take less than 5 minutes to get to this state.
