Menu-page 5 (MIDI-Synchronisation):
Menu-page 6-11 (Send- and Receive-Functions):
Page 5 of the System-menu contains a parameter which can also be set on the front panel of the
Sirius. Here you have 3 settings to choose from:
In the first setting 'INT' (factory setting), the Sirius creates its own sequencer tempo with its own
clock.
In the position 'EXT' the Sirius can be synchronised to an external MIDI-clock. The setting 'AUD'
makes the Sirius ready to be synchronised with an audio-signal (Beat-Reconition-System). To activate
the Synchronisation parameter you will not have to open the System-menu because there is a key for
these 3 functions on the front panel of the Sirius. This key is marked SYNC.EXTERN/AUDIO.SYNC. If
this key is not lit it means you are in the 'INT' mode. If the key is lit, the Sirius is in the 'EXT' mode. If
the key is blinking the Beat-Recoginition-System is activated. This is the 'AUD' mode.
The Parameters on the following 6 menu pages are Send and Receive filters for certain MIDI-data
types. There you can determine if a particular data type is to leave the Sirius through the MIDI-Out
socket or to reach it via the MIDI-In socket. The abbreviations RX and TX stand for Receive and
Transmit respectively.
Edit System/Midi
<5> MidiSync:INT
Edit System/Midi
<5> MidiSync:EXT
Edit System/Midi
<5> MidiSync:AUD

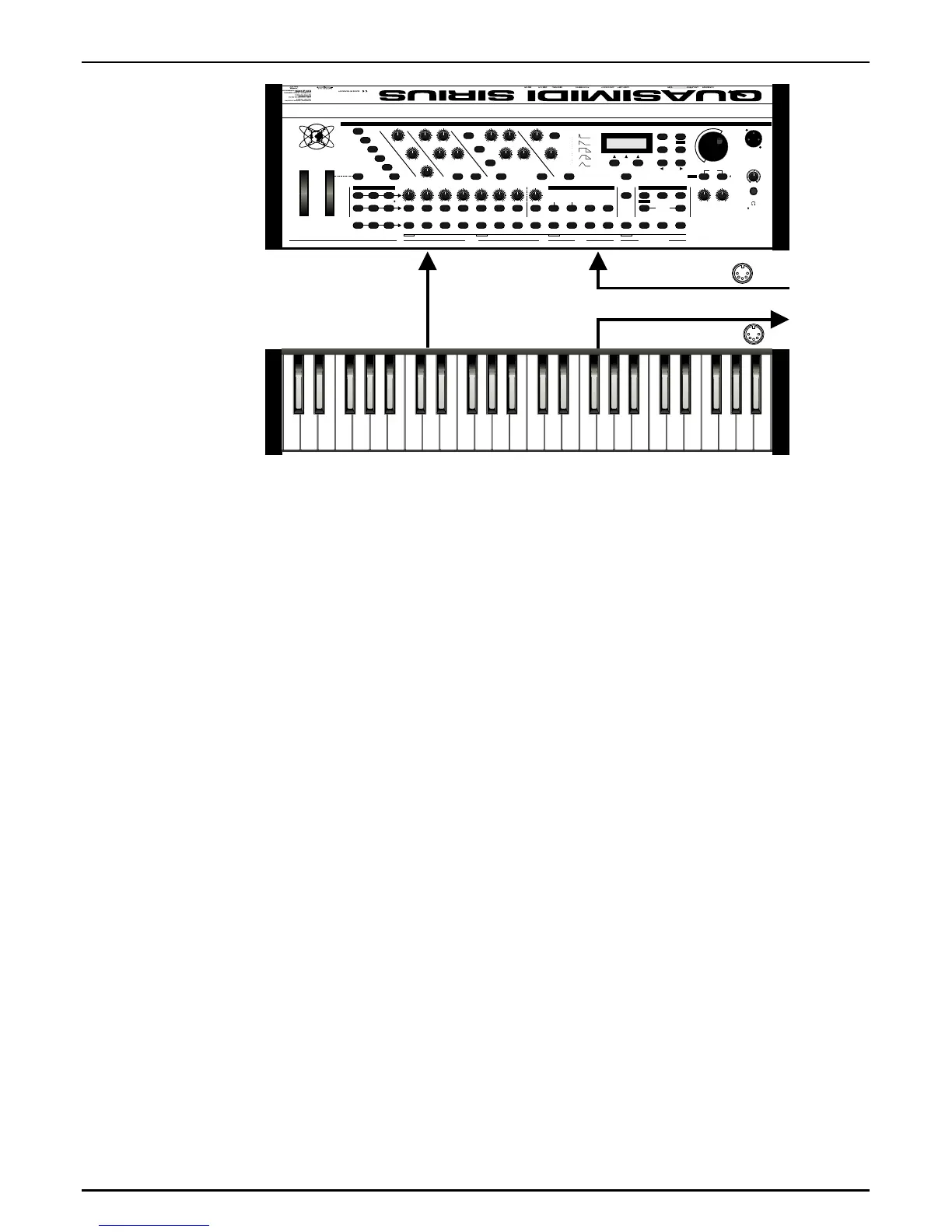

The Local-OFF-function of
the Sirius in a schematic
diagram
