Quattroflow 1200S - Replacement of Diaphragm, Valves and O-Rings; Disassembly of the Pump Chamber

QF1200S; edition 2016-05; page 14 of 24
4.1. Replacement of diaphragm, valves and o-rings
The replacement of the diaphragm and the valves can be conducted by the operator. The following

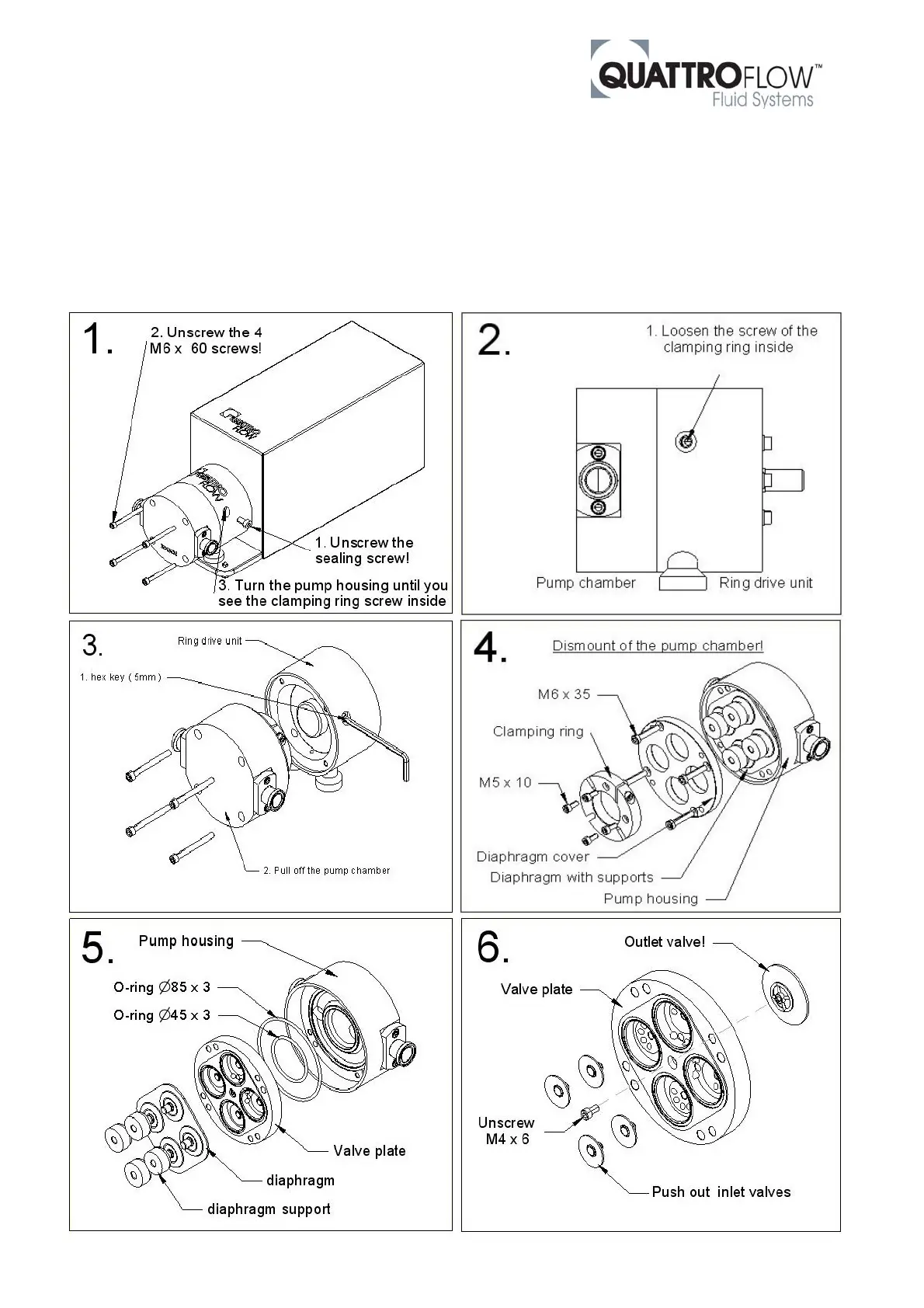

drawings describe it step-by-step (maintenance kit PSKITQF12MU).
In case of bursting diaphragms by overpressure we advice also to change the bearing unit
(PSKITWLC123 or PSKITWLC125 resp. PSKITWLC125-CV for the CV compact model, see chapter
4.2.).
4.1.1. Disassembly of the pump chamber
