Quattroflow 1200S - 6 Performance Charts of the QF 1200 S; Performance Standard Version

QF1200S; edition 2016-05; page 20 of 24
6. Performance charts of the QF 1200S
Testmedia: Water at ambient temperature
Type of eccentric shaft: 3° resp. 5°
Discharge pressure: 0 to 6 bar (0 to 87 psi)
Shows approximate flow rates as function of pump rpm.
Please note:
If motor is directly coupled to pump: Pump rpm = motor rpm
If reducer gear drives are used: Pump rpm = motor rpm x reduction ratio

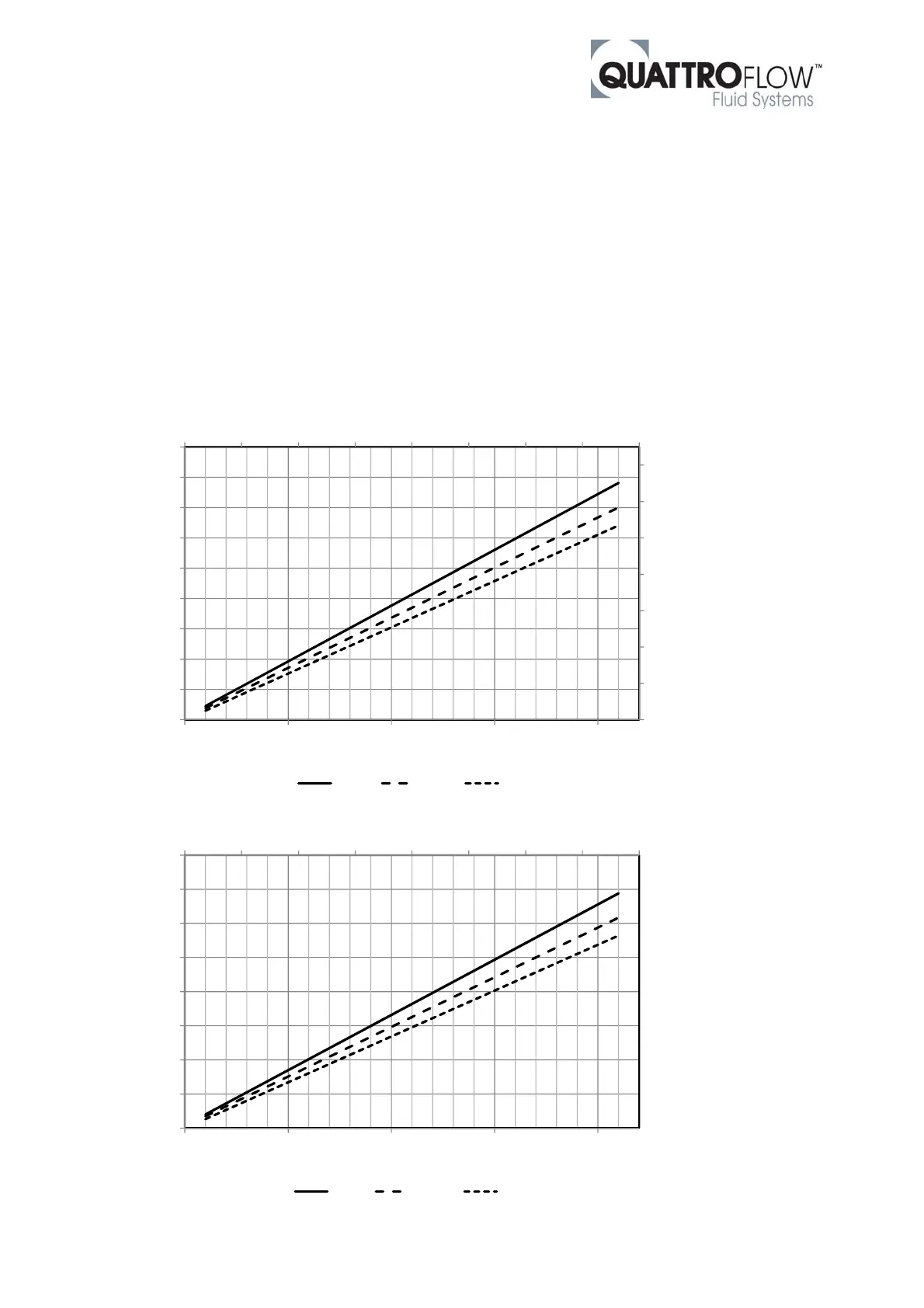

6.1. Performance standard version
Eccentric shaft: 3°
0 1020304050607080
0
2
4
6
8
10
12
14
0
100
200
300
400
500
600
700
800
900
0 500 1000 1500 2000
FrequencyMotor[Hz]
Flowrate[L/min]
Flowrate[L/h]
Pumpspeed[RPM]
0bar 3bar 6bar
0 1020304050607080
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
0 500 1000 1500 2000
FrequencyMotor[Hz]
Flowrate[USGPM]
Pumpspeed[RPM]
0psi 43psi 87psi
