Quattroflow 1200S - Compact Models with Integrated Controller; CV Compact Model (230 V)

QF1200S; edition 2016-05; page 6 of 24
2.4. Compact models with integrated controller
Quattroflow 1200S pumps can be delivered without or with separate control box. In addition there are
compact models (code CV resp. HT) with integrated controller available.
2.4.1. CV – Compact model (230V)
The compact model CV (with 230V motor only) is equipped with a 5° eccentric shaft and achieves a
flow rate of 10 – 1200 l/h (2.64 – 317 gph).

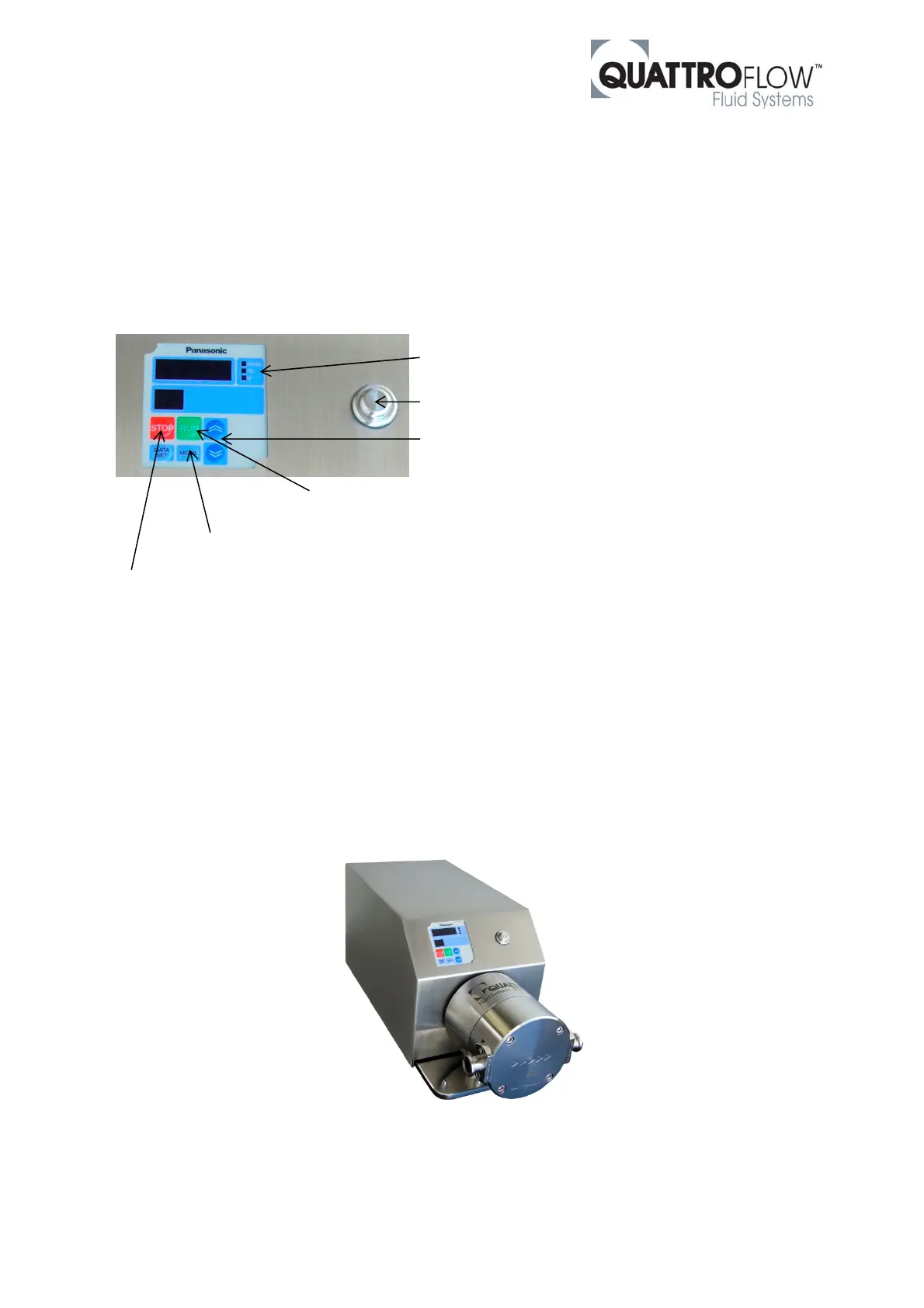

Operation of a QF1200S-CV via the control panel:
Display show: "rpm, %, V"
(max. speed 2.200 rpm)
Main switch. Push to start – the panel lights up.
Push to speed up (arrow bottom-up) or to speed
down (arrow top down)
Push "Green button" RUN, to start the pump
“MOD button“: Switch between rpm, effiency %, motor power V
Push the "Red button" STOP to stop the pump
Attention: The optimal motor parameter are set by the factory.
Only authorized and qualified personnel should change the parameter of the control panel!
Attention!
Pay attention to the operating instructions of the PANASONIC–Motor!
QF1200S-CV Pump
Motor: Panasonic, 750 W, 230V
Speed control: Panasonic Digital Control Panel
