QF1200S; edition 2016-05; page 16 of 24
4.2. Replacement bearing unit
Maintenance kit PSKITWLC123 (3° eccentric shaft) or
Maintenance kit PSKITWLC125 (5° eccentric shaft) for QF1200S and QF1200S-HT or
Maintenance kit PSKITWLC125-CV (QF1200S-CV)
The replacement of the bearing unit can be conducted by the operator. The following drawings
describe it step-by-step.

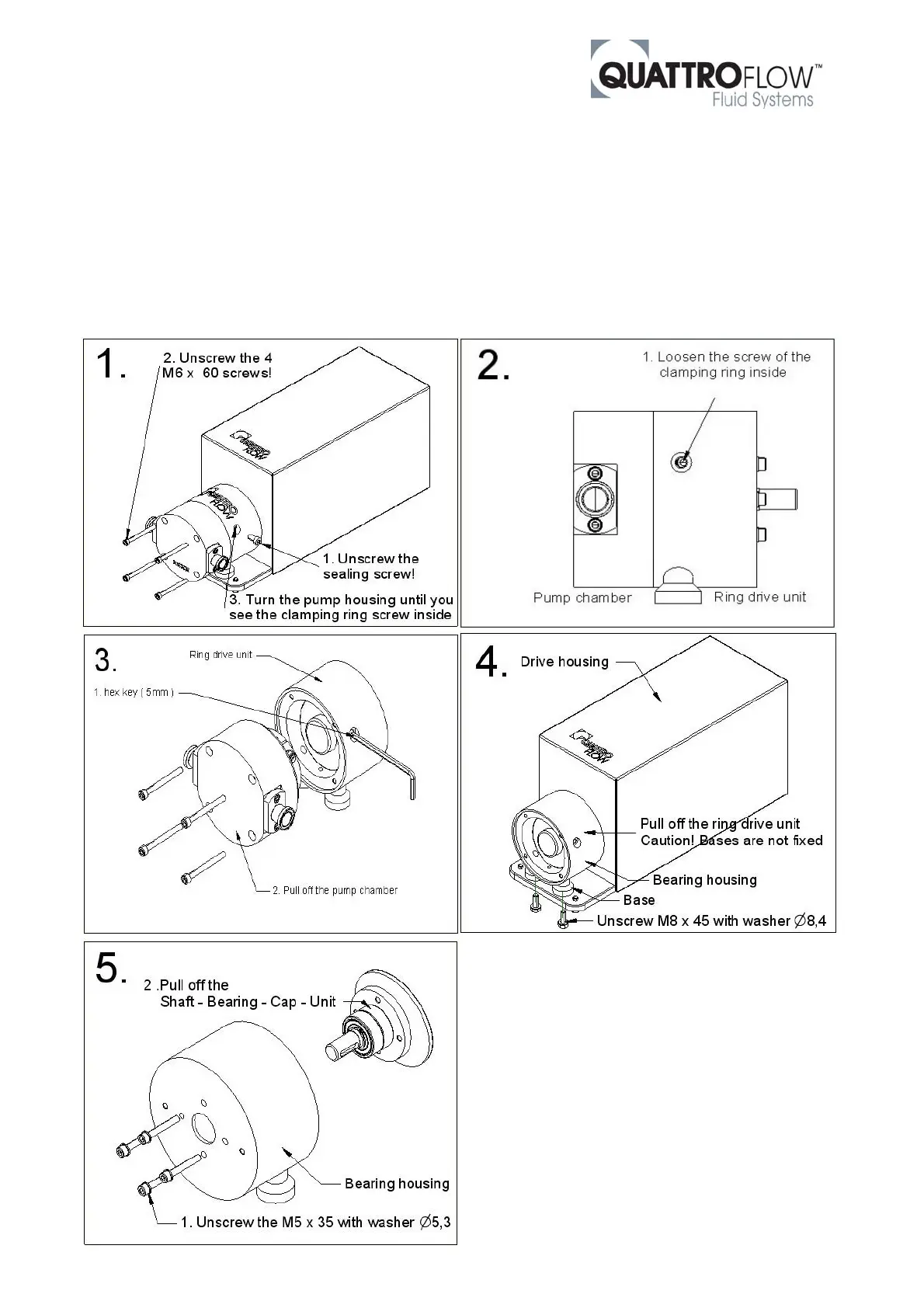

4.2.1. Disassembly of the ring drive unit
