QUBINO Smart meter User Manual

EN.
13

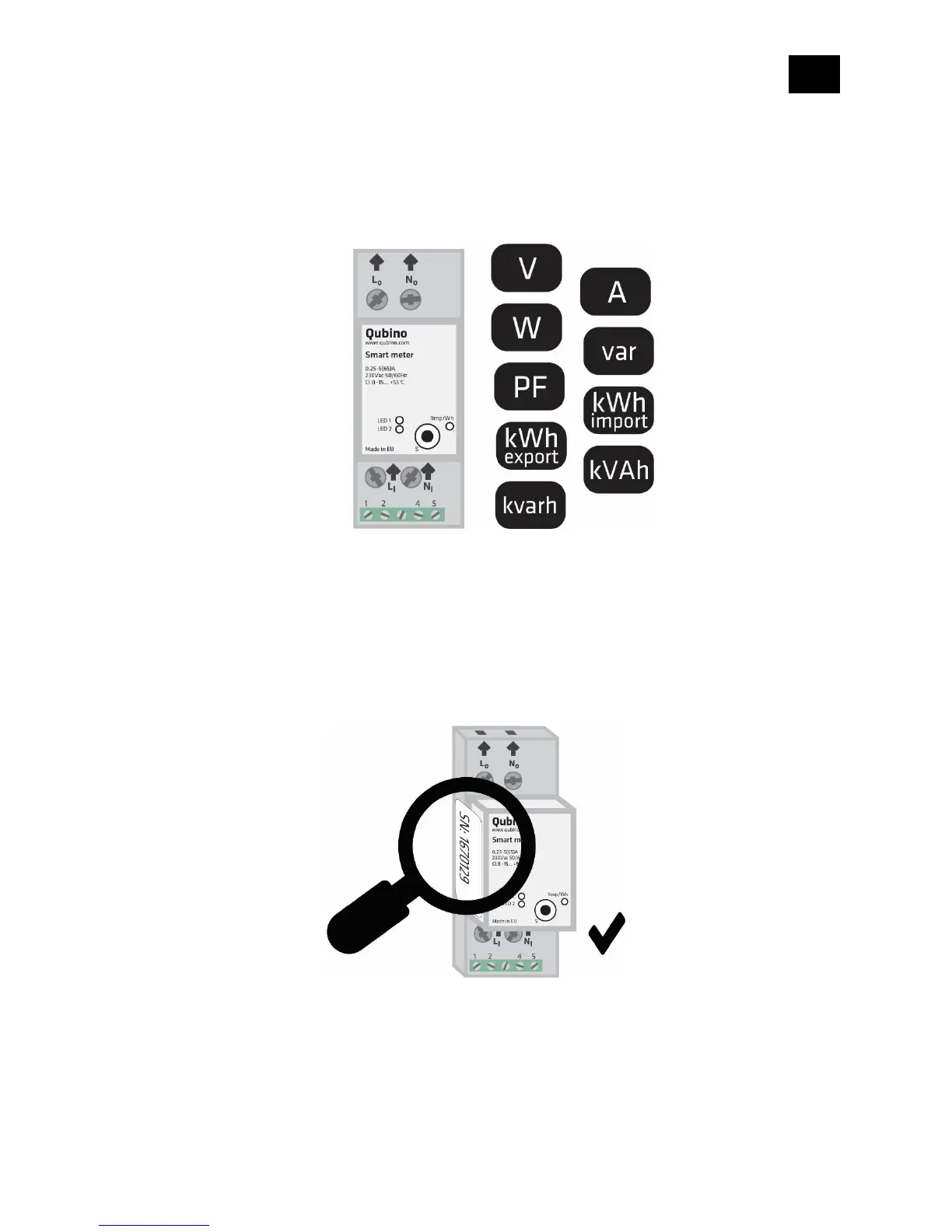

 The Qubino Smart Meter can measure: Voltage [V], Current [A], Power – Active [W],
Power – Reactive [kvar], Power Factor – [PF], Energy – Active power accumulated
Import [kWh], Energy – Active power accumulated Export [kWh], Energy – Apparent
power accumulated [kVAh], Energy – Reactive power accumulated [kvarh]
 Qubino guarantees 100% device quality. Such high quality can be delivered because
every Qubino goes through rigorous quality control standards throughout the
production process. Every device has a unique serial number and part number, which
are assigned to the device only after it goes through a strict testing procedure.

QUBINO Smart meter Specifications

General

Communication Protocol	Z-Wave
Weight	150 g
Rated Current	65 A
Accuracy	Class 1
Frequency	50/60 Hz
Radio Protocol	Z-Wave
Power Consumption	< 1 W
Z-Wave Frequency	868.42 MHz (EU)
Range	Up to 30 m indoors
Operating Temperature	-10°C to +40°C
