Quectel 5G Module Series - Product Overview; Top and Bottom Views

5G Module Series
5G-REDCAP_EVB_User_Guide 10 /
46
2 Product Overview
2.1. Top and Bottom Views
The size of 5G-REDCAP EVB is 168 mm × 146 mm, and the top and bottom views are shown as below:

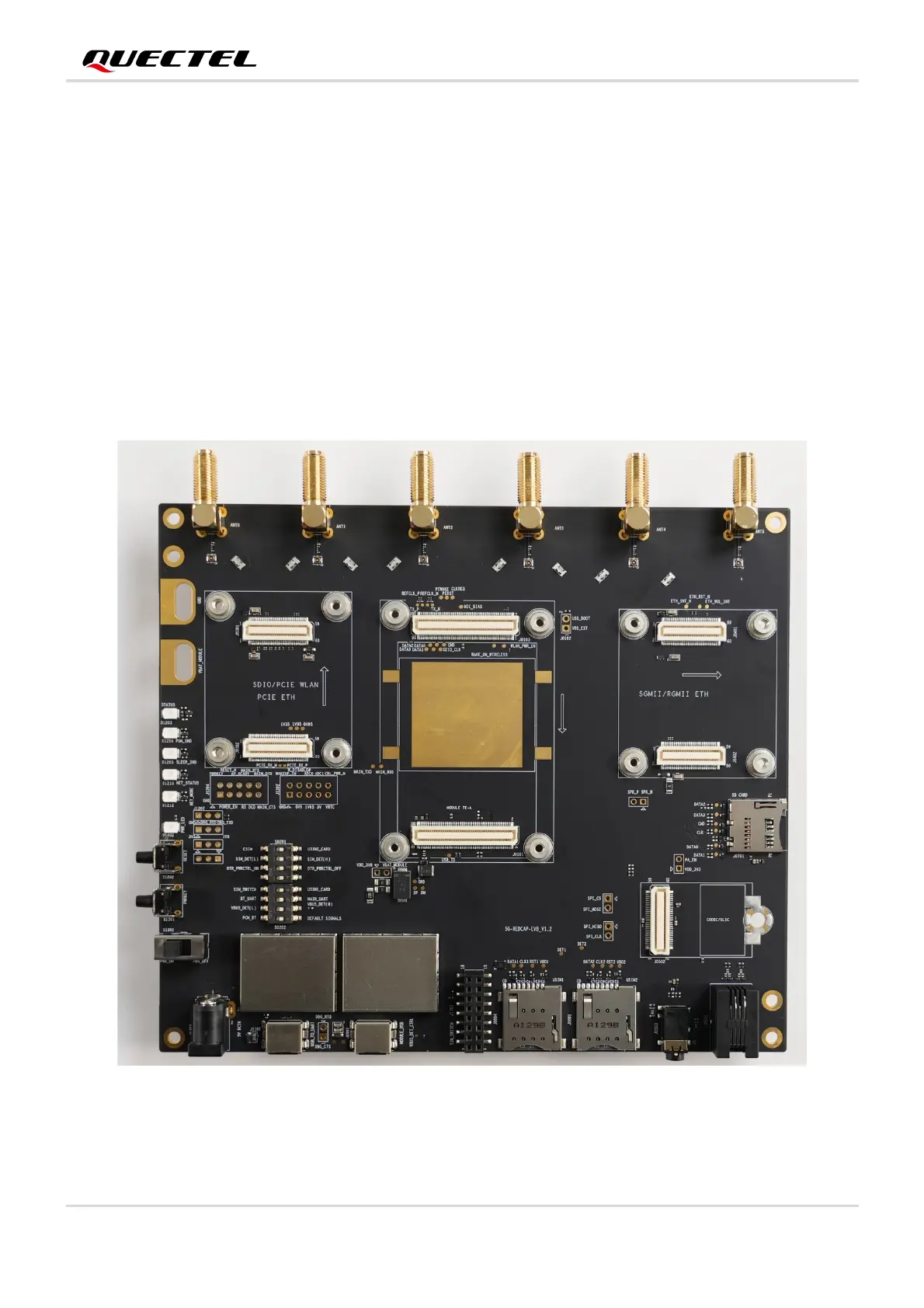

Figure 1: Top View
