3.4.1.3. Handset Application
Audio interface J0501 is designed for handsets. A reference circuit design for handset interfaces J0501 is
shown below.

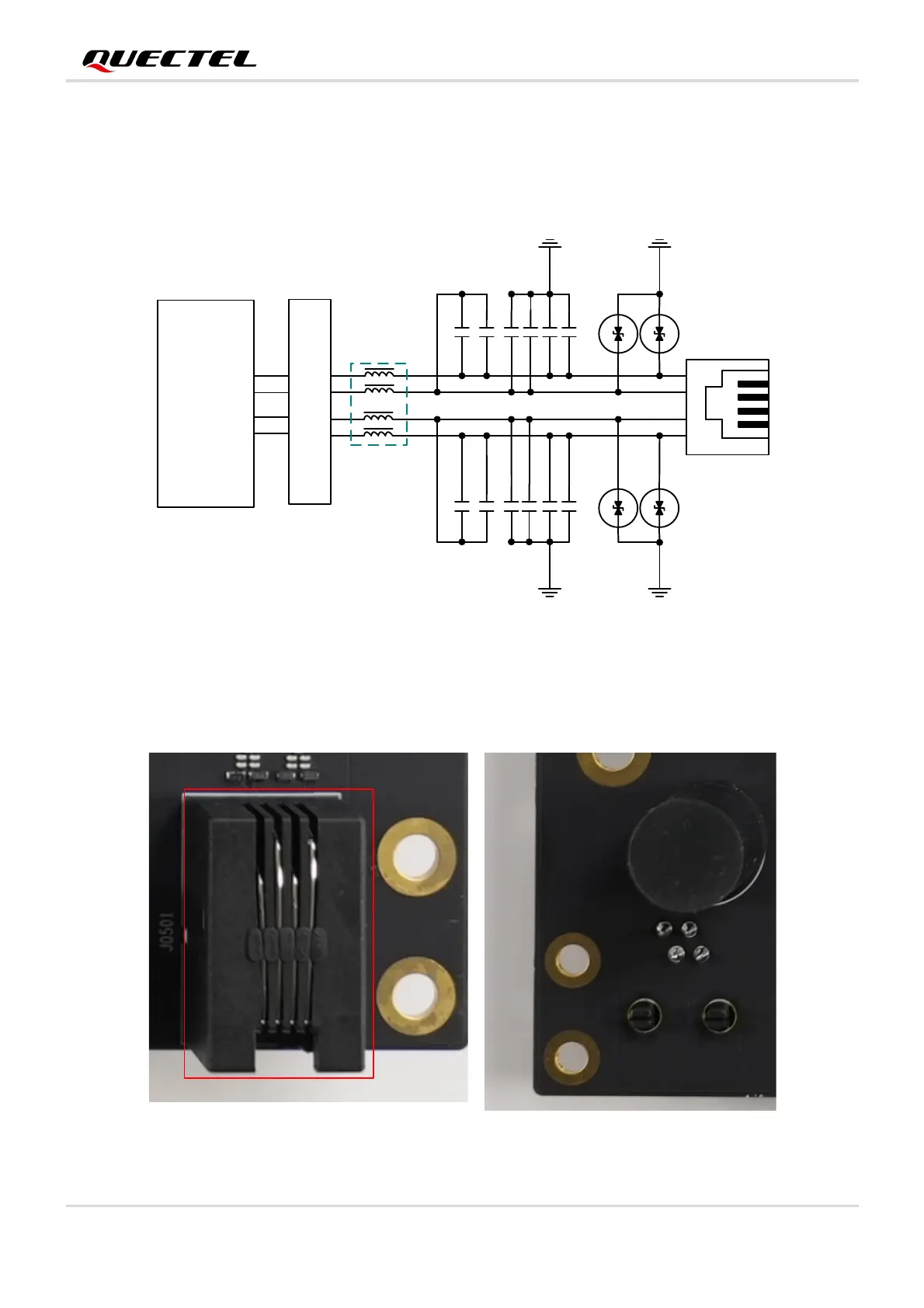

Figure 17: Reference Circuit Design for Handset Interface J0501
The figure and table below illustrate the pin assignment and pin definition of handset interface J0501.
Figure 18: Pin Assignments of J0501
