5G Module Series
5G-REDCAP_EVB_User_Guide 29 /
46
3.7. SLIC TE-A Interface
The EVB provides one SLIC TE-A interface.
Table 14: Description of SLIC TE-A Interface

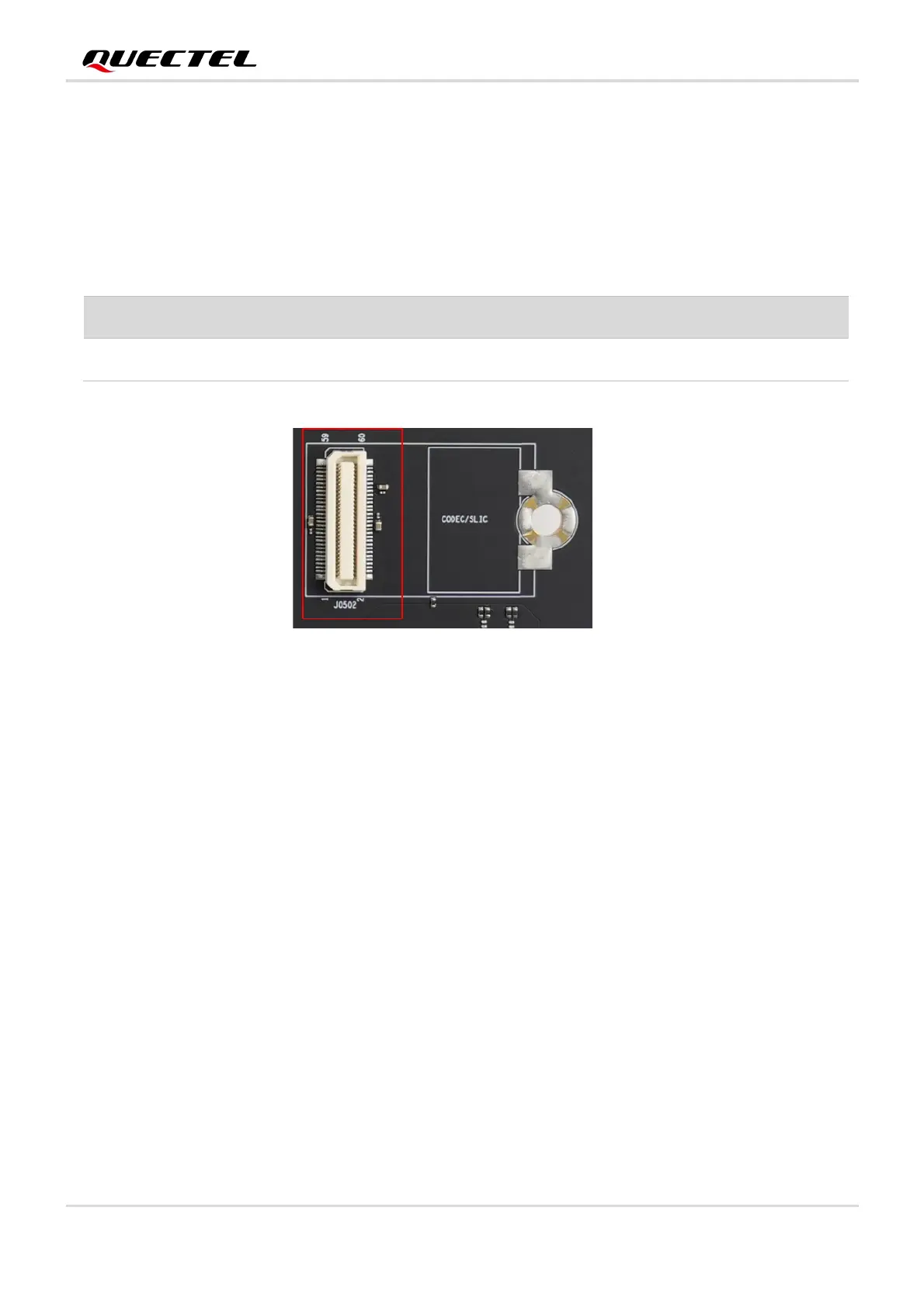

Figure 22: SLIC TE-A Interface of the EVB
SLIC TE-A
J0502
RefDes.
Description
J0502
SLIC board TE-A connector
