Quectel EC200T Series User Manual

LTE Standard Module Series
EC200T Series Hardware Design
EC200T_Series_Hardware_Design 65 / 90
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.

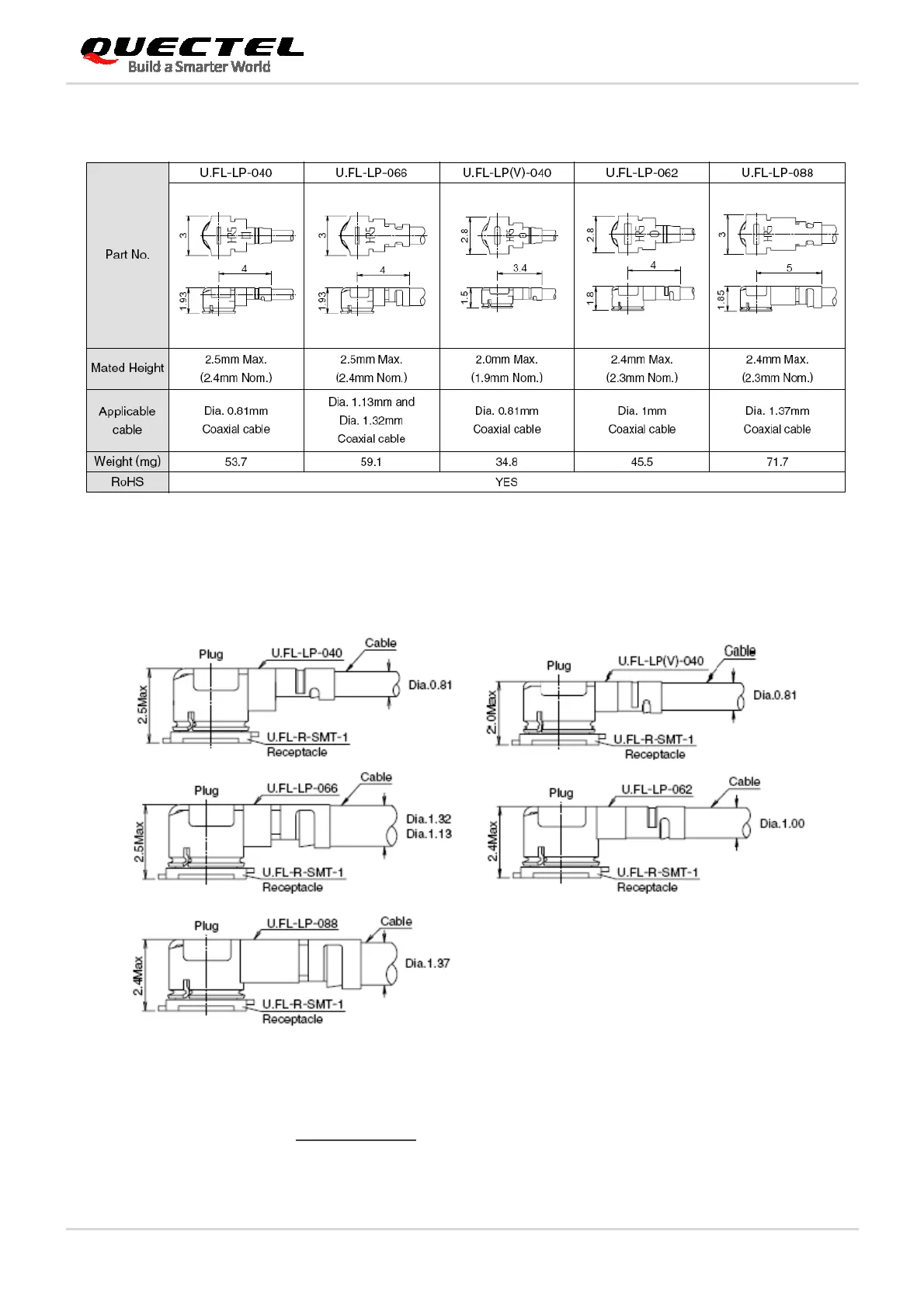

Figure 34: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
Figure 35: Space Factor of Mated Connector (Unit: mm)
For more details, please visit http://hirose.com
.
