GNSS Module Series
LC86L EVB User Guide
LC86L_EVB_User_Guide 11 /22
3 Interface Applications
3.1. Micro-USB Interface
Micro-USB connector is used for EVB power supply as well as data transmission.

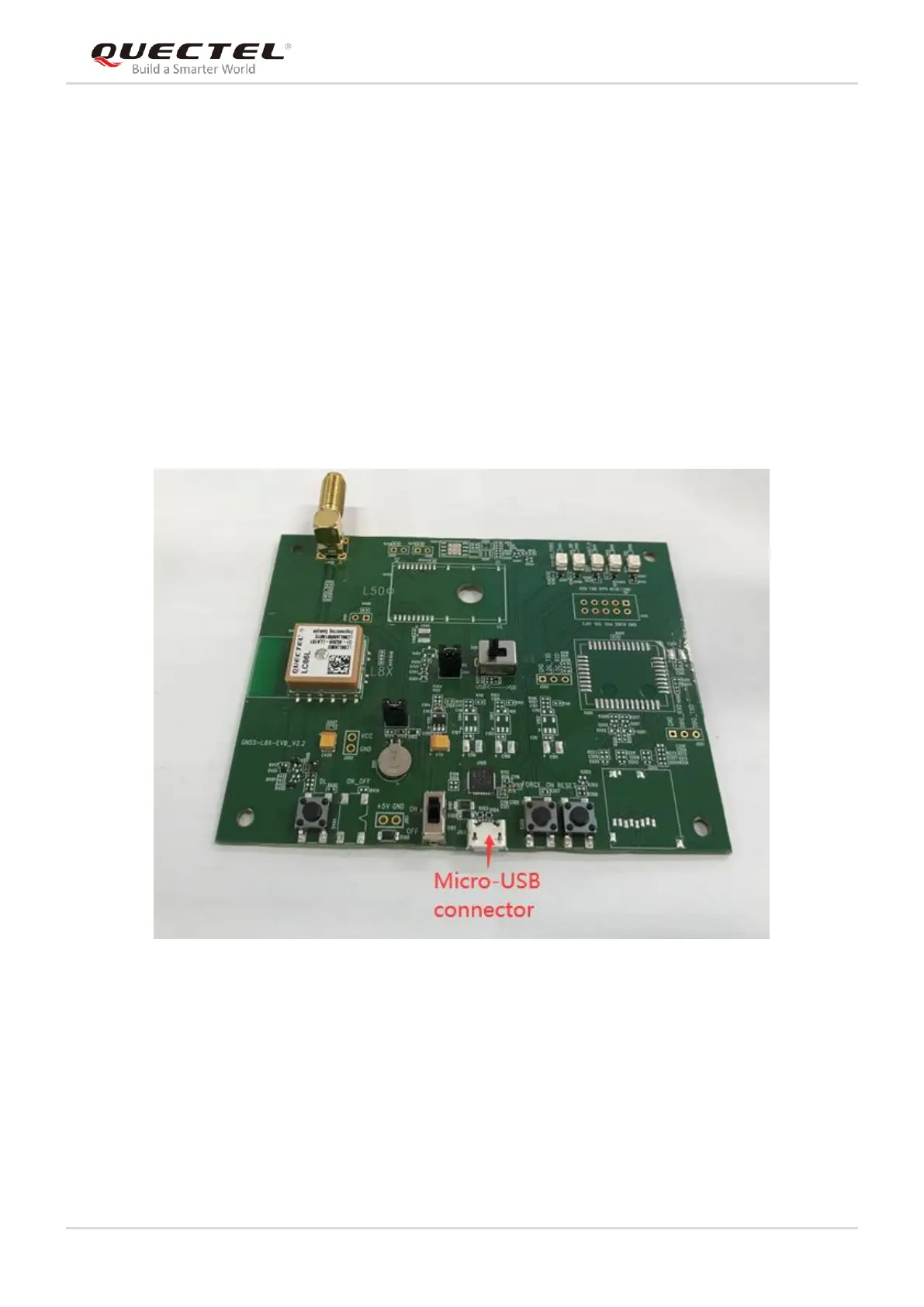

Figure 4: Micro-USB Connector
