GNSS Module Series
LC86L EVB User Guide
LC86L_EVB_User_Guide 12 /22
3.2. Antenna Interface
The antenna connector is used to connect an external passive or active GNSS antenna.

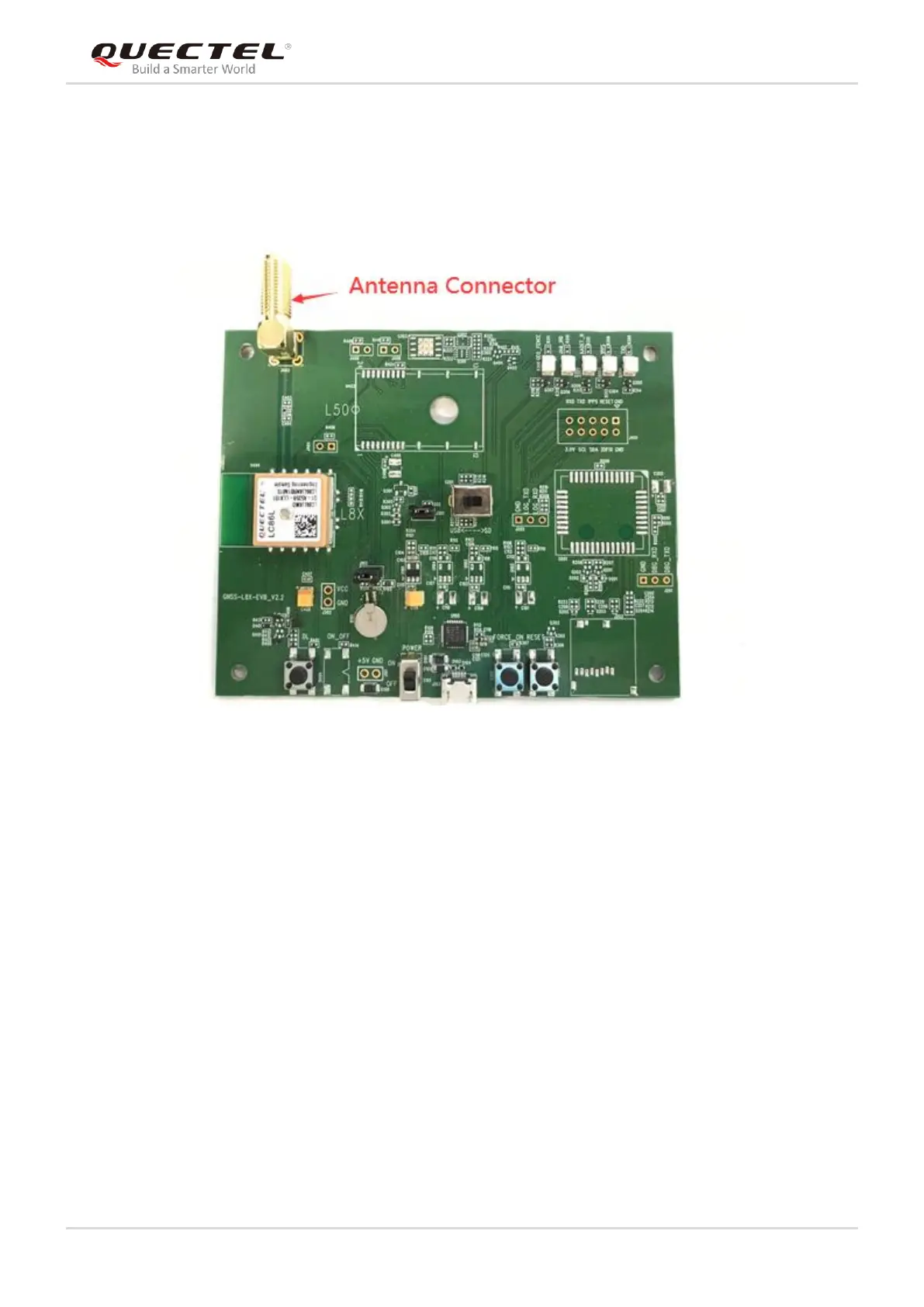

Figure 5: Antenna Connector
3.3. Switches and Buttons
The following figure illustrates the switches and buttons of the EVB.
