GNSS Module Series
LC86L EVB User Guide
LC86L_EVB_User_Guide 13 /22

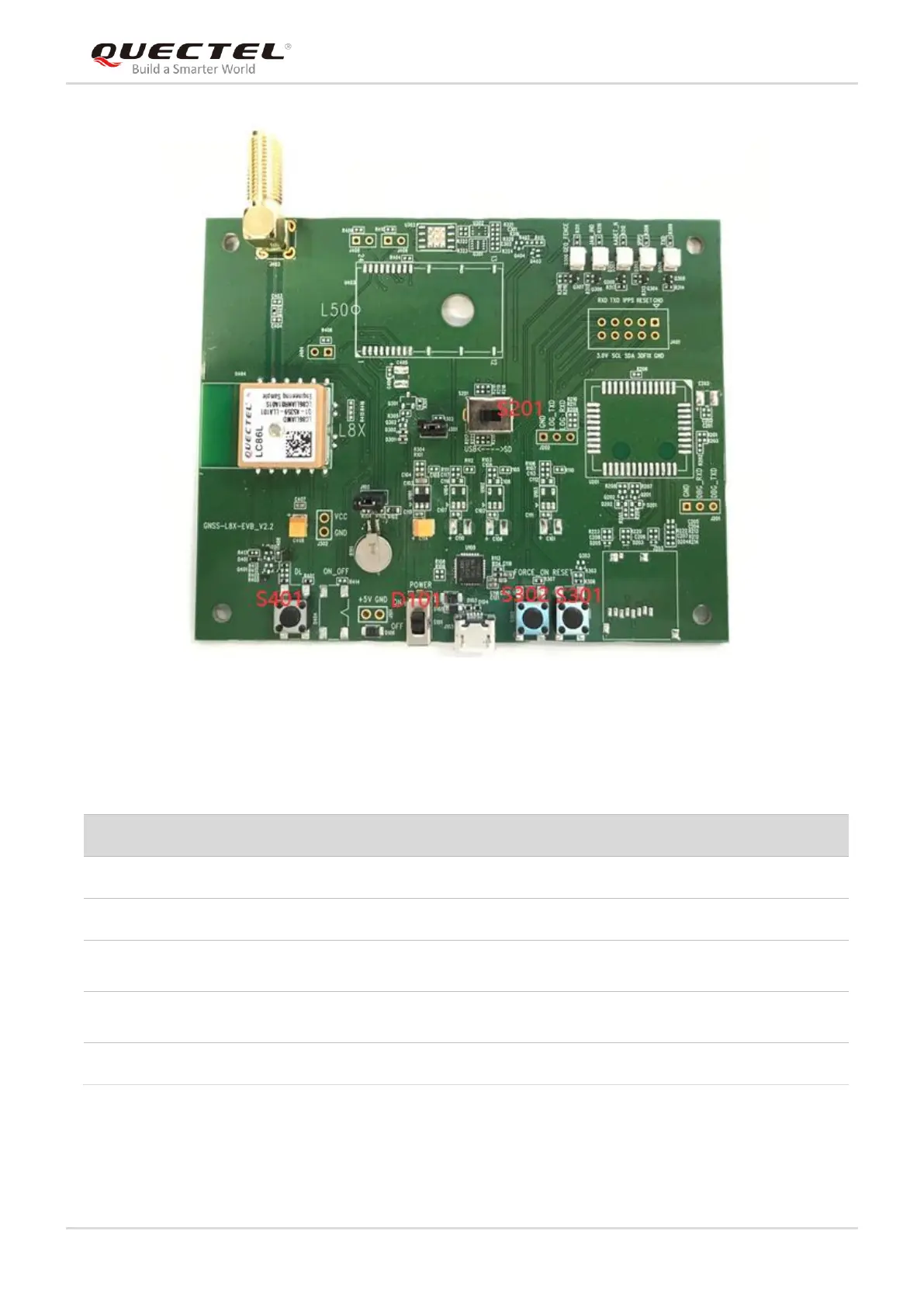

Figure 6: Switches and Buttons
Table 3: Switches and Buttons
Part No.
Name
I/O
Description
D101
POWER
PI
Power switch
S201
USB/SD switch
DI
LC86L for data transmission via USB
S301
RESET
DI
The module will be reset through pressing and then
releasing the button.
S302
FORCE_ON
DI
In Backup mode, press this button, the module will
be woken up
S401
BOOT
DI
Unused
